Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K1136757RELAY 31-311-12-S |
2,444 |
|
Datasheet |
31, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | SPST-NO (1 Form A) | 300 A | - | 24VDC | 18 VDC | - | 250 ms | 250 ms | Diode | Chassis Mount | -40°C ~ 85°C | Screw Terminal |
|
|
31-211-12-E-906Relay 31-211-12-E-906 |
2,238 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AZ947-1A-12DERELAY AUTOMOTIVE SPST 20A 12V |
2,857 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 50 mA | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 12VDC | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ947-1C-12DERELAY AUTOMOTIVE SPDT 20A 12V |
2,573 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 50 mA | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 12VDC | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ947-1A-24DRELAY AUTOMOTIVE SPST 20A 24V |
3,296 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 25 mA | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 24VDC | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ947-1C-24DRELAY AUTOMOTIVE SPDT 20A 24V |
3,760 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 25 mA | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 24VDC | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ947-1A-24DERELAY AUTOMOTIVE SPST 20A 24V |
3,911 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 25 mA | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 24VDC | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ947-1C-24DERELAY AUTOMOTIVE SPDT 20A 24V |
3,277 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 25 mA | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 24VDC | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
PC537-1A-12S-XRELAY AUTOMOTIVE SPST 30A 12V |
3,650 |
|
Datasheet |
- | Tube | Active | Non Latching | 47.2 mA | SPST-NO (1 Form A) | - | 28VDC - Max | 12VDC | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | -40°C ~ 105°C | PC Pin |
|
|
AZ947-1A-12DRELAY AUTOMOTIVE SPST 20A 12V |
3,423 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 50 mA | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 12VDC | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
A161CS12VDC.80RELAY AUTOMOTIVE SPDT 30A 12V |
1,162 |
|
Datasheet |
A16 | Tube | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 30 A | 20VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 105°C | PC Pin |
|
|
AZ947-1C-12DRELAY AUTOMOTIVE SPDT 20A 12V |
2,544 |
|
Datasheet |
AZ947 | Box | Active | Non Latching | 50 mA | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 12VDC | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
PC565-1C-12-XRELAY AUTOMOTIVE SPDT 25A 12V |
4,232 |
|
Datasheet |
- | Tube | Active | Non Latching | 53.3 mA | SPDT (1 Form C) | 25 A | 16VDC - Max | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ9421A-1CT-12DERELAY AUTOMOTIVE SPDT 20A 12V |
4,529 |
|
Datasheet |
AZ9421A | Tube | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 12VDC | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ9421A-1CT-24DERELAY AUTOMOTIVE SPDT 20A 24V |
4,950 |
|
Datasheet |
AZ9421A | Tube | Active | Non Latching | 33.3 mA | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 24VDC | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
A51AO12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
2,165 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|

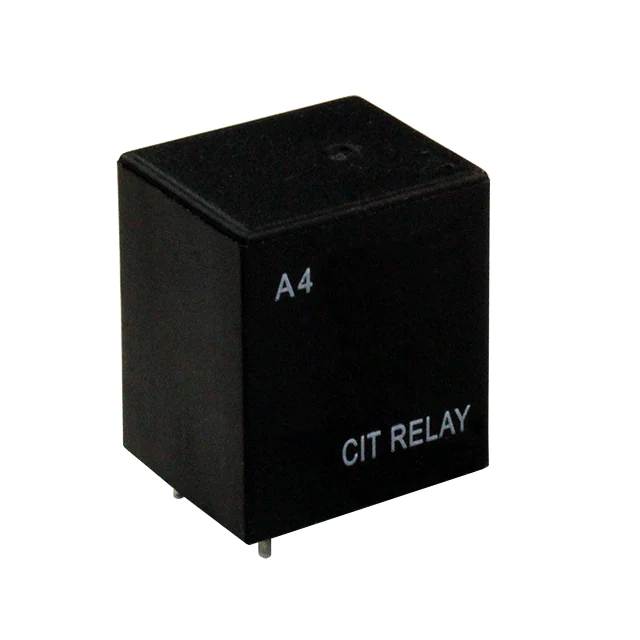

A41US12VDCRELAY AUTOMOTIVE SPDT 20A 12V |
2,974 |
|
Datasheet |
A4 | Tray | Active | Non Latching | 82.8 mA | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AO12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V |
3,378 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AO12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V |
2,967 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AO24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
3,700 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 79.2 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
