Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ977-1C-12DRELAY AUTOMOTIVE SPDT 20A 12V |
3,195 |
|
Datasheet |
AZ977 | Box | Active | Non Latching | 123.7 mA | SPDT (1 Form C) | 20 A | 150VDC - Max | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 7 ms | MICRO-ISO | Socketable | -40°C ~ 115°C | Plug In, Quick Connect - Multiple Sizes |
|
|
AZ971-1C-24DERELAY AUTOMOTIVE SPDT 30A 24V |
1,255 |
|
Datasheet |
AZ971 | Box | Active | Non Latching | 66.3 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 24VDC | 16.8 VDC | 1.44 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | -40°C ~ 125°C | PC Pin |
|
A2F1ACQ12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
3,693 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
A21ACQ12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
1,699 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
A21ACQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
4,419 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ977-1C-24DRELAY AUTOMOTIVE SPDT 20A 24V |
3,997 |
|
Datasheet |
AZ977 | Box | Active | Non Latching | 62.5 mA | SPDT (1 Form C) | 20 A | 150VDC - Max | 24VDC | 14.4 VDC | 2 VDC | 10 ms | 7 ms | MICRO-ISO | Socketable | -40°C ~ 115°C | Plug In, Quick Connect - Multiple Sizes |
|
|
A21ACQ12VDC1.9RRELAY AUTOMOTIVE SPST 40A 12V |
1,726 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
A2F1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
3,643 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A2F1ACQ12VDC1.9RRELAY AUTOMOTIVE SPST 40A 12V |
4,037 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A21ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
4,257 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|

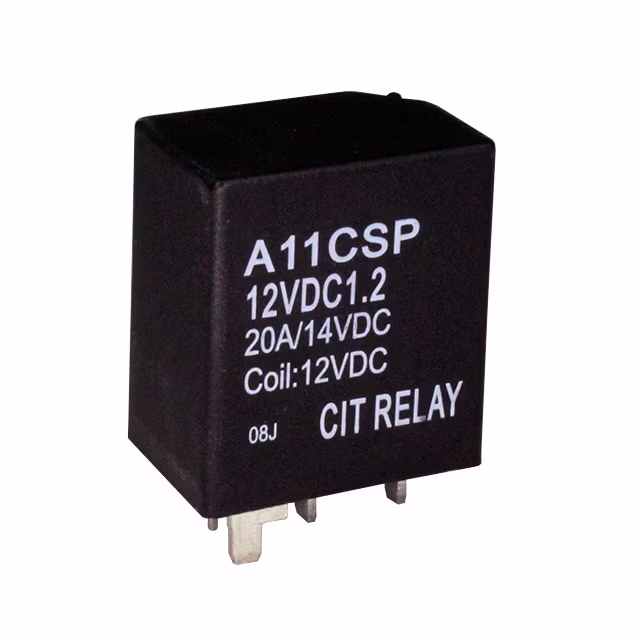

A11CSP12VDC1.2RELAY AUTOMOTIVE SPDT 30A 12V |
4,175 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 100 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A2F1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V |
3,104 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
A2M1ACQ12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
1,995 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A2M1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
3,662 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A21ACQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V |
3,328 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
A21ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V |
4,655 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ9731-1A-24DC2RELAY AUTOMOTIVE SPST 40A 24V |
4,290 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 66.7 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 24VDC | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | MINI-ISO w/ Plastic mounting bracket | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ977-1C-12DSRRELAY AUTOMOTIVE SPDT 20A 12V |
2,484 |
|
Datasheet |
AZ977 | Box | Active | Non Latching | 97.6 mA | SPDT (1 Form C) | 20 A | 150VDC - Max | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 7 ms | MICRO-ISO, Resistor, Sealed - Epoxy | Socketable | -40°C ~ 115°C | Plug In, Quick Connect - Multiple Sizes |
|
|
AZ987-1A-24DETRELAY AUTOMOTIVE SPST 30A 24V |
2,551 |
|
Datasheet |
AZ987 | Box | Active | Non Latching | - | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 24VDC | 13.8 VDC | 3 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | -40°C ~ 105°C | PC Pin |
|
|
A2F1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
4,303 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
