DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3414NMU-603FAN AXIAL 92X25.4MM 24VDC WIRE |
134 |
|
Datasheet |
3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 28.0dB(A) | 1.4 W | 2300 RPM | UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.22 lb (99.79 g) |
|
632/2HPUFAN AXIAL 60X25.4MM 12VDC WIRE |
178 |
|
Datasheet |
630U | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.9 CFM (0.725m³/min) | - | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.5 W | 6300 RPM | UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.154 lb (69.85 g) |
|
4184NXFAN AXIAL 119X38MM 24VDC TERM |
335 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 4.5 W | 3200 RPM | CSA, UL, VDE | 2 Terminals | -22 ~ 167°F (-30 ~ 75°C) | - | 0.86 lb (390.09 g) |
|

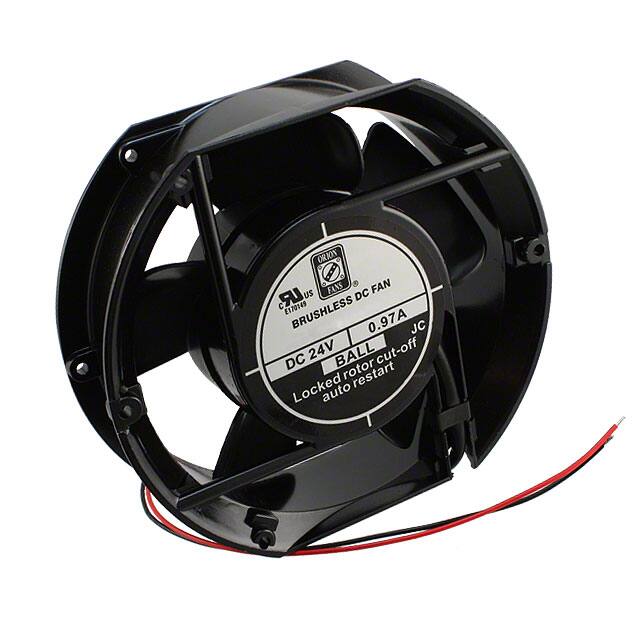

OD172SAP-24HBFAN AXIAL 172X50.8MM 24VDC WIRE |
482 |
|
Datasheet |
OD172S | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart | 52.0dB | - | 3300 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

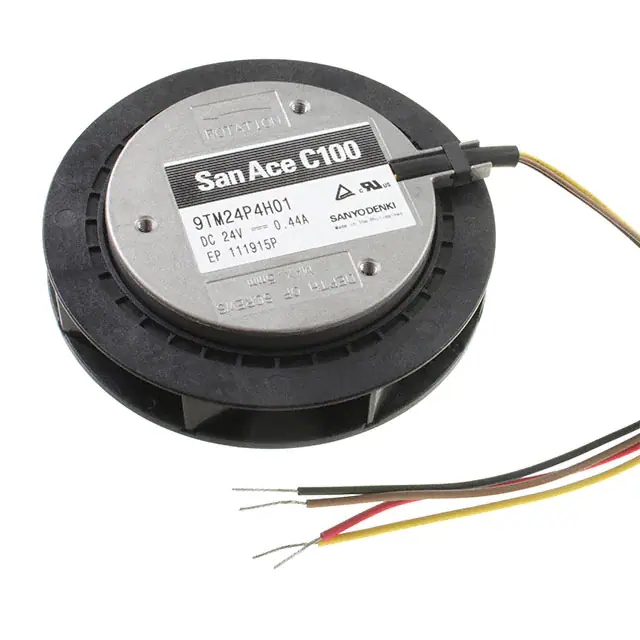

9TM24P4H01FAN IMP MTRZD 100X25MM 24VDC |
217 |
|
Datasheet |
San Ace C100 | Box | Active | 24VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 25.00mm | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|

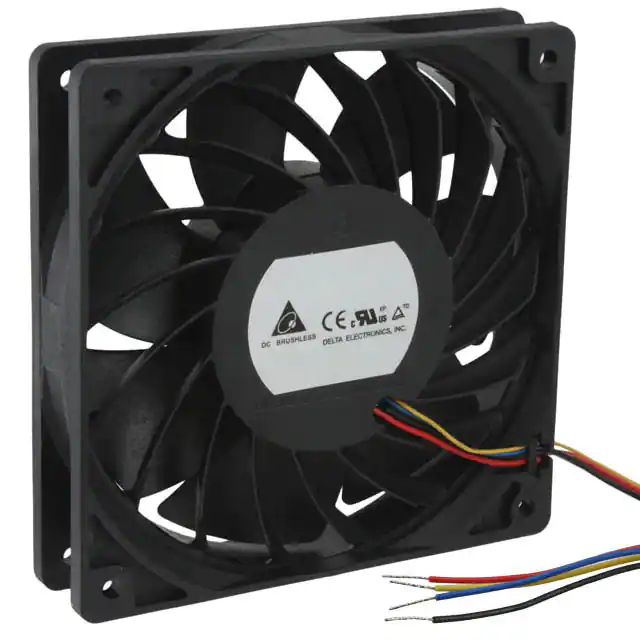

THB1224B-PM00FAN AXIAL 120X25.4MM 24VDC WIRE |
1,061 |
|
Datasheet |
THB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 22.8 W | 8300 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.437 lb (198.00 g) |
|
614JHFAN AXIAL 60X32MM 24VDC WIRE |
557 |
|
Datasheet |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 41.1 CFM (1.15m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 53.0dB(A) | 7.7 W | 11700 RPM | CE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
9WL0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
1,142 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 19.7 CFM (0.552m³/min) | 1.245 in H2O (310.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 15500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.154 lb (69.85 g) |
|

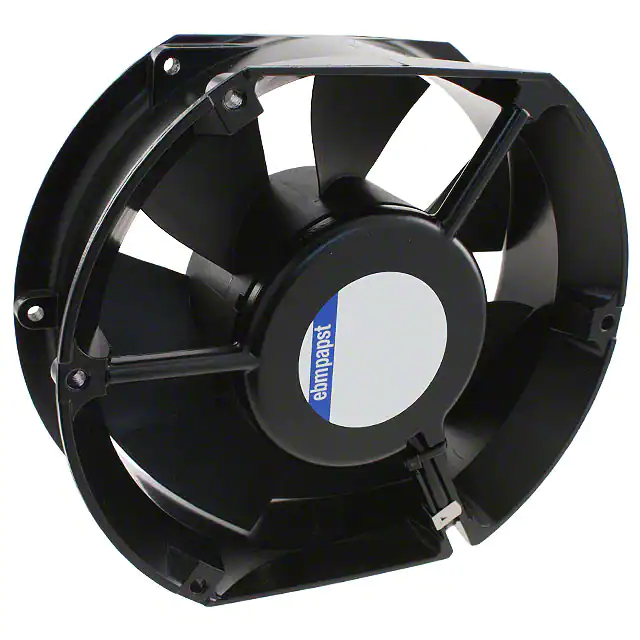

6424FAN AXIAL 172X50.8MM 24VDC TERM |
601 |
|
Datasheet |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 241.0 CFM (6.75m³/min) | - | Ball | 50.80mm | Tubeaxial | - | 57.0dB(A) | 18 W | 3400 RPM | - | 2 Terminals | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
GFB0912ES-EFAN AXIAL DUAL 92X56MM 12VDC |
2,544 |
|
Datasheet |
GFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 165.3 CFM (4.63m³/min) | 4.670 in H2O (1163.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 47.4 W | 11200 Front, 11400 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9GT0624P4G001FAN AXIAL 60X25MM 24VDC WIRE |
124 |
|
Datasheet |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | CSA, TUV, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | 0.22 lb (99.79 g) |
|
|
9GT0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
2,658 |
|
Datasheet |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | CSA, TUV, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | 0.22 lb (99.79 g) |
|
4314/2UFAN AXIAL 119X32MM 24VDC WIRE |
104 |
|
Datasheet |
4300U | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | 2800 RPM | UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.573 lb (259.91 g) |
|

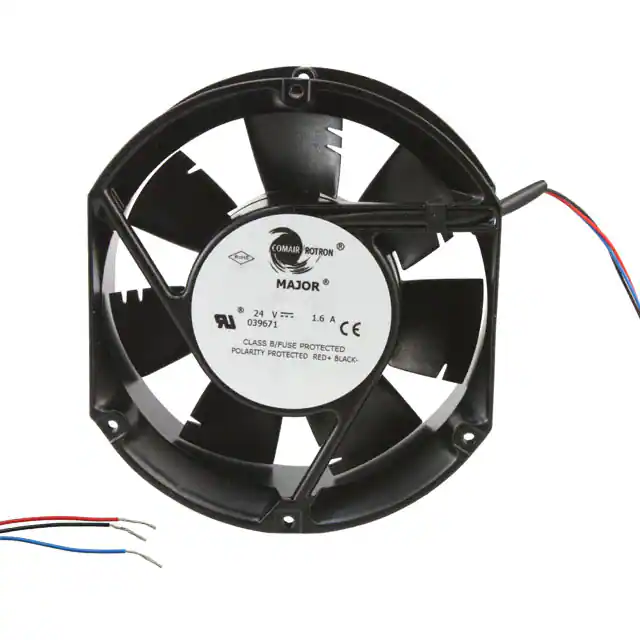

19039671AFAN AXIAL 171.4X50.8MM JQ24K7 |
1,365 |
|
Datasheet |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 283.0 CFM (7.92m³/min) | - | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 58.3dB(A) | 39 W | 4200 RPM | UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.02 lb (9.07 g) |
|
|
9WL0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
3,481 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 6.24 W | 17500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.154 lb (69.85 g) |
|
|
9WL0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
574 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 6.24 W | 17500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.154 lb (69.85 g) |
|
9GA1248P4G001FAN AXIAL 120X25.4MM 48VDC WIRE |
2,087 |
|
Datasheet |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.52 W | 6400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
19031075AFAN AXIAL 127X38.1MM 24V GL24B4 |
1,647 |
|
Datasheet |
Galaxy | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 15 W | 3250 RPM | CE, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
4184N/2XFAN AXIAL 119X38MM 24VDC WIRE |
2,143 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 4.9 W | 3200 RPM | - | 3 Wire Leads | -22 ~ 158°F (-30 ~ 70°C) | - | 0.86 lb (390.09 g) |
|
|
4182NXFAN AXIAL 119X38MM 12VDC TERM |
329 |
|
Datasheet |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 4.5 W | 3200 RPM | CSA, UL, VDE | 2 Terminals | -22 ~ 167°F (-30 ~ 75°C) | - | 0.86 lb (390.09 g) |
