Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE90-333K-RC33MH 10% AXIAL EPOXY COATED |
1,714 |
|
Datasheet |
AE90 | Axial | Bag | Active | Wirewound | - | ±10% | 67 mA | 85mA | 33 mH | Unshielded | 130Ohm Max | 50 @ 79.6kHz | 140kHz | - | Through Hole | -55°C ~ 125°C | - | 10 kHz | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
CHQ05-16NG-RC16NH 2% CERAMIC CORE HI. Q CHIP |
4,748 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1.5 A | - | 16 nH | Unshielded | 60mOhm Max | 72 @ 500MHz | 2.95GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-51NG-RC51NH 2% CERAMIC CORE HI. Q CHIP |
1,597 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1 A | - | 51 nH | Unshielded | 120mOhm Max | 65 @ 500MHz | 1.4GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-2N5J-RC2.5NH 5% CERAMIC CORE HI Q CHIP |
4,742 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 1.6 A | - | 2.5 nH | Unshielded | 20mOhm Max | 80 @ 1.5GHz | 6GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-48NG-RC48NH 2% CERAMIC CORE HI. Q CHIP |
1,920 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1.2 A | - | 48 nH | Unshielded | 110mOhm Max | 65 @ 500MHz | 1.4GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-30NG-RC30NH 2% CERAMIC CORE HI. Q CHIP |
2,376 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1.2 A | - | 30 nH | Unshielded | 95mOhm Max | 65 @ 500MHz | 1.95GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
AS40-180K-RC18UH 10% AXIAL SHIELDED INDUCTOR |
1,120 |
|
Datasheet |
AS40 | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 300 mA | 235mA | 18 µH | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | Through Hole | -55°C ~ 125°C | - | 2.5 MHz | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

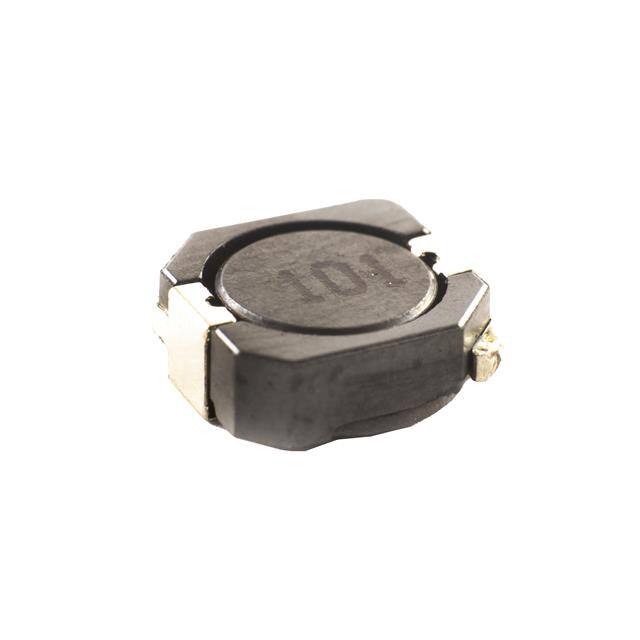

PCS104-221M-RC220UH 20% SMD POWER INDUCTOR |
1,471 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 920 mA | - | 220 µH | Shielded | 756mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PCS104-680M-RC68UH 20% PWR CHIP SHIELDED IND. |
2,997 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.5 A | - | 68 µH | Shielded | 213mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PCHC40-2R2M-RC2.2UH 20% PWR CHIP HIGH CURRENT |
1,574 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.4 A | 7.8A | 2.2 µH | Unshielded | 11mOhm Max | - | 90MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|
AS40-182K-RC1800UH 10% AXIAL SHIELDED IND. |
1,876 |
|
Datasheet |
AS40 | Axial | Bag | Active | - | - | ±10% | 50 mA | 30mA | 1.8 mH | Shielded | 29.9Ohm Max | 45 @ 250kHz | 1MHz | - | Through Hole | -55°C ~ 125°C | - | 250 kHz | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-223K-RC22MH 10% AXIAL SHIELDED INDUCT. |
3,661 |
|
Datasheet |
AS40 | Axial | Bag | Active | - | - | ±20% | 17 mA | 9mA | 22 mH | Shielded | 274Ohm Max | 27 @ 79kHz | 250kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
HFC03-3N9S-RC3.9NH 0.3NH 0402 HI-FREQ CHIP |
3,676 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | - | ±0.3nH | 400 mA | - | 3.9 nH | Unshielded | 180mOhm Max | 8 @ 100kHz | 6.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
AS40-R22K-RC.22UH 10% AXIAL SHIELDED IND. |
2,397 |
|
Datasheet |
AS40 | Axial | Bag | Active | - | - | ±10% | 1.1 A | 1.1A | 220 nH | Shielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | Through Hole | -55°C ~ 125°C | - | 25 MHz | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-272J-RC2700UH 5% AXIAL SHIELDED IND. |
3,960 |
|
Datasheet |
AS40 | Axial | Bag | Active | - | - | ±10% | 40 mA | 25mA | 2.7 mH | Shielded | 47.3Ohm Max | 45 @ 250kHz | 920kHz | - | Through Hole | -55°C ~ 125°C | - | 250 kHz | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
PCS2D14-100T-RC10UH 30% POWER CHIP INDUCTOR |
3,607 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 760 mA | 700mA | 10 µH | Shielded | 294mOhm Max | - | - | - | Surface Mount | -35°C ~ 100°C | - | 100 kHz | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.061" (1.55mm) |
|
PCS3D16-100T-RC10UH 30% POWER CHIP INDUCTOR |
1,156 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 550 mA | - | 10 µH | Shielded | 210mOhm Max | - | - | - | Surface Mount | -30°C ~ 100°C | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

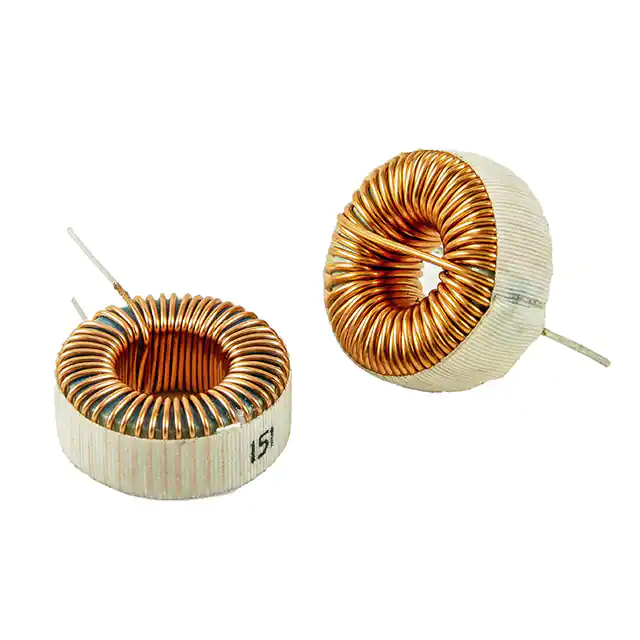

HTC220LL-8R2M-RC8.2UH 30% HRZMNT TOROIDAL CHOKE |
1,959 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | ±20% | 15.1 A | - | 8.2 µH | Unshielded | 5mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
VTCB5825-300-40A30UH 15% @ 40A VERT.MNT. TOROID |
1,328 |
|
Datasheet |
- | Radial, Vertical (Open) | Box | Active | Toroidal | - | ±15% | 40 A | - | 30 µH | Unshielded | 6mOhm Max | - | - | - | Through Hole | -40°C ~ 125°C | - | 100 kHz | Radial, Vertical (Open) | 2.283" L x 0.984" W (58.00mm x 25.00mm) | 2.559" (65.00mm) |
|
PCS5D28-8R2N-RC8.2UH 30% POWER CHIP SHIELDED |
3,765 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.6 A | - | 8.2 µH | Shielded | 53mOhm Max | - | - | - | Surface Mount | -30°C ~ 100°C | - | 10 kHz | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
