Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWPQ2814L-150K15uH +/-10% Flat Wire SMD Power |
2,038 |
|
Datasheet |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 30 A | 11A | 15 µH | Shielded | 1.62mOhm Max | - | 15MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-330K33uH +/-10% Flat Wire SMD Power |
4,212 |
|
Datasheet |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 30 A | 3.3A | 33 µH | Shielded | 1.62mOhm Max | - | 7MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-6R8K6.8uH +/-10% Flat Wire SMD Power |
1,947 |
|
Datasheet |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 30 A | 27.8A | 6.8 µH | Shielded | 1.62mOhm Max | - | 25MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-4R7K4.7uH +/-10% Flat Wire SMD Power |
4,099 |
|
Datasheet |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 30 A | 39A | 4.7 µH | Shielded | 1.62mOhm Max | - | 30MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-2R2K2.2uH +/-10% Flat Wire SMD Power |
1,655 |
|
Datasheet |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 30 A | 84.8A | 2.2 µH | Shielded | 1.62mOhm Max | - | 50MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
FWPQ2817H-100K10uH +/-10% Flat Wire SMD Power |
2,978 |
|
Datasheet |
FWTPQ2817H | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 28 A | 32.1A | 10 µH | Shielded | 2.82mOhm | - | 20MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.669" (17.00mm) |
|
|
FWPQ2817H-3R3K3.3uH +/-10% Flat Wire SMD Power |
4,924 |
|
Datasheet |
FWTPQ2817H | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | ±10% | 28 A | 93.6A | 3.3 µH | Shielded | 2.82mOhm | - | 40MHz | - | Surface Mount | -40°C ~ 85°C | - | 500 kHz | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.669" (17.00mm) |
|
PCI20-1R0M-RC1.0uH +/-20% Power Chip Inductor |
2,686 |
|
Datasheet |
PCI20 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.9 A | 2.9A | 1 µH | Unshielded | 50mOhm Max | - | 130MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PCI20-3R3M-RC3.3uH +/-20% Power Chip Inductor |
1,660 |
|
Datasheet |
PCI20 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2 A | 2A | 3.3 µH | Unshielded | 80mOhm Max | - | 70MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PCI50-4R7M-RC4.7uH +/-20% Power Chip Inductor |
3,242 |
|
Datasheet |
PCI50 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.5 A | 8A | 4.7 µH | Unshielded | 33mOhm Max | - | 25MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
AM30-5R6M-RC5.6uH +20% Axial Molded Inductor |
2,232 |
|
Datasheet |
AM30 | Axial | Bag | Active | Molded | - | ±10% | 565 mA | - | 5.6 µH | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | Through Hole | -55°C ~ 125°C | - | 7.9 MHz | Axial | 0.156" Dia (3.96mm) | 0.375" (9.53mm) |
|
SQAC0806-12NJ-RC12.3nH +/-5% Square Wound Coil |
4,433 |
|
Datasheet |
SQAC0806 | Nonstandard | Tape & Reel (TR) | Active | - | Air | ±5% | 2.9 A | - | 12 nH | Unshielded | 8mOhm Max | 90 @ 400MHz | 4.8GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.076" L x 0.072" W (1.93mm x 1.83mm) | 0.059" (1.50mm) |
|

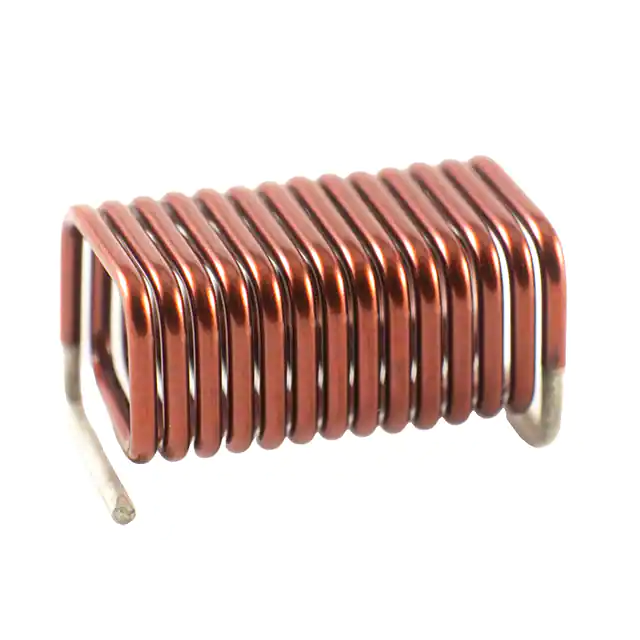

SQAC2929-431NG-RC430nH +/-2% SMD Sq. Air Core Ind |
2,472 |
|
Datasheet |
SQAC2929 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 4.2 A | - | 430 nH | Unshielded | 16.5mOhm Max | 180 @ 50MHz | 500MHz | - | Surface Mount | -40°C ~ 125°C | - | 50 MHz | - | 0.520" L x 0.295" W (13.21mm x 7.49mm) | 0.295" (7.49mm) |
|
|
SQAC2929-501NG-RC500nH +/-2% SMD Sq. Air Core Ind |
2,058 |
|
Datasheet |
SQAC2929 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 4.3 A | - | 500 nH | Unshielded | 15.5mOhm Max | 180 @ 50MHz | 550MHz | - | Surface Mount | -40°C ~ 125°C | - | 50 MHz | - | 0.551" L x 0.295" W (14.00mm x 7.49mm) | 0.295" (7.49mm) |
|
SQAC1515-82NG-RC82nH +/-2% SMD Air Core Inductor |
1,877 |
|
Datasheet |
SQAC1515 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 5.6 A | - | 82 nH | Unshielded | 9.4mOhm Max | 230 @ 400MHz | 1.79GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.230" L x 0.140" W (5.84mm x 3.56mm) | 0.154" (3.91mm) |
|
HFC05-100NJ-RC100nH +/-5% High Frequency Chip |
2,212 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 100 nH | Unshielded | 1.2Ohm Max | 12 @ 100MHz | 770MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-120NJ-RC120nH +/-5% High Frequency Chip |
4,427 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 120 nH | Unshielded | 1.3Ohm Max | 8 @ 100MHz | 650MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ASPI-2510-1R5M-T2FIXED IND 1.5UH 1.5A 107MOHM SMD |
2,499 |
|
Datasheet |
ASPI-2510 | 1008 (2520 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.55 A | 1.7A | 1.5 µH | Shielded | 90mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0615FS-5R6NLOW PROFILE SHIELDED SMD CHIP PO |
2,216 |
|
Datasheet |
ASPI-0615FS | 2424 (6060 Metric) | Bulk | Obsolete | Wirewound | Ferrite | ±30% | 2 A | 2.2A | 5.6 µH | Shielded | 55mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
HFC05-5N6K-RC5.6nH +/-10% High Frequency Chip |
2,583 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 600 mA | - | 5.6 nH | Unshielded | 180mOhm Max | 10 @ 100MHz | 4.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
