Float, Level Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Package | ProdictStatis | Output Type | Output Configuration | Current | Type | Minimum Liquid Specific Gravity | Switch Actuation Level | Mounting Style | Material - Housing & Prism | Operating Temperature | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSV-1-01-BSENSOR LEVEL SWITCH SINGLE FLOAT |
2,539 |
|
Datasheet |
- | Bulk | Obsolete | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NC/NO | Panel Mount, M8 Thread | Polypropylene (PP) | -20°C ~ 85°C | 200V | ||
|
|
LSV-4-01-BSENSOR LEVEL SWITCH SINGLE FLOAT |
4,322 |
|
Datasheet |
- | Bulk | Obsolete | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NC/NO | Panel Mount, M8 Thread | Polyvinylidene Fluoride (PVDF) | -20°C ~ 85°C | 200V | ||
|
LLE102000SENSOR LEVEL PUSH-PULL |
4,995 |
|
Datasheet |
LLE | Box | Obsolete | Liquid | Push-Pull | 15 mA | - | - | High-Dry | Panel Mount, M12 Thread | Polysulfone (PES) | -25°C ~ 80°C | 5V ~ 12V | ||
|
LLE103000SENSOR LEVEL PUSH-PULL |
3,009 |
|
Datasheet |
LLE | Box | Obsolete | Liquid | Push-Pull | 15 mA | - | - | High-Dry | Panel Mount, M12 Thread | Polysulfone (PES) | -25°C ~ 80°C | 5V ~ 12V | ||
|
LLE105000SENSOR LEVEL PUSH-PULL |
3,062 |
|
Datasheet |
LLE | Box | Obsolete | Liquid | Push-Pull | 15 mA | - | - | High-Dry | Panel Mount | Polysulfone (PES) | -25°C ~ 80°C | 5V ~ 12V | ||
|
|
LLE102101SENSOR LEVEL PUSH-PULL |
1,281 |
|
Datasheet |
LLE | Box | Obsolete | Liquid | Push-Pull | 15 mA | - | - | High-Dry | Panel Mount, M12 Thread | Polysulfone (PES) | -40°C ~ 125°C | 5V ~ 12V | ||
|
|
LLE105100SENSOR LEVEL PUSH-PULL |
4,222 |
|
Datasheet |
LLE | Box | Obsolete | Liquid | Push-Pull | 5 mA | - | - | High-Dry | Panel Mount | Polysulfone (PES) | -40°C ~ 125°C | 5V ~ 12V | ||
|
LLN865172-1SENSOR LEVEL OPEN COLLECTOR |
4,267 |
|
Datasheet |
LLN | Box | Obsolete | Liquid | Open Collector | 60 mA | - | - | High-Dry | Panel Mount | Stainless Steel | -40°C ~ 125°C | 10 ~ 40V | ||
|
LLN865172-2SENSOR LEVEL OPEN COLLECTOR |
3,668 |
|
Datasheet |
LLN | Box | Obsolete | Liquid | Open Collector | 60 mA | - | - | Low-Dry | Panel Mount | Stainless Steel | -40°C ~ 125°C | 10 ~ 40V | ||
|
|
QT114A-ISGSENSOR LEVEL OPEN COLLECTOR |
4,542 |
|
Datasheet |
QLevel™ | Tape & Reel (TR) | Obsolete | Liquid, Powder | Open Collector | 20 µA | - | - | Low-Dry | Surface Mount | - | -40°C ~ 85°C | 2.45 ~ 5.25V | ||
|
LS04-1B66-PP-BV15757SENSOR LEVEL SWITCH SINGLE FLOAT |
2,704 |
|
Datasheet |
LS04 | Bulk | Active | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NO | Panel Mount, M10 Thread | Polypropylene (PP) | -30°C ~ 80°C | 180V | ||
|
LS02-1A66-PP-5000WSENSOR LEVEL SWITCH SINGLE FLOAT |
2,895 |
|
Datasheet |
LS02 | Bulk | Active | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NO | Free Hanging | Polypropylene (PP) | -20°C ~ 90°C | 200V | ||
|
LS03/GZ-1A66-PA-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
1,363 |
|
Datasheet |
LS03 | Bulk | Active | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NC/NO | Male 1/2" (12.7mm) NPT | Polyamide (PA) | -20°C ~ 90°C | 200V | ||
|
|
POS287413SENSOR LEVEL |
1,131 |
|
Datasheet |
POS | Bulk | Obsolete | Liquid | - | 200 mA | - | - | PNP | Bracket Mount | Stainless Steel | -25°C ~ 140°C | 12 ~ 28V | ||
|
|
POS187414SENSOR LEVEL |
4,566 |
|
Datasheet |
POS | Bulk | Obsolete | Liquid | - | 200 mA | - | - | PNP | Bracket Mount | Stainless Steel | -25°C ~ 100°C | 12 ~ 28V | ||
|
|
POS187311SENSOR LEVEL |
2,440 |
|
Datasheet |
POS | Bulk | Obsolete | Liquid | - | 200 mA | - | - | NPN | Bracket Mount | Stainless Steel | -25°C ~ 100°C | 12 ~ 28V | ||
|
|
POS287311SENSOR LEVEL |
1,501 |
|
Datasheet |
POS | Bulk | Obsolete | Liquid | - | 200 mA | - | - | NPN | Bracket Mount | Stainless Steel | -25°C ~ 140°C | 12 ~ 28V | ||
|
|
POS187312SENSOR LEVEL |
3,185 |
|
Datasheet |
POS | Bulk | Obsolete | Liquid | - | 200 mA | - | - | NPN | Bracket Mount | Stainless Steel | -25°C ~ 100°C | 12 ~ 28V | ||
|

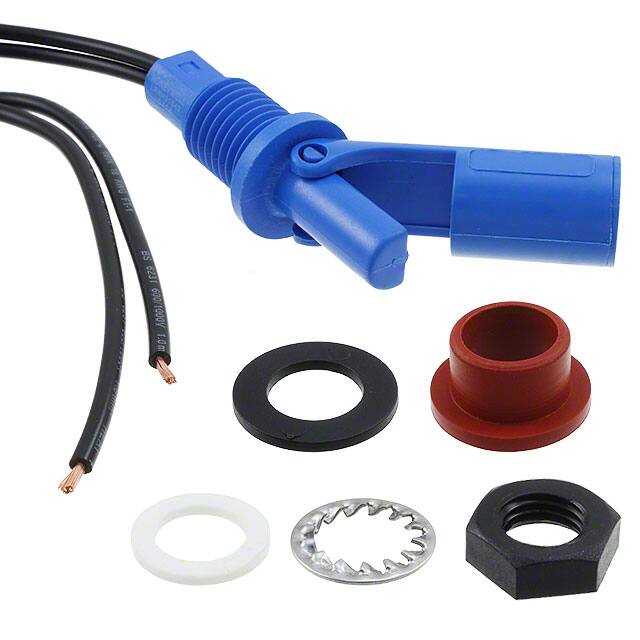

LRNH31S42SENSOR LEVEL HORIZONTAL |
2,423 |
|
Datasheet |
LRN | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | ||
|

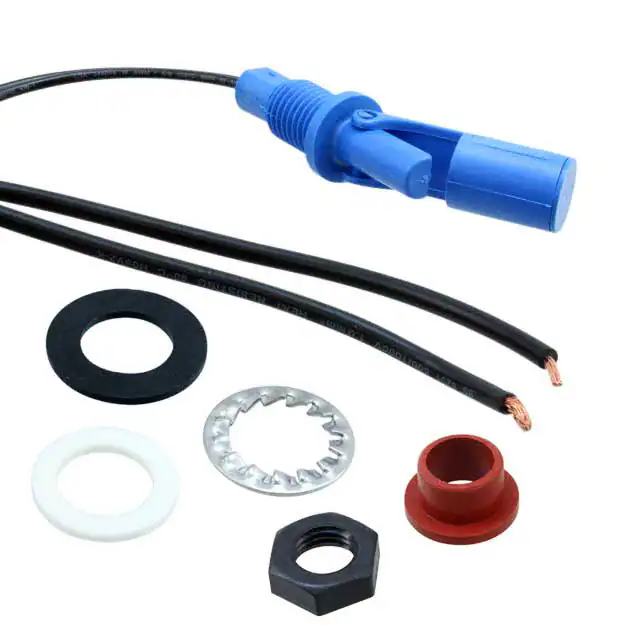

LRNH31S41SENSOR LEVEL HORIZONTAL |
1,562 |
|
Datasheet |
LRN | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
