Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | R @ 25°C | Tolerance | R @ Current | Diameter | Lead Spacing | Current - Steady State Max | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL12 22101-AICL 220 OHM 20% 1A 13MM |
209 |
|
Datasheet |
SL12 | Bulk | Active | 220 Ohms | ±20% | 4.2 Ohms | 0.512" (13.00mm) | 0.307" (7.80mm) | 1 A | - | - | UR |
|
|
SL12 25003ICL 25 OHM 15% 3A 13MM |
503 |
|
Datasheet |
SL12 | Bulk | Active | 25 Ohms | ±15% | 420 mOhms | 0.512" (13.00mm) | 0.307" (7.80mm) | 3 A | - | - | UR |
|
|
SL12 15004ICL 15 OHM 15% 4A 13MM |
468 |
|
Datasheet |
SL12 | Bulk | Active | 15 Ohms | ±15% | 160 mOhms | 0.512" (13.00mm) | 0.307" (7.80mm) | 4 A | - | - | UR |
|

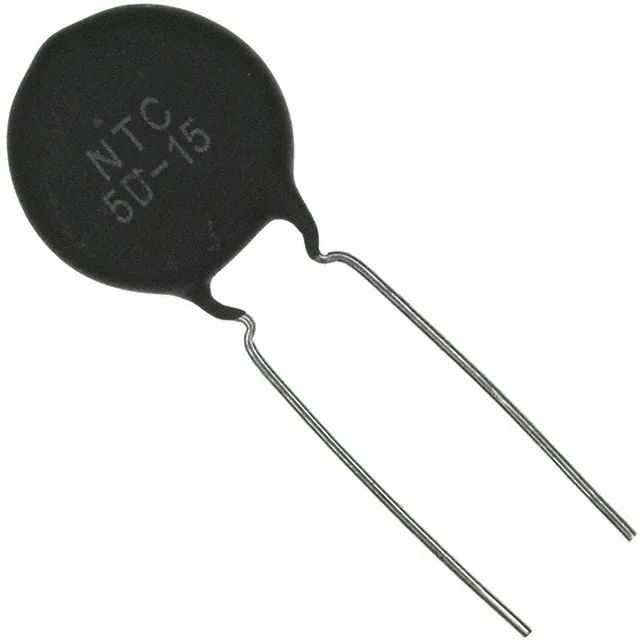

MF72-005D15ICL 5 OHM 20% 6A 17.5MM |
1,029 |
|
Datasheet |
MF72 | Bulk | Active | 5 Ohms | ±20% | 112 mOhms | 0.689" (17.50mm) | 0.394" (10.00mm) | 6 A | - | - | - |
|
SL15 60004ICL 60 OHM 20% 4A 16MM |
3,480 |
|
Datasheet |
SL15 | Bulk | Active | 60 Ohms | ±20% | 730 mOhms | 0.630" (16.00mm) | 0.307" (7.80mm) | 4 A | - | - | UR |
|
|
SL15 2R507ICL 2.5 OHM 20% 7A 16MM |
1,866 |
|
Datasheet |
SL15 | Bulk | Active | 2.5 Ohms | ±20% | 60 mOhms | 0.630" (16.00mm) | 0.307" (7.80mm) | 7 A | - | - | CSA |
|
MS32 20008ICL 20 OHM 25% 8A 31MM |
4,142 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 20 Ohms | ±25% | 220 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 8 A | - | - | UL |
|
MM35 0R280ICL 200 MOHM 25% 80A 68MM |
2,706 |
|
Datasheet |
MM35 | Bulk | Active | 200 mOhms | ±25% | 4 mOhms | 2.677" (68.00mm) | 1.339" (34.00mm) | 80 A | - | - | - |
|
ICL201D09MIBICL 20 OHM 20% 2A 9.5MM |
857 |
|
Datasheet |
ICL | Bulk | Active | 20 Ohms | ±20% | - | 0.374" (9.50mm) | 0.197" (5.00mm) | 2 A | - | - | - |
|
|
ICL300D09MIBICL 3 OHM 20% 4A 9.5MM |
379 |
|
Datasheet |
ICL | Bulk | Active | 3 Ohms | ±20% | - | 0.374" (9.50mm) | 0.197" (5.00mm) | 4 A | - | - | - |
|
|
ICL150D11MIBICL 1.5 OHM 20% 6A 12MM |
944 |
|
Datasheet |
ICL | Bulk | Active | 1.5 Ohms | ±20% | - | 0.472" (12.00mm) | 0.197" (5.00mm) | 6 A | - | - | - |
|
|
ICL161D13MICICL 16 OHM 20% 3A 13MM |
973 |
|
Datasheet |
ICL | Bulk | Active | 16 Ohms | ±20% | - | 0.512" (13.00mm) | 0.295" (7.50mm) | 3 A | - | - | - |
|
|
ICL500D13MICICL 5 OHM 20% 5A 13MM |
745 |
|
Datasheet |
ICL | Bulk | Active | 5 Ohms | ±20% | - | 0.512" (13.00mm) | 0.295" (7.50mm) | 5 A | - | - | - |
|
|
ICL301D13MICICL 30 OHM 20% 2.5A 13MM |
732 |
|
Datasheet |
ICL | Bulk | Active | 30 Ohms | ±20% | - | 0.512" (13.00mm) | 0.295" (7.50mm) | 2.5 A | - | - | - |
|
SL08 50001-AICL 50 OHM 15% 1.1A 8MM |
479 |
|
Datasheet |
miniAMP | Bulk | Active | 50 Ohms | ±15% | 950 mOhms | 0.315" (8.00mm) | 0.201" (5.10mm) | 1.1 A | - | - | - |
|

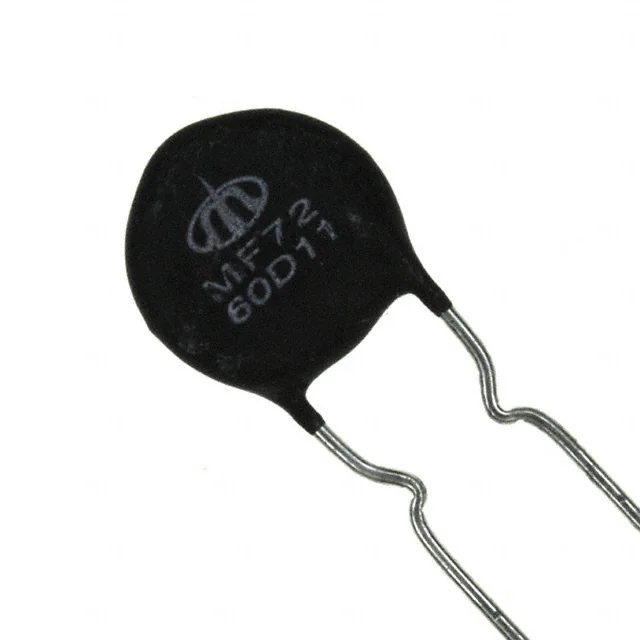

MF72-060D11ICL 60 OHM 20% 1.5A 13MM |
997 |
|
Datasheet |
MF72 | Bulk | Active | 60 Ohms | ±20% | 1.215 Ohms | 0.512" (13.00mm) | 0.295" (7.50mm) | 1.5 A | - | - | - |
|
B57237S259M53ICL 2.5 OHM 20% 6.5A 15MM |
201 |
|
Datasheet |
S237 | Tape & Reel (TR) | Active | 2.5 Ohms | ±20% | 74 mOhms | 0.591" (15.00mm) | 0.295" (7.50mm) | 6.5 A | - | - | UL |
|
SL10 25002-AICL 25 OHM 25% 2A 10MM |
435 |
|
Datasheet |
SL10 | Bulk | Active | 25 Ohms | ±25% | 480 mOhms | 0.394" (10.00mm) | 0.307" (7.80mm) | 2 A | - | - | UR |
|
|
SL12 8R003ICL 8 OHM 20% 3A 13MM |
1,568 |
|
Datasheet |
SL12 | Bulk | Active | 8 Ohms | ±20% | 170 mOhms | 0.512" (13.00mm) | 0.307" (7.80mm) | 3 A | - | - | UR |
|
|
ICL150D15MICICL 1.5 OHM 20% 9A 16MM |
463 |
|
Datasheet |
ICL | Bulk | Active | 1.5 Ohms | ±20% | - | 0.630" (16.00mm) | 0.295" (7.50mm) | 9 A | - | - | - |
