Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4JL-2NFA-D6INTERLOCK SOLENOID RELEASE 3PST |
1,393 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4JL-2PFA-C6INTERLOCK SOLENOID RELEASE 3PST |
4,103 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4JL-2PFA-D6INTERLOCK SOLENOID RELEASE 3PST |
3,336 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4JL-2QFA-C6INTERLOCK SOLENOID RELEASE 3PST |
3,374 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4JL-2QFA-D6INTERLOCK SOLENOID RELEASE 3PST |
1,860 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

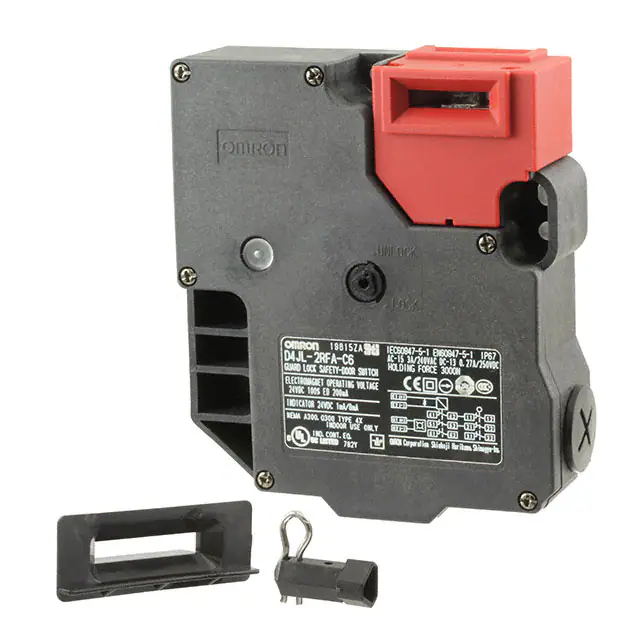

D4JL-2RFA-C6INTERLOCK SOLENOID RELEASE 3PST |
2,181 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4JL-2RFA-D6INTERLOCK SOLENOID RELEASE 3PST |
4,326 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
XCSTE7533INTERLOCK KEY LOCKING DPST |
2,087 |
|
Datasheet |
XCSTE | Box | Active | Key Locking | DPST-NC | - | - | - | - | Panel Disconnect | - | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 60°C |
|
|
TL4019-11101TMINTERLOCK SOLENOID RELEASE 4PST |
4,459 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-21101TMINTERLOCK SOLENOID LOCKING 4PST |
3,031 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
D4BL-3CRAINTERLOCK SOLENOID RELEASE DPST |
4,781 |
|
Datasheet |
D4BL | Bulk | Obsolete | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
MA-S20DSC3INTERLOCK MAGNETIC DPST |
1,813 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 95°C |
|
MA36DS21C3INTERLOCK MAGNETIC 3PST |
1,721 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
601.9390.037INTERLOCK HINGE 3PST |
2,168 |
|
Datasheet |
- | Bulk | Active | Hinge | 3PST-2NC/1NO | 230VAC, 24VDC | - | - | 3A (AC), 1A (DC) | Panel Disconnect | Connector | - | - | - | - | M12 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
TL4019-10241SMINTERLOCK SOLENOID RELEASE 4PST |
4,677 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
D4JL-2NFA-C7-01INTERLOCK SOLENOID RELEASE 3PST |
3,882 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Trapped Key | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
3SE53220SE23INTERLOCK SW,MECH LOCK_SOL UNLOC |
4,381 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 230VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53221SD211AG4POS SW W/SOL INTERL W/AUX.REL. I |
1,256 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SE21INTERLOCK SW,MECH LOCK_SOL UNLOC |
4,140 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24V | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
3SE53220SE22INTERLOCK SW,MECH LOCK_SOL UNLOC |
3,932 |
|
Datasheet |
3SE5 | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 115VAC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
