Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4GL-4GFA-AINTERLOCK SOLENOID RELEASE 3PST |
3,858 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Release | 3PST-NC + DPST-NO/NC | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4GL-4GFG-AINTERLOCK SOLENOID LOCKING 3PST |
1,273 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Locking | 3PST-NC + DPST-NO/NC | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4GL-4HFA-AINTERLOCK SOLENOID RELEASE 3PST |
1,789 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Release | 3PST-NC + DPST-NC | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

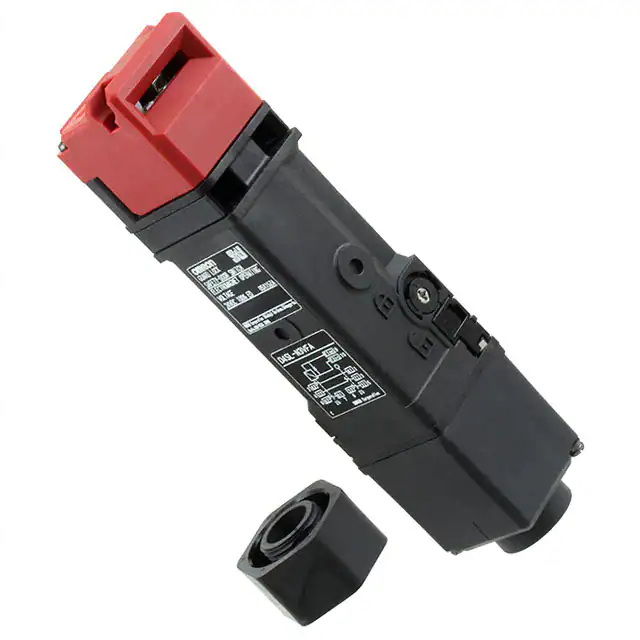

D4SL-N3VFGINTERLOCK SOLENOID LOCKING DPST |
2,399 |
|
Datasheet |
D4SL-N | Bulk | Obsolete | Solenoid Locking | DPST-NC x 2 | 120VAC, 125VDC | - | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2EFG-DNINTERLOCK SOLENOID LOCKING 3PST |
4,127 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2FFG-DNINTERLOCK SOLENOID LOCKING 3PST |
2,270 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NC | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2GFG-DNINTERLOCK SOLENOID LOCKING 3PST |
1,970 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NO/NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2HFG-DNINTERLOCK SOLENOID LOCKING 3PST |
2,042 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N4EFG-DNINTERLOCK SOLENOID LOCKING 3PST |
3,298 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N4FFG-DNINTERLOCK SOLENOID LOCKING 3PST |
1,363 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N4GFG-DNINTERLOCK SOLENOID LOCKING 3PST |
3,923 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NO/NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N4HFG-DNINTERLOCK SOLENOID LOCKING 3PST |
2,526 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
GKCC1LXSAFETY LIMIT SWITCH-HEAVY DUTY |
3,864 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
3SE66272CA01MAG SW,RH HINGE,2NC/1NC,M8 6P |
2,739 |
|
Datasheet |
SIRIUS 3SE66 | Box | Active | Magnetic | 3PST-NC | 30VDC | - | - | 400mA (DC) | Non-Contact | Connector | - | - | - | CE, EAC, RCM, UKCA, UL | M8 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
3SE66172CA01MAG SW,LH HINGE,2NC/1NC,M8 6P |
1,106 |
|
Datasheet |
SIRIUS 3SE66 | Box | Active | Magnetic | 3PST-NC | 30VDC | - | - | 400mA (DC) | Non-Contact | Connector | - | - | - | CE, EAC, RCM, UKCA, UL | M8 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
D40Z-1C5-SINTERLOCK MAGNETIC SPST |
4,313 |
|
Datasheet |
D40Z | Bulk | Active | Magnetic | SPST-NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 65°C |
|
|
GKBA32L7SAFETY LIMIT SWITCH-HEAVY DUTY |
1,245 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
XCSB723INTERLOCK SOLENOID LOCKING 3PST |
4,290 |
|
Datasheet |
XCSB | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 240VAC, 250VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
SI-GL42DM01-20Q13INTERLOCK NON-LOCKING SPST |
4,713 |
|
Datasheet |
SI-GL42 | Bulk | Active | Non-Locking | SPST-NO | - | 24VDC | - | - | Panel Disconnect | Connector (M12) | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
SI-GL42DS01-20Q13INTERLOCK NON-LOCKING SPST |
1,695 |
|
Datasheet |
SI-GL42 | Bulk | Active | Non-Locking | SPST-NO | - | 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
