Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15.108.571/0100SWITCH KEYLOCK 2POS DPST 4A 250V |
4,685 |
|
Datasheet |
LUMOTAST 75 | Box | Active | DPST-NO/NC | 2 | Not Specified | 4A (AC), 200mA (DC) | 250 V | On-Off, Off-On | 230 V | Flat Key | Center | 90° | Silver (Ag) | Circular - 16.20mm Dia | - | Solder Lug | Panel Mount | IP40 | -25°C ~ 70°C |
|
|
1.15.108.632/0100SWITCH KEYLOCK 2POS 4PST 4A 250V |
2,466 |
|
Datasheet |
LUMOTAST 75 | Box | Active | 4PST-2NO/2NC | 2 | Not Specified | 4A (AC), 200mA (DC) | 250 V | On-Off, Off-On | 230 V | Flat Key | All | 90° | Silver (Ag) | Circular - 16.20mm Dia | - | Solder Lug | Panel Mount | IP40 | -25°C ~ 70°C |
|
A165K-A2ML-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
1,712 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A3ML-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
1,509 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Left | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|

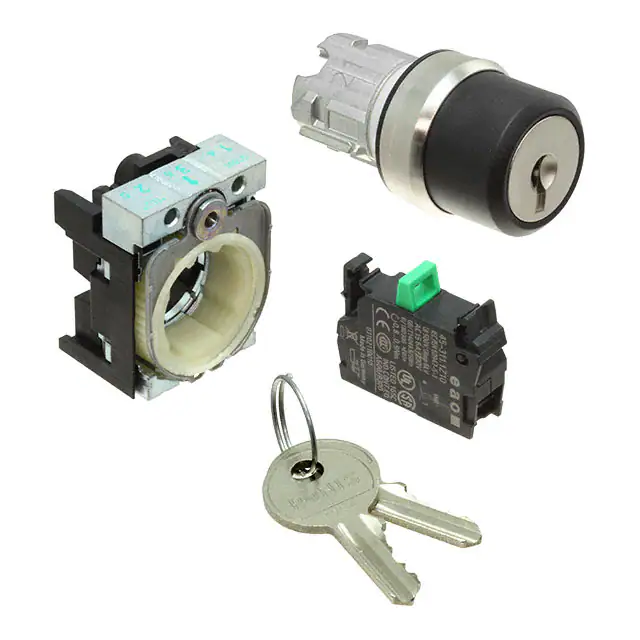

45-190H.2000.111.101SWITCH KEYLCK 2POS SPST 10A 500V |
1,407 |
|
Datasheet |
45 | Bulk | Active | SPST-NO | 2 | Not Specified | 10A (AC/DC) | 500 V | Off-On | 500 V | Flat Key | All | 90° | Silver (Ag) | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP66, IP67, IP69K | -25°C ~ 70°C |
|
A22TK-2LR-21-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1,509 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO + SPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
5926ON-OFF KEY LOCK SWITCH - 12MM DI |
4,165 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Not Specified | 500mA (AC/DC) | 250 V | Off-On | 250 V | Flat Key | All | 90° | - | Circular - 12.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
5929MOMENTARY ON/OFF ROUND KEY LOCK |
4,589 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Not Specified | - | - | Off-On | - | Tubular Key | All | 90° | - | Circular - 12.00mm Dia | Silver | Wire Leads | Panel Mount | - | - |
|
|
5927ON/OFF ROUND KEY LOCK - 12MM DIA |
3,371 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Not Specified | - | - | Off-On | - | Tubular Key | All | 90° | - | Circular - 12.00mm Dia | Silver | Wire Leads | Panel Mount | - | - |
|
A22NK-2BM-01BA-G101SWITCH KEYLCK 2POS DPST 10A 120V |
2,324 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 2 | Not Specified | 10A (AC), 8A (DC) | 120 V | Off-On | 24 V | Flat Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP66 | -25°C ~ 70°C |
|
|
M-489-BXSWITCH KEYLOCK 2POS 5A 36V |
4,053 |
|
Datasheet |
- | Bulk | Active | - | 2 | Not Specified | 5A (DC) | - | Off-On | 36 V | Flat Key | 1 only | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
|
956-3127-BXSWITCH KEYLOCK 3POS 10A |
3,868 |
|
Datasheet |
956 | Bulk | Active | - | 3 | Not Specified | 10A (AC) | - | Off-On-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
M-550-BXSWITCH KEYLOCK 3POS 5A 36V |
2,183 |
|
Datasheet |
- | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | - | 36 V | Flat Key | 1 only | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
9622-01SWITCH KEYLOCK 2POS 5A 12V |
4,193 |
|
Datasheet |
95 | Bulk | Active | - | 2 | Not Specified | 5A (DC) | - | Off-On | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
51-401.036DSWITCH KEYLK 2POS DPST 100MA 42V |
2,094 |
|
Datasheet |
51 | Bulk | Active | DPST-NO | 2 | Not Specified | 100mA (AC/DC) | 42 V | Off-On | 42 V | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
|
M22-WRS-K11M22-WRS/K11 COMPLETE DEVICE FRO |
2,309 |
|
Datasheet |
M22 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 6A (AC), 3A (DC) | 115 V | On-Off, Off-On | 24 V | Flat Key | All | 90° | - | Circular - 22.50mm Dia | - | Screw Terminal | Panel Mount | - | -25°C ~ 70°C |
|
|
51-414.036DFACTUATOR, 25 MM, 2 NO, REST (A) |
2,497 |
|
Datasheet |
51 | Bag | Active | DPST-NO | 2 | - | 100mA (AC/DC) | 42 V | Off-On | 42 V | Flat Key | Right | 90° | Gold (Au) | Circular - 22.30mm Dia | Gold | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
XB4BG21SWITCH KEYLOCK 2POS SPST 6A 120V |
3,996 |
|
Datasheet |
Harmony XB4 | Box | Active | SPST-NO | 2 | Not Specified | 6A (AC), 550mA (DC) | 120 V | Off-On | 125 V | Flat Key | Left and Right | 90° | Silver Alloy | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
|
XB5AG21SWITCH KEYLOCK 2POS SPST 6A 120V |
4,056 |
|
Datasheet |
Harmony XB5 | Box | Active | SPST-NO | 2 | Not Specified | 6A (AC), 550mA (DC) | 120 V | Off-On | 125 V | Flat Key | Left | 90° | Silver Alloy | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
|
|
XB4BG41SWITCH KEYLOCK 2POS SPST 6A 120V |
1,204 |
|
Datasheet |
Harmony XB4 | Box | Active | SPST-NO | 2 | Not Specified | 6A (AC), 550mA (DC) | 120 V | Off-On | 125 V | Flat Key | All | 90° | Silver Alloy | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
