Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
81942-05SWITCH KEYLOCK |
1,299 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

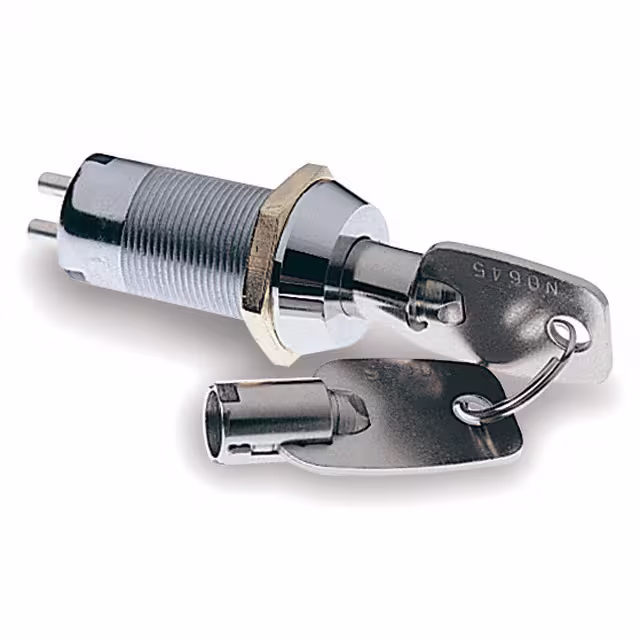

KO114A10001SWITCH KEYLOCK 3POS SPDT 4A 125V |
1,794 |
|
Datasheet |
KO | Bulk | Active | SPDT | 3 | Not Specified | 4A (AC) | 125 V | On-Off-On | - | Tubular Key | All | 45° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO130D1A126SWITCH KEYLOCK 3POS DP3T 4A 125V |
4,072 |
|
Datasheet |
KO | Bulk | Active | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | 28 V | Flat Key | 5 only | 45° | Copper Alloy | - | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO130Q606SWITCH KEYLOCK 2POS DPDT 4A 125V |
1,979 |
|
Datasheet |
KO | Bulk | Active | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | 28 V | Flat Key | 5 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|

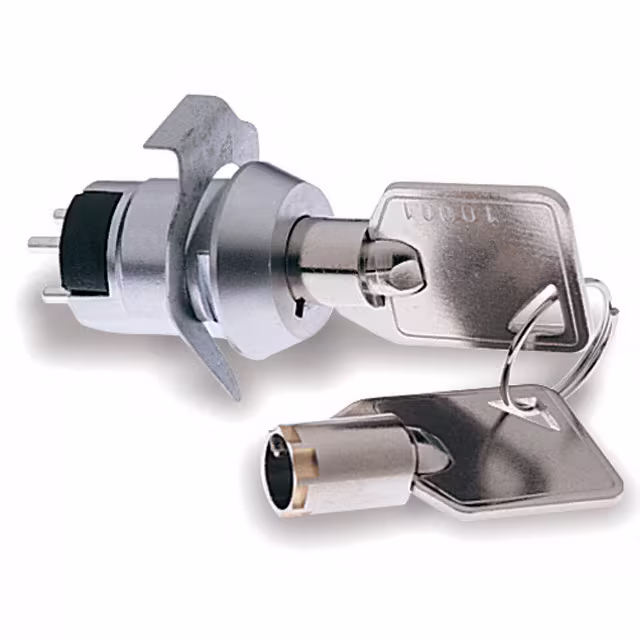

KO124A10001SWITCH KEYLOCK 2POS SPST 2A 125V |
4,680 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 2A (AC) | 125 V | Off-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO124C10001SWITCH KEYLOCK 2POS SPDT 2A 125V |
4,464 |
|
Datasheet |
KO | Bulk | Active | SPDT | 2 | Not Specified | 2A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|

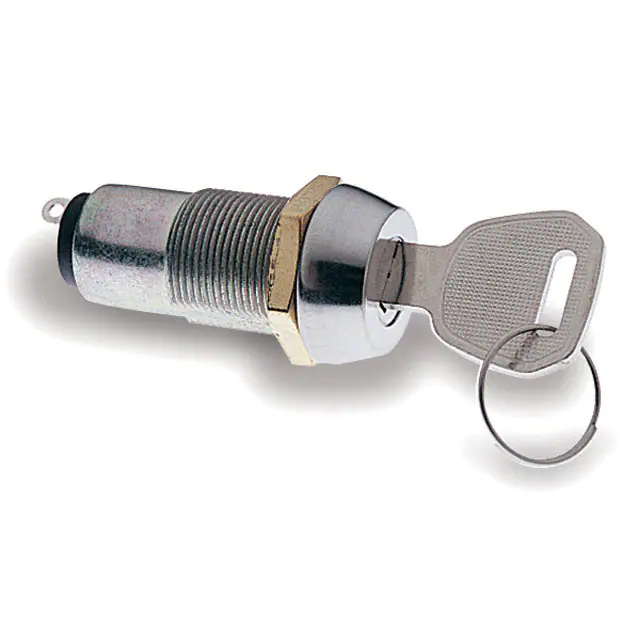

KO119B7325SWITCH KEYLOCK 2POS SPST 4A 125V |
3,279 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO130MA126-BLKSwitches |
2,006 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KO119A7318SWITCH KEYLOCK 2POS SPST 4A 125V |
3,191 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO121A-8025SWITCH KEYLOCK 2POS SPST 4A 125V |
4,939 |
|
Datasheet |
KO | Bulk | Obsolete | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
KO113B10001SWITCH KEYLOCK 2POS SPST 4A 125V |
2,123 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO130Z2R5700SWITCH KEYLOCK 3POS SP4T 4A 125V |
2,799 |
|
Datasheet |
KO | Bulk | Active | SP4T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On-On | 28 V | Flat Key | 3 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7302SWITCH KEYLOCK 2POS SPST 4A 125V |
2,624 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7303SWITCH KEYLOCK 2POS SPST 4A 125V |
3,725 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7304SWITCH KEYLOCK 2POS SPST 4A 125V |
1,755 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7305SWITCH KEYLOCK 2POS SPST 4A 125V |
4,598 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7306SWITCH KEYLOCK 2POS SPST 4A 125V |
4,728 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7307SWITCH KEYLOCK 2POS SPST 4A 125V |
4,846 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7309SWITCH KEYLOCK 2POS SPST 4A 125V |
1,047 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO119A7310SWITCH KEYLOCK 2POS SPST 4A 125V |
1,697 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
