Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10403RNZQSWITCH ROTARY 4POS 2.5A 125V |
1,252 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A40203RNZQSWITCH ROTARY 2POS 2.5A 125V |
3,052 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A20603RNMCQSWITCH ROTARY 6POS 2.5A 125V |
4,051 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | Modular Base | 14.48mm |
|
A10503RNZQSWITCH ROTARY 5POS 2.5A 125V |
3,744 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A10615RNZQSWITCH ROTARY 6POS 2.5A 125V |
1,992 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A10515RNZQSWITCH ROTARY 5POS 2.5A 125V |
4,307 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A12415RNCQSWITCH ROTARY 4POS 2.5A 125V |
2,710 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 90° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A21415RNCQSWITCH ROTARY 2POS 2.5A 125V |
3,094 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 90° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A10803RNCQSWITCH ROTARY 8POS 2.5A 125V |
1,004 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A40215RNZQSWITCH ROTARY 2POS 2.5A 125V |
2,072 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
A30415RNCQESWITCH ROTARY 4POS 2.5A 125V |
4,608 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
R20307RR02QESWITCH ROTARY 3POS 5A 125V |
2,594 |
|
Datasheet |
R | Tube | Active | 3 | Fixed | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 1 | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 36° | Silver | Copper | PC Pin | Epoxy Sealed Terminals | 10.29mm |
|
R10005RN03QESWITCH ROTARY 10POS 5A 125V |
1,285 |
|
Datasheet |
R | Bag | Active | 10 | Continuous | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | 1 | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | - | 36° | Silver | Copper | Solder Lug | Epoxy Sealed Terminals | - |
|
A20314RNCQSWITCH ROTARY 3POS 2.5A 125V |
4,252 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A10703MNCQSWITCH ROTARY 7POS 2.5A 125V |
2,766 |
|
Datasheet |
A | Tray | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A20515RNZQSWITCH ROTARY 5POS 2.5A 125V |
2,968 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
212T0111S332RASWITCH ROTARY 11POS 750MA 125V |
1,879 |
|
Datasheet |
212 | Bulk | Active | 11 | Fixed | 1 | SP11T | Shorting (MBB) | 1 | 750mA (AC), 250mA (DC) | 125 V | 28 V | Round (6.35mm Dia) | 15.90mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 22.17mm |
|

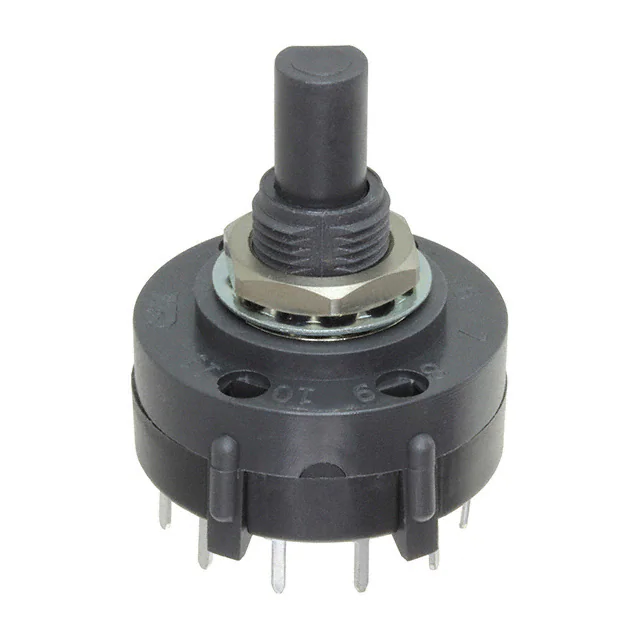

A20603RNCQSWITCH ROTARY 6POS 2.5A 125V |
4,507 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
A20615RNZQSWITCH ROTARY 6POS 2.5A 125V |
3,181 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A12505RNCQSWITCH ROTARY 8POS 2.5A 125V |
1,686 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 45° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
