Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
48ASDP1S2V2RBTSWITCH SLIDE DPDT 0.4VA 20V |
2,634 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 7.24mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
19.03201.011K2 SWITCH EXTRA GOLD CONTACTS |
2,125 |
|
Datasheet |
1K2 | Bulk | Active | SPDT | Not Specified | 500mA (AC/DC) | 24 V | 24 V | On-On | Standard | 1.40mm | - | Gold | Through Hole | PC Pin | - |
|
TS01WBESWITCH SLIDE SPDT 0.4VA 20V |
1,723 |
|
Datasheet |
TS | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
L123032TS03QSWITCH SLIDE SP3T 4A 125V |
1,242 |
|
Datasheet |
L | Bulk | Active | SP3T | Not Specified | 4A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Standard | 9.53mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
TG36W010000SWITCH SLIDE SPDT 500MA 48V |
4,042 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard | 3.00mm | Brass | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
TG39W000000SWITCH SLIDE SPDT 0.4VA 20V |
3,484 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
TG36WS80050SWITCH SLIDE SPDT 0.4VA 20V |
4,296 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.00mm | Brass | Gold | Surface Mount, Right Angle | Gull Wing | Washable |
|
|
L202011MS02GESWITCH SLIDE DPDT 4A 125V |
2,028 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
8-1825011-1SWITCH SLIDE DPDT 0.3A 115V |
4,250 |
|
Datasheet |
ASF | Tape & Reel (TR) | Active | DPDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | - |
|
1101M2S4V3QE2SWITCH SLIDE SPDT 6A 120V |
2,169 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 6.88mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
46256LFEXSWITCH SLIDE DPDT 3A 125V |
1,096 |
|
Datasheet |
46200E | Bulk | Active | DPDT | Non-Shorting (BBM) | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
|
|
L123012TS03QSWITCH SLIDE SP3T 4A 125V |
1,974 |
|
Datasheet |
L | Bulk | Active | SP3T | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On-Mom | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
1201M1S6ZQE2SWITCH SLIDE DPDT 6A 120V |
1,583 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 12.32mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
|
TG39P010000SWITCH SLIDE SPDT 500MA 48V |
4,994 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard | 3.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

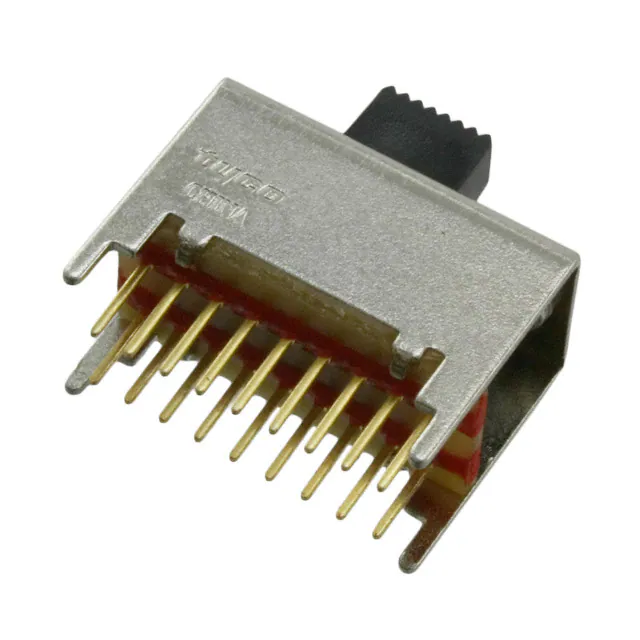

1825271-2SWITCH SLIDE 6PDT 0.4VA 20V |
3,219 |
|
Datasheet |
MSS | Bulk | Obsolete | 6PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 6.00mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1101M2S5AV2QE2SWITCH SLIDE SPDT 6A 120V |
4,115 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 9.40mm | Copper | Silver | Through Hole, Right Angle, Vertical | PC Pin | - |
|
1108M2S3CQE2SWITCH SLIDE SPDT 6A 120V |
1,918 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-Mom | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
4M1-SDP3-S4/2-VS2PESWITCH SLIDE DPDT 5A 125V |
4,247 |
|
Datasheet |
4M | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 3.55mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
1101M2S3AV2GE2SWITCH SLIDE SPDT 6A 120V |
2,482 |
|
Datasheet |
1000 | Tray | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1101M2S6ABE2SWITCH SLIDE SPDT 0.4VA 20V |
2,668 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 11.96mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
