Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG39W010050SWITCH SLIDE SPDT 500MA 48V |
3,672 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard | 3.00mm | Brass | Silver | Through Hole, Right Angle | PC Pin | Washable |
|
1203M2S1AQE2SWITCH SLIDE DPDT 6A 120V |
4,669 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-Off-On | Standard | 0.66mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

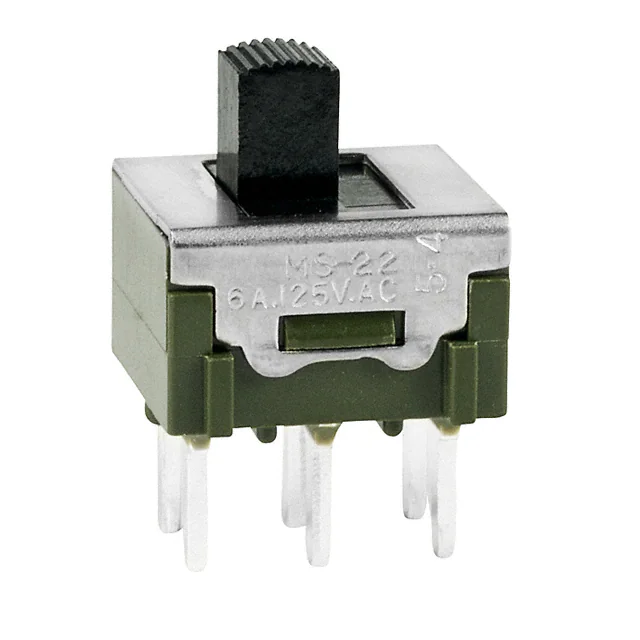

MS22ANW03SWITCH SLIDE DPDT 6A 125V |
2,022 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825469-1SWITCH SLIDE 4PDT 300MA 115V |
3,330 |
|
Datasheet |
ASF | Tube | Active | 4PDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
|
TG36W010050SWITCH SLIDE SPDT 500MA 48V |
1,642 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard | 3.00mm | Brass | Silver | Through Hole, Right Angle | PC Pin | Washable |
|
TSS11DG1RASWITCH SLIDE SPDT 0.4VA 20V |
1,222 |
|
Datasheet |
TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flush | Flush | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

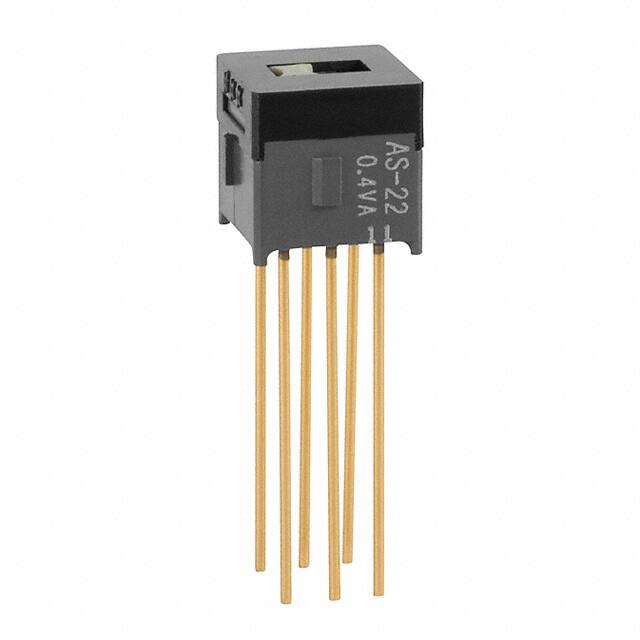

AS22BWSWITCH SLIDE DPDT 0.4VA 28V |
4,184 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
|
GH36Y400001SWITCH SLIDE SPDT 0.4VA 20V |
4,254 |
|
Datasheet |
G | Tube | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.70mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
TG39Y010050SLIDE SWITCH TG PCB MOUNT |
3,717 |
|
Datasheet |
TG | Bulk | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | - |
|
|
GC36WW10001SLIDE SWITCH G TELECOM GRADE |
4,824 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | 3A (DC) | - | 30 V | On-On | Standard | 3.50mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
GH36Y410001SWITCH SLIDE SPDT 3A 30V |
3,970 |
|
Datasheet |
G | Tube | Active | SPDT | Not Specified | 3A (DC) | - | 30 V | On-On | Standard | 4.70mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA3450SWITCH SLIDE 3P4T 300MA 125V |
4,380 |
|
Datasheet |
MSSA | Bulk | Obsolete | 3P4T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On-On | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1201M2T3CBE2SWITCH SLIDE DPDT 0.4VA 20V |
4,991 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
GH36W000000SLIDE SWITCH G TELECOM GRADE |
2,814 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.10mm | Brass | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
1203M2S4CQE2SWITCH SLIDE DPDT 6A 120V |
2,097 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-Off-On | Standard | 7.24mm | Copper | Silver | Through Hole | PC Pin | - |
|
1825010-2SWITCH SLIDE DPDT 0.4VA 20V |
1,044 |
|
Datasheet |
ASE | Bulk | Active | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|

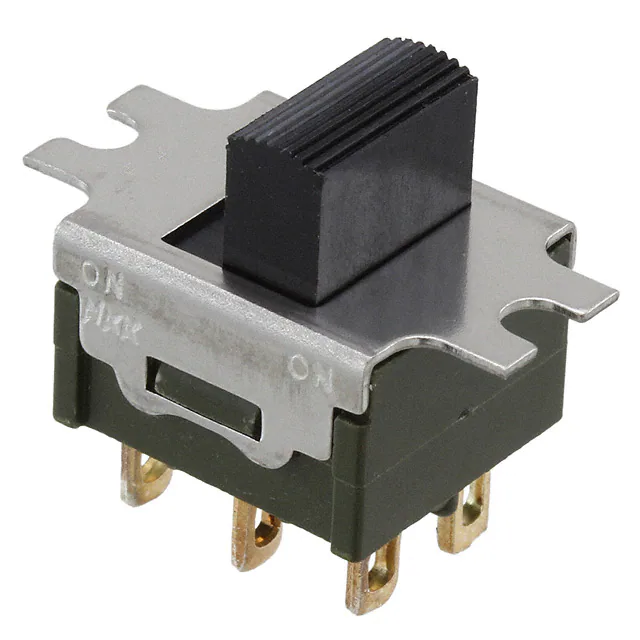

MS22BFW01SWITCH SLIDE DPDT 6A 125V |
1,931 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MS22AFW01/CULSWITCH SLIDE DPDT 6A 125V |
1,524 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
1203M1S3ZQE2SWITCH SLIDE DPDT 6A 120V |
4,828 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-Off-On | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
|
GH36W010001SWITCH SLIDE SPDT 3A 30V |
2,568 |
|
Datasheet |
G | Tube | Active | SPDT | Not Specified | 3A (DC) | - | 30 V | On-On | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
