Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7203SD9V3BESWITCH TOGGLE DPDT 0.4VA 20V |
1,244 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203MD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
1,681 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

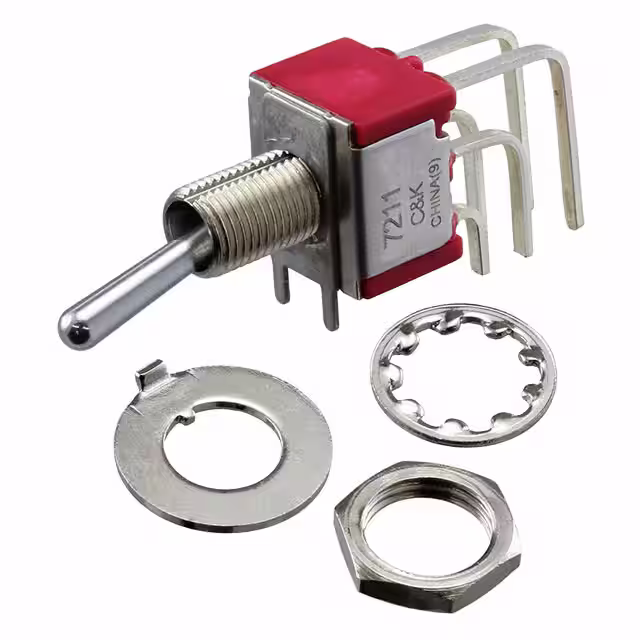

7211SYAV2QESWITCH TOGGLE SP3T 5A 120V |
4,659 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
S332RSWITCH TOGGLE DPDT 20A 125V |
3,578 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Flatted | 27.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Black Actuator | -10°C ~ 70°C |
|
WT12SSWITCH TOGGLE SPDT 10A 125V |
4,202 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

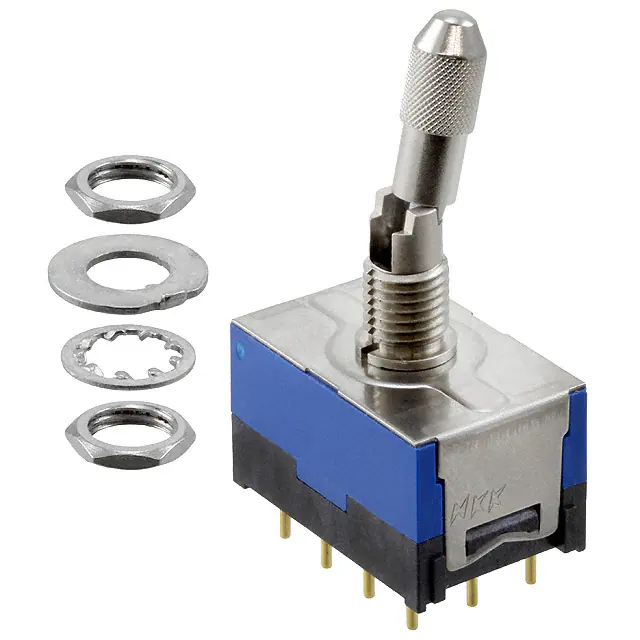

D22042LPSWITCH TOGGLE 4PDT 0.4VA 48V |
1,071 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
S31FSWITCH TOGGLE 3PST 20A 125V |
4,022 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
ET315E12-ZSWITCH TOGGLE 3PDT 15A 125V |
4,656 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

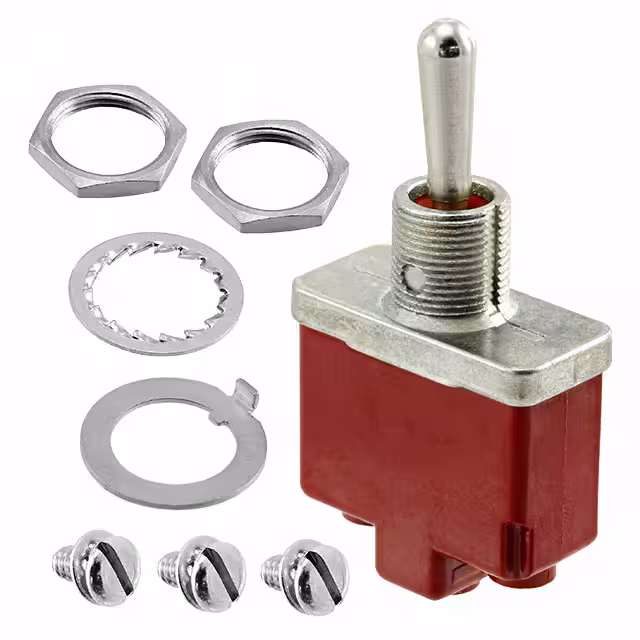

CT39001N020SWITCH TOGGLE SPDT 10A 125V |
3,848 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
5592SWITCH TOGGLE DPDT 15A 24V |
3,758 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 15A (DC) | - | 24 V | On-Off-On | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
M-54111-01SWITCH TOGGLE SPST 25A 12V |
2,635 |
|
Datasheet |
M-54111 | Bulk | Active | Panel Mount | SPST | 25A (DC) | - | 12 V | On-Off | Standard Round | 17.46mm | Illuminated | Incandescent, Red | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
S339SWITCH TOGGLE DPDT 15A 125V |
2,186 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7401T1ZQESWITCH TOGGLE 4PDT 5A 120V |
1,637 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3D9V3QESWITCH TOGGLE DPDT 5A 120V |
4,446 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K12CWAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,490 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5590SWITCH TOGGLE DPDT 15A 24V |
2,001 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 15A (DC) | - | 24 V | On-On | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|

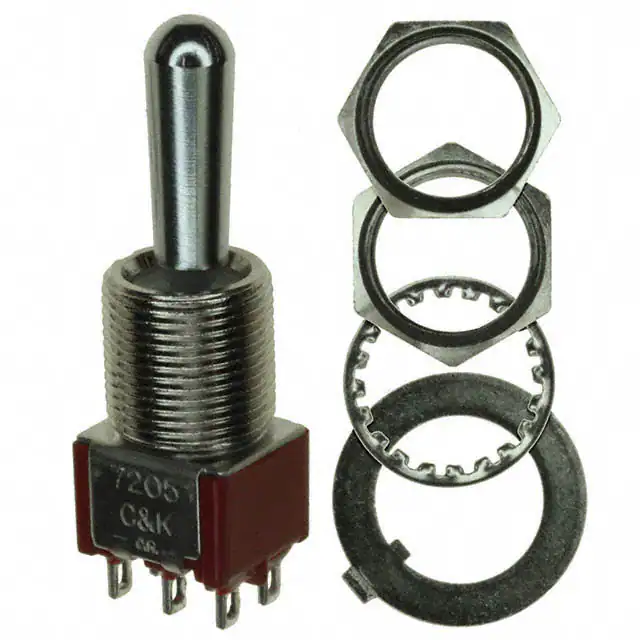

7205TZQESWITCH TOGGLE DPDT 5A 120V |
2,733 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

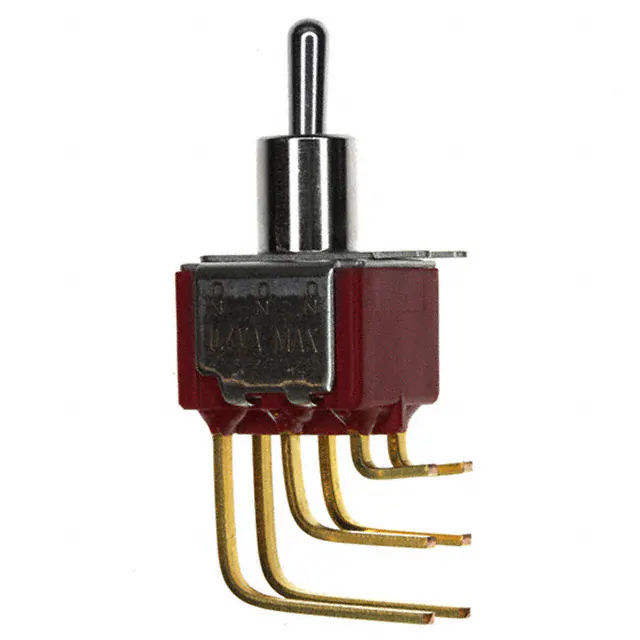

7211MD9AV2BESWITCH TOGGLE SP3T 0.4VA 20V |
3,069 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

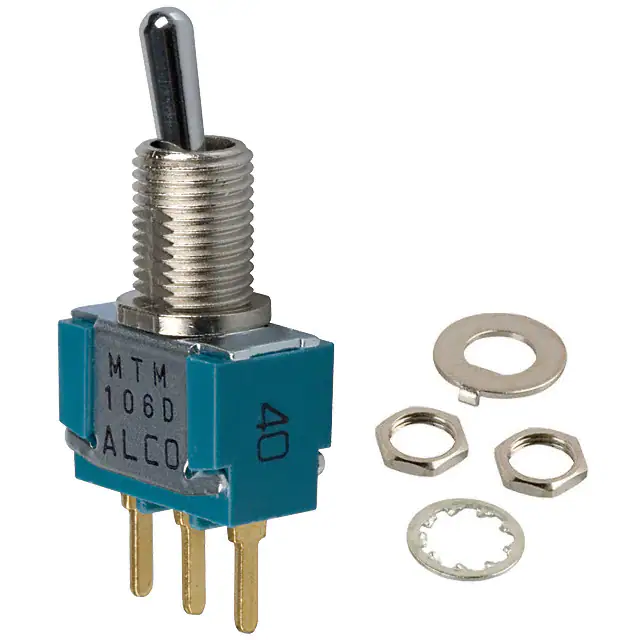

MTM106DPCSWITCH TOGGLE SPDT 6A 125V |
3,795 |
|
Datasheet |
MTM Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 6.90mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
7201K12AQEGSWITCH TOGGLE DPDT 5A 120V |
4,225 |
|
Datasheet |
7000 | Bag | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
