Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7208K12ZQESWITCH TOGGLE DPDT 5A 120V |
2,031 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203K2ZQEGSWITCH TOGGLE DPDT 5A 120V |
2,073 |
|
Datasheet |
7000 | Bag | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7215P3YZQESWITCH TOGGLE SP3T 5A 120V |
2,743 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7101K9CBESWITCH TOGGLE SPDT 0.4VA 20V |
4,279 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7301SYAV2QESWITCH TOGGLE 3PDT 5A 120V |
2,781 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

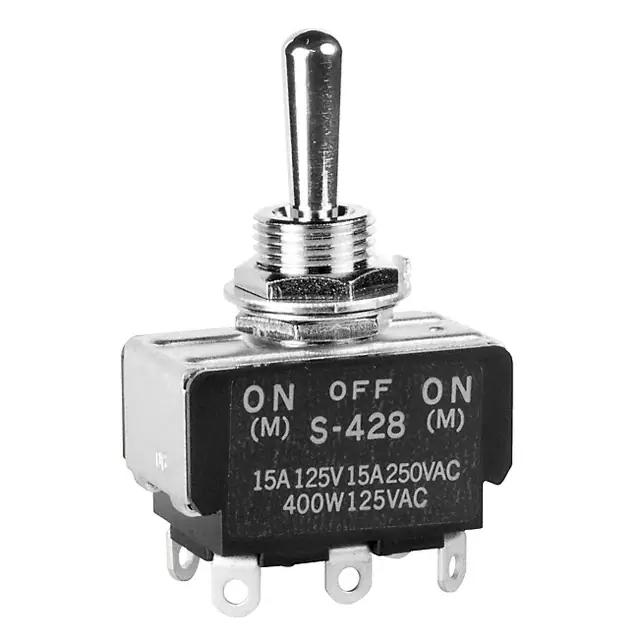

S428SWITCH TOGGLE DPDT 15A 125V |
3,426 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
5259ABSWITCH TOGGLE 3PDT 6A 125V |
1,571 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
T208SH9AVBESWITCH TOGGLE DPDT 0.4VA 20V |
4,567 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7301SYZGESWITCH TOGGLE 3PDT 5A 120V |
1,844 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P1YCQISWITCH TOGGLE DPDT 5A 120V |
3,448 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
|
TS131SZQ2SWITCH TOGGLE SPDT 6A 125V |
4,118 |
|
Datasheet |
TS | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-Mom | Knurled Cap | 10.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 11/16-28 | Circular - 17.53mm Dia | Black Actuator | -30°C ~ 85°C |
|
|
TS121SZQ2SWITCH TOGGLE SPDT 6A 125V |
2,567 |
|
Datasheet |
TS | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Knurled Cap | 10.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 11/16-28 | Circular - 17.53mm Dia | Black Actuator | -30°C ~ 85°C |
|
T203S1CFABESWITCH TOGGLE DPDT 0.4VA 20V |
3,557 |
|
Datasheet |
T | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7211T1CWCQESWITCH TOGGLE SP3T 5A 120V |
4,325 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
TL42WW05000SWITCH TOGGLE DPDT 0.4VA 20V |
2,998 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S28AW-WLSWITCH TOGGLE DPDT 15A 125V |
2,295 |
|
Datasheet |
S | Box | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

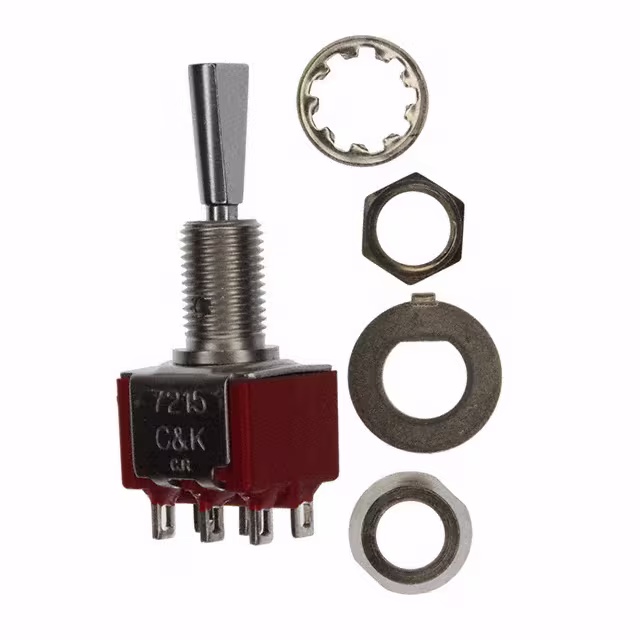

7215P3Y4ZQESWITCH TOGGLE SP3T 5A 120V |
3,204 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7307SHAGESWITCH TOGGLE 3PDT 5A 120V |
4,431 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S25AW-WLSWITCH TOGGLE DPDT 15A 125V |
4,465 |
|
Datasheet |
S | Box | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

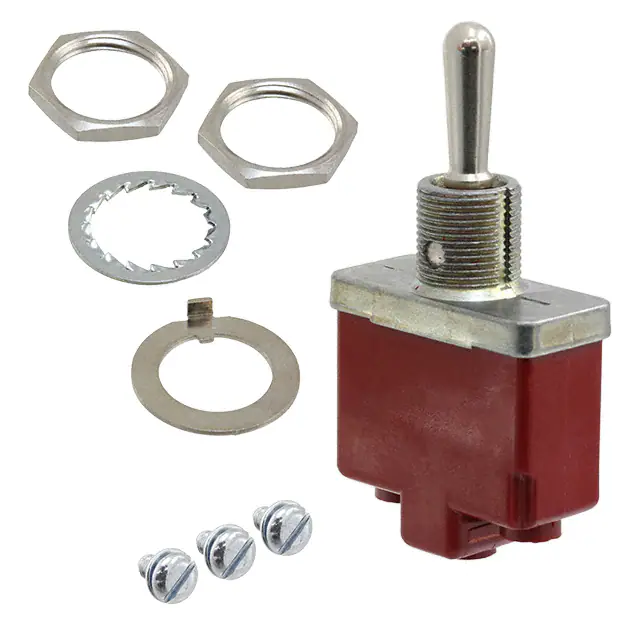

CT37001N000SWITCH TOGGLE SPDT 10A 125V |
3,402 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | 10A (AC), 15A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
