Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201K12ZQISWITCH TOGGLE DPDT 5A 120V |
3,885 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
|

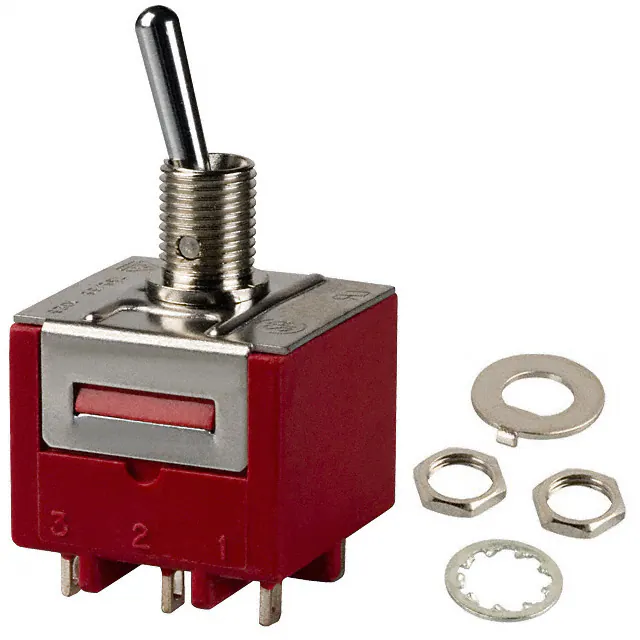

9201SH3ZQESWITCH TOGGLE DPDT 6A 120V |
3,841 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CT31021N022SWITCH TOGGLE SPST 10A 125V |
1,200 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | 10A (AC), 15A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|

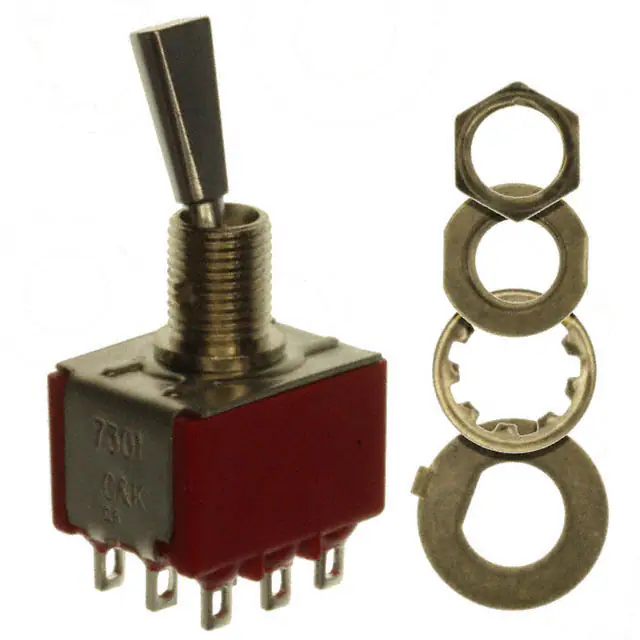

7301P3HZQESWITCH TOGGLE 3PDT 5A 120V |
1,788 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
655HSWITCH TOGGLE 3PDT 10A 250V |
3,842 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | 3PDT | 10A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
7305SYZQESWITCH TOGGLE 3PDT 5A 120V |
3,069 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55054SWITCH TOGGLE DPDT 15A 24V |
2,433 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
S9AW-WLSWITCH TOGGLE SPDT 15A 125V |
4,081 |
|
Datasheet |
S | Box | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

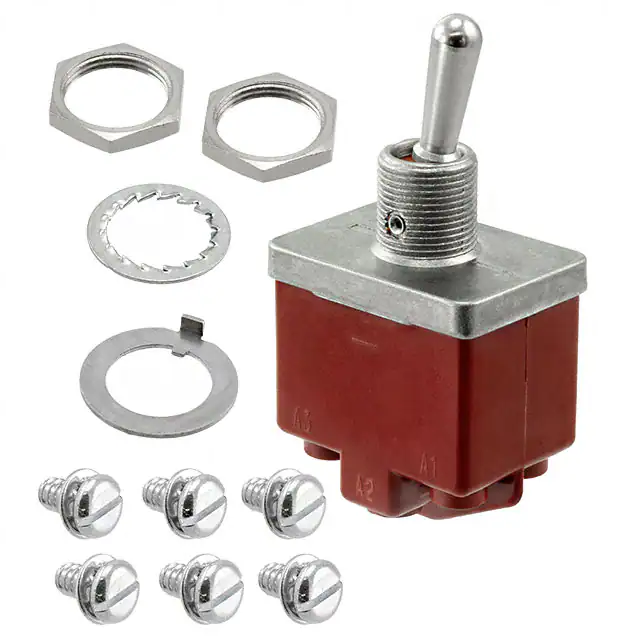

CT46001N000SWITCH TOGGLE DPDT 10A 125V |
2,878 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|

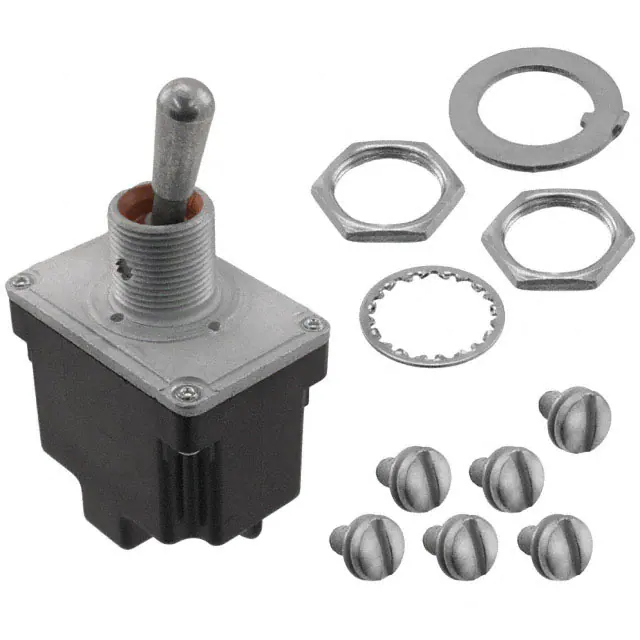

2TL1-31SWITCH TOGGLE DPDT 15A 125V |
2,260 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12TL1-2SWITCH TOGGLE DPST 15A 125V |
1,601 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

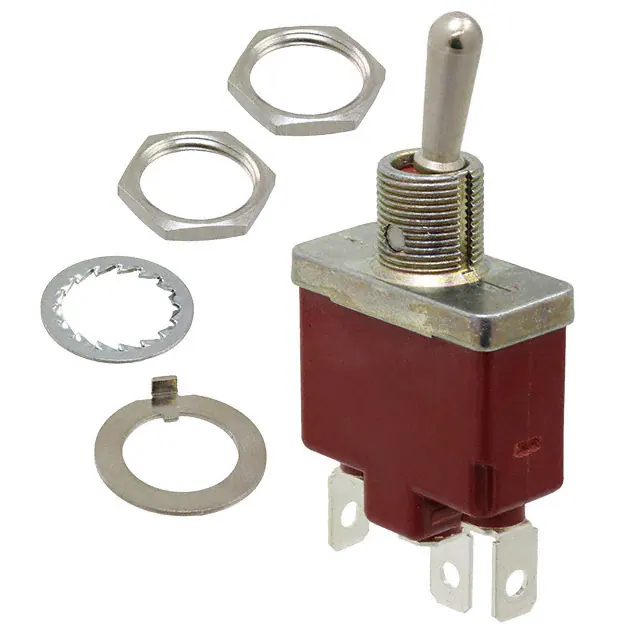

CT36021N020SWITCH TOGGLE SPDT 10A 125V |
1,114 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|

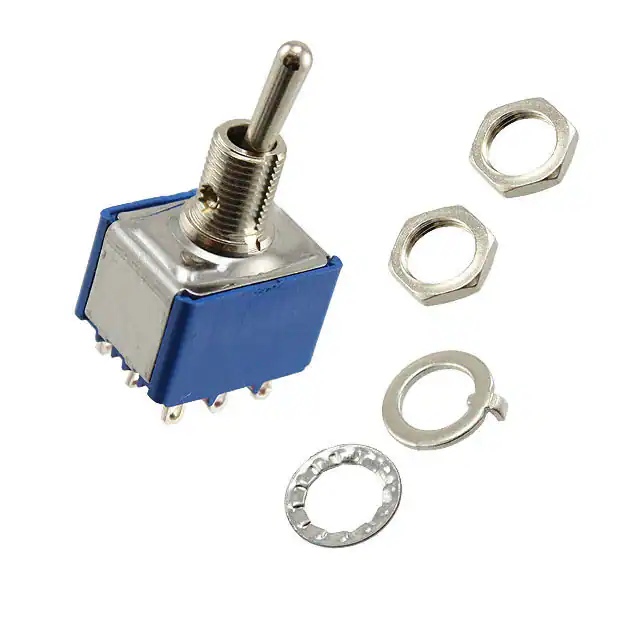

5656ABSWITCH TOGGLE 3PDT 6A 125V |
1,058 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5237MCDBSWITCH TOGGLE SPDT 0.4VA 20V |
2,992 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

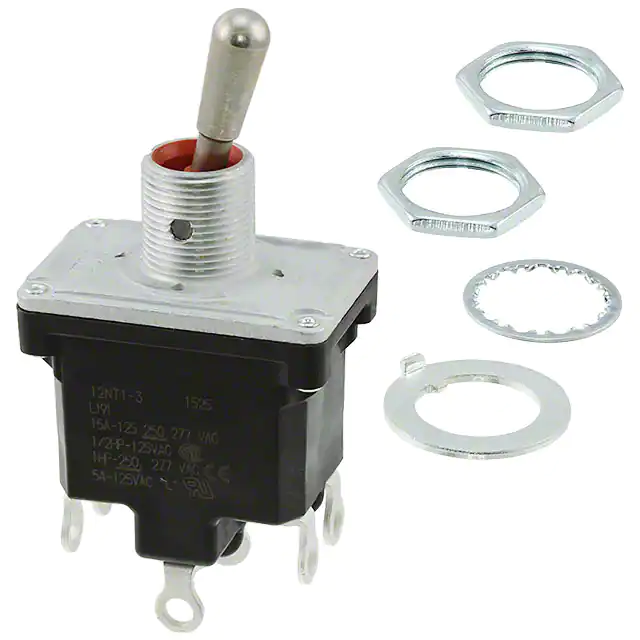

12NT1-3SWITCH TOGGLE DPDT 15A 125V |
2,579 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | Sealed | -65°C ~ 71°C |
|
S29AW-WLSWITCH TOGGLE DPDT 15A 125V |
2,407 |
|
Datasheet |
S | Box | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7401MPDCBESWITCH TOGGLE 4PDT 0.4VA 20V |
4,861 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3631NF/2GSWITCH TOGGLE SPST 6A 125V |
1,667 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | SPST | 6A (AC), 12A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
657NH/2SWITCH TOGGLE 3PDT 10A 250V |
3,523 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | 3PDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
11139AKSWITCH TOGGLE SPDT 4A 125V |
1,914 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | 4A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
