Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A18APSWITCH TOGGLE SPDT 0.4VA 28V |
1,585 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

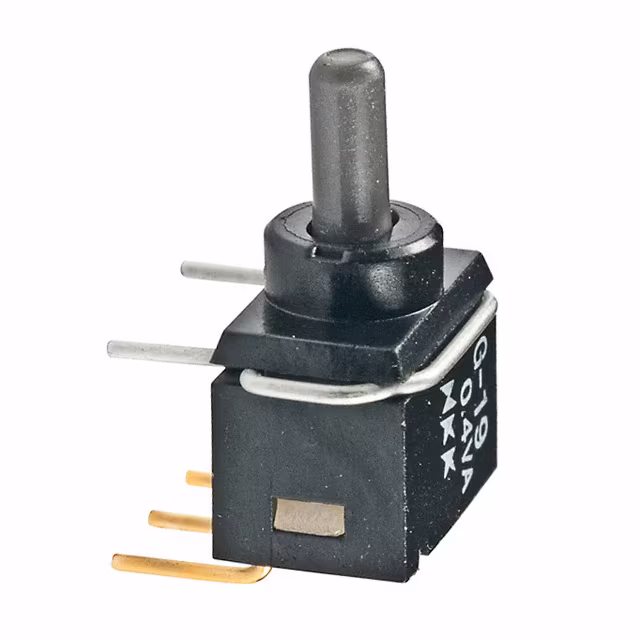

G19AHSWITCH TOGGLE SPDT 0.4VA 28V |
4,038 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

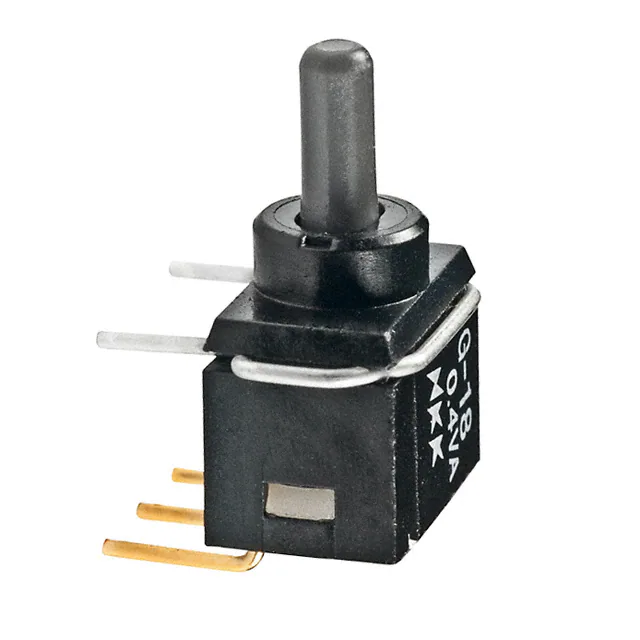

G18AHSWITCH TOGGLE SPDT 0.4VA 28V |
2,029 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
MN12S2A2W30SWITCH TOGGLE |
3,950 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN12ES1W03SWITCH TOGGLE |
4,590 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SS4G03SWITCH TOGGLE 0.4VA 28V |
4,449 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | - |
|
A1SAV1SWITCH TOGGLE SPDT 0.4VA 28V |
3,332 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
472133010111SWITCH TOGGLE DPDT 1A 30V |
1,028 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | DPDT | 1A (DC) | - | 30 V | On-Off-On | Standard Round | 10.70mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -40°C ~ 85°C |
|
|
MN12ES1W01SWITCH TOGGLE |
4,279 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SD3W03SWITCH TOGGLE |
3,710 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
5558SWITCH TOGGLE SPST 10A 12V |
1,047 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 10A (DC) | - | 12 V | On-Off | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|

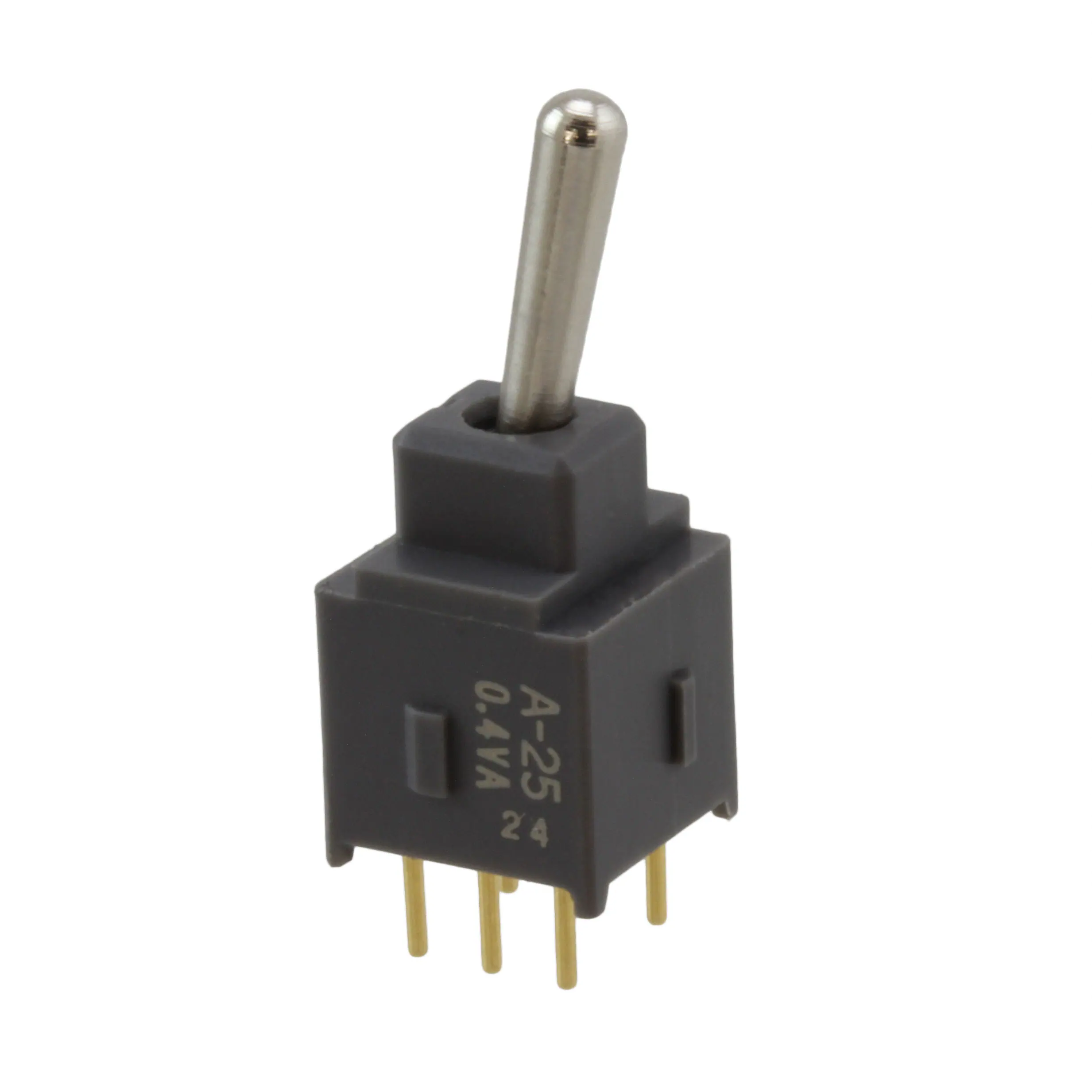

A25APSWITCH TOGGLE DPDT 0.4VA 28V |
1,823 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
MN22S3S4W01SWITCH TOGGLE |
2,907 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SS2G13SWITCH TOGGLE |
2,915 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

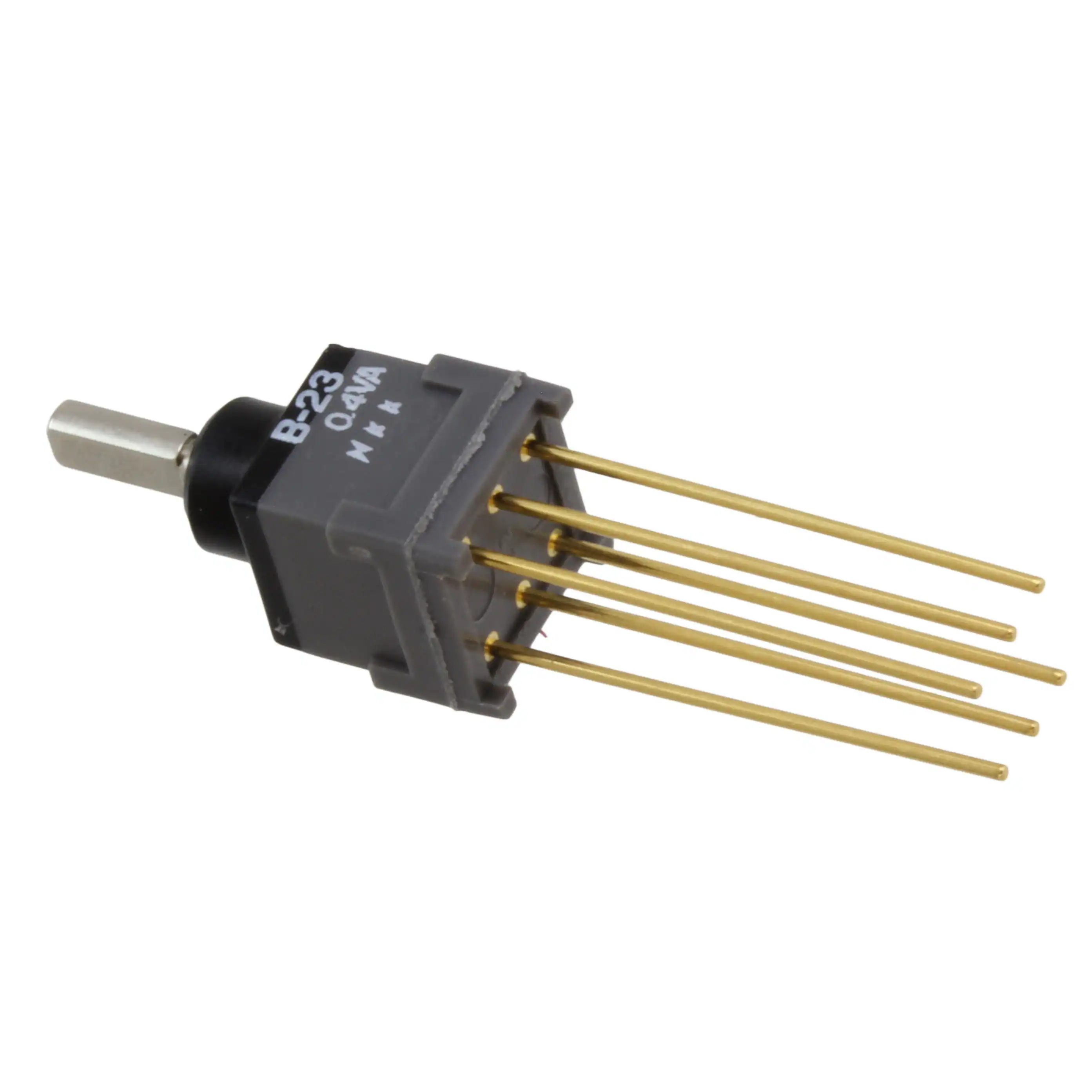

B23HWSWITCH TOGGLE DPDT 0.4VA 28V |
1,939 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B25AHSWITCH TOGGLE DPDT 0.4VA 28V |
2,890 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

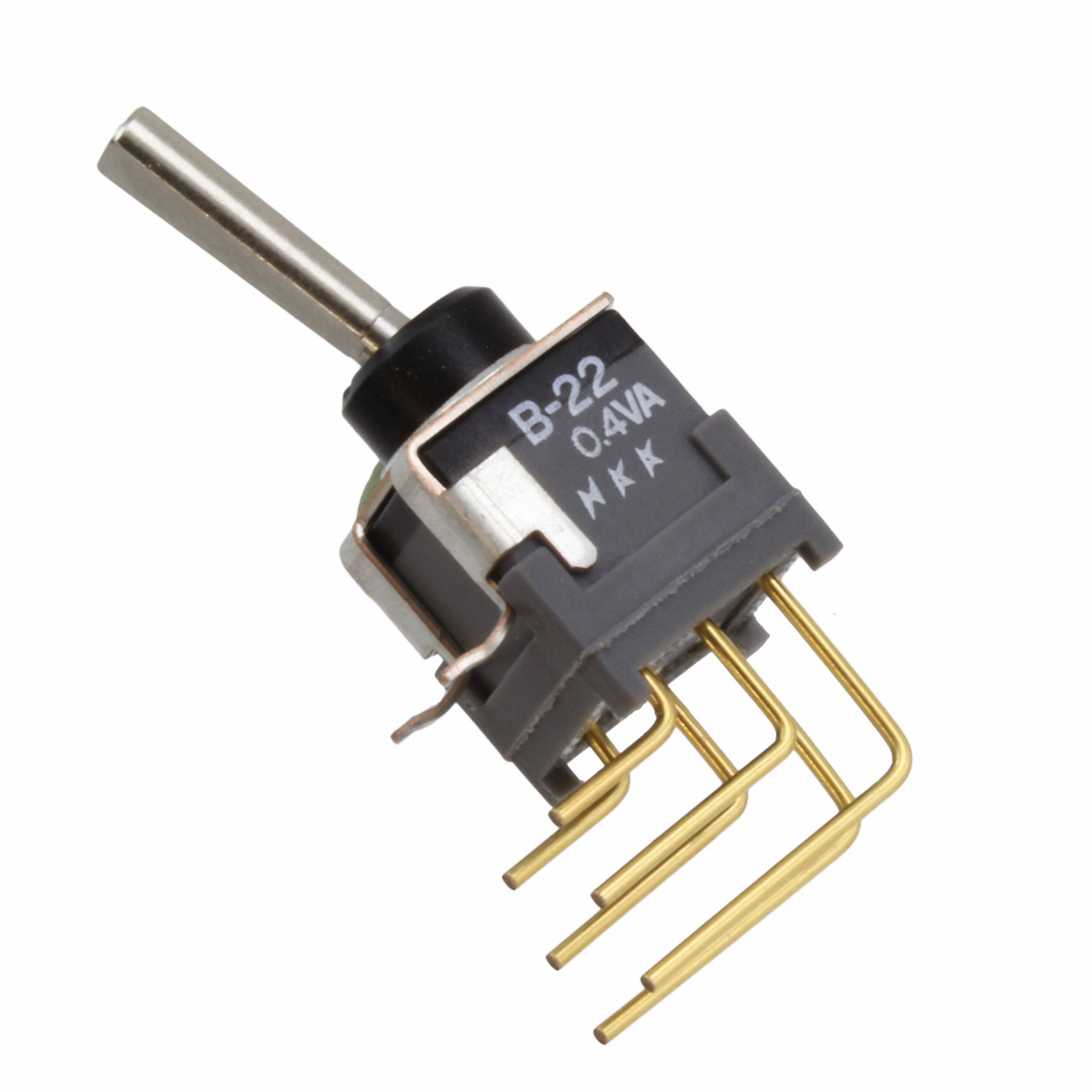

B22EVSWITCH TOGGLE DPDT 0.4VA 28V |
3,883 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A22JBSWITCH TOGGLE DPDT 0.4VA 28V |
3,640 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
472133020421SWITCH TOGGLE DPDT 1A 30V |
4,251 |
|
Datasheet |
WS-TOTV | Tray | Active | Through Hole, Right Angle | DPDT | 1A (DC) | - | 30 V | On-Off-On | Standard Round | 7.00mm | Non-Illuminated | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
B23LPSWITCH TOGGLE DPDT 0.4VA 28V |
3,168 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Locking Lever | 12.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
