Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22S2A2W40SWITCH TOGGLE |
1,339 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
A24AHSWITCH TOGGLE SP3T 0.4VA 28V |
1,130 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
54103SWITCH TOGGLE SPDT 25A 12V |
2,935 |
|
Datasheet |
54100 | Bulk | Active | Panel Mount | SPDT | 25A (DC) | - | 12 V | On-Off-On | Flatted | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
A2SHVSWITCH TOGGLE DPDT 0.4VA 28V |
3,548 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

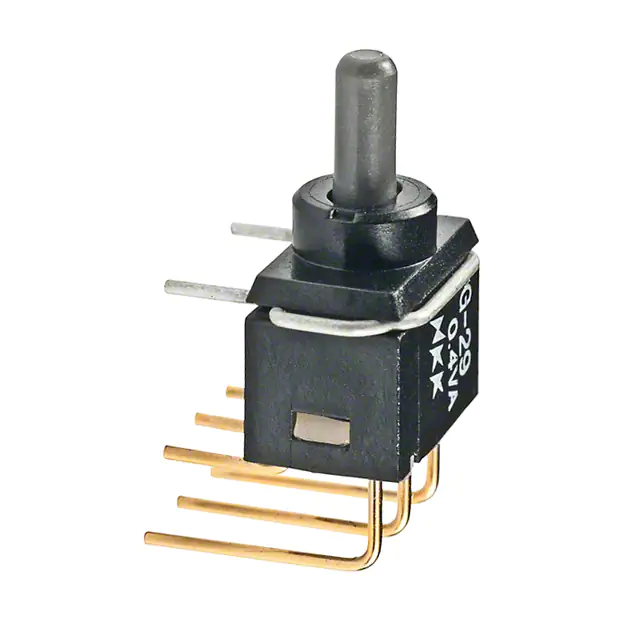

G29AHSWITCH TOGGLE DPDT 0.4VA 28V |
3,318 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
A26ABSWITCH TOGGLE SP3T 0.4VA 28V |
1,281 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
D22023PSWITCH TOGGLE DPDT 0.4VA 48V |
1,655 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
|
MN18EA1G01SWITCH TOGGLE |
3,858 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 13.21mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN11B2B1W01SWITCH TOGGLE |
1,348 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
B18A1PSWITCH TOGGLE SPDT 0.4VA 28V |
4,786 |
|
Datasheet |
B | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 8.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN22BB1W01SWITCH TOGGLE |
4,388 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12B2B3W01SWITCH TOGGLE |
3,050 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN18ES2G13SWITCH TOGGLE |
1,452 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN28SS1W01SWITCH TOGGLE |
3,787 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 4A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
ET215S12-ZSWITCH TOGGLE DPDT 15A 125V |
3,479 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
472133020311SWITCH TOGGLE DPDT 1A 30V |
4,044 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | DPDT | 1A (DC) | - | 30 V | On-Off-On | Standard Round | 7.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -40°C ~ 85°C |
|
A26EHSWITCH TOGGLE SP3T 0.4VA 28V |
4,158 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MN13B2B1W01SWITCH TOGGLE |
2,862 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN29ES1W01SWITCH TOGGLE |
3,947 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 4A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN28SS4G03SWITCH TOGGLE |
3,109 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
