Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55016-06-BPSWITCH TOGGLE SPDT 15A 24V |
2,547 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | - |
|
|
ETW115D12SWITCH TOGGLE SPDT 15A 127VAC |
1,449 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | 15A (AC) | 127 V | - | On-On | Standard Round | 16.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
A223S1YZQSWITCH TOGGLE DPDT 6A 125V |
4,081 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

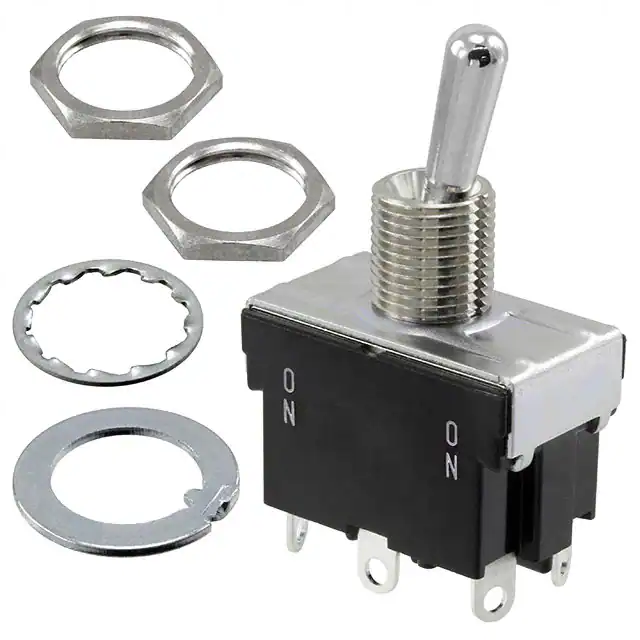

ET225P12-ZSWITCH TOGGLE DPDT 25A 125V |
2,524 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 25A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
55088SWITCH TOGGLE SPDT 15A 24V |
2,650 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | Mom-Off-On | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
MN32BB1W01SWITCH TOGGLE |
1,846 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | 4A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN22LL3W01-CSWITCH TOGGLE |
3,163 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN32SS4W03SWITCH TOGGLE |
2,736 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | 4A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
2GK721-D-3B-B/272-06747SWITCH TOGGLE DPST 20A 125V |
1,130 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

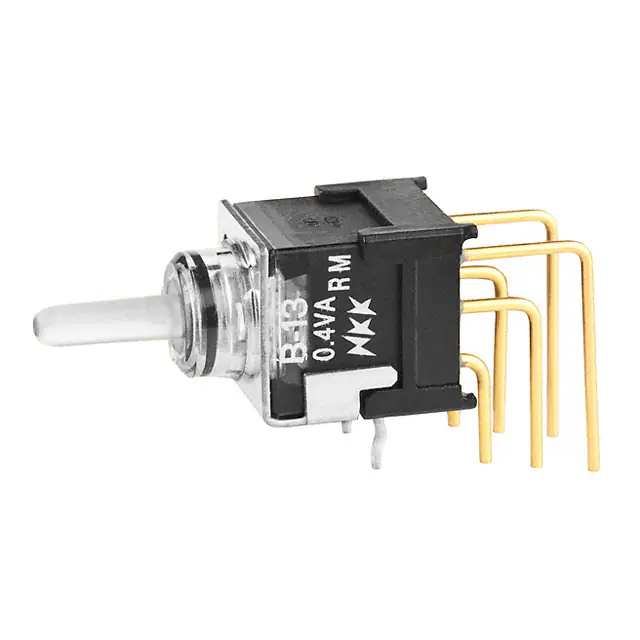

B13JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
3,071 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
MN28B2B1W03SWITCH TOGGLE |
2,666 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 4A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
ETW115E12SWITCH TOGGLE SPDT 15A 127VAC |
3,381 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | 15A (AC) | 127 V | - | On-Off-On | Standard Round | 16.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
MN24SS1G03SWITCH TOGGLE |
2,120 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12LL2G30SWITCH TOGGLE |
1,181 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN32SS2W30SWITCH TOGGLE |
1,363 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | 3PDT | 4A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
55055-01SWITCH TOGGLE SPST 15A 24V |
1,391 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 24 V | On-Off | Standard Round | 38.48mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
MN42SS1W03SWITCH TOGGLE |
4,161 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 4PDT | 4A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
ETW115G12SWITCH TOGGLE SPDT 15A 127VAC |
3,557 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | 15A (AC) | 127 V | - | Mom-Off-Mom | Standard Round | 16.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | - | - | -10°C ~ 70°C |
|
ATLE44D-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
3,789 |
|
Datasheet |
ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | 50mA (AC/DC) | 48 V | 48 V | On-On | Locking Lever | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -20°C ~ 85°C |
|
|
MTA206RSWITCH TOGGLE DPDT 6A 125V |
100 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
