Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

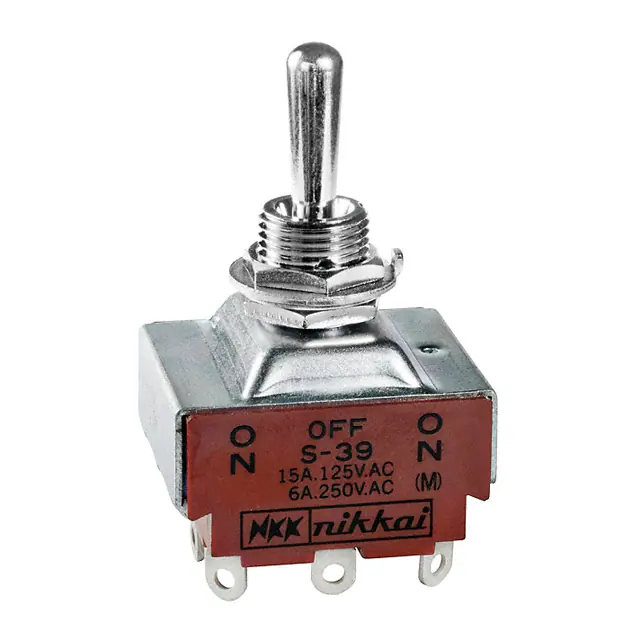

S39SWITCH TOGGLE 3PDT 15A 125V |
3,648 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
WT25TSWITCH TOGGLE DPDT 10A 125V |
2,341 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
MTL106ESWITCH TOGGLE SPDT 6A 125V |
2,132 |
|
Datasheet |
MTL Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Locking Lever | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
55025-02SWITCH TOGGLE SPDT 15A 24V |
3,676 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | On-Off-On | Standard Round | 15.30mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
55025-01SWITCH TOGGLE SPST-NO 15A 24V |
2,313 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NO | 15A (DC) | - | 24 V | Off-Mom | Standard Round | 15.30mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
55021-07SWITCH TOGGLE SPDT 15A 24V |
2,311 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
MN28WBW01SWITCH TOGGLE |
2,943 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 4A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

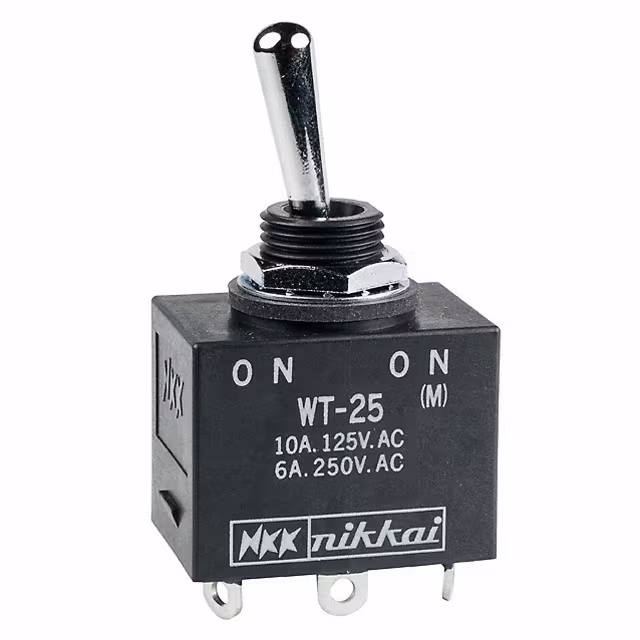

WT25SSWITCH TOGGLE DPDT 10A 125V |
2,704 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S49SWITCH TOGGLE 4PDT 15A 125V |
3,703 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
MN44BB1G01BUSHING MOUNT MINIATURE TOGGLE |
4,390 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

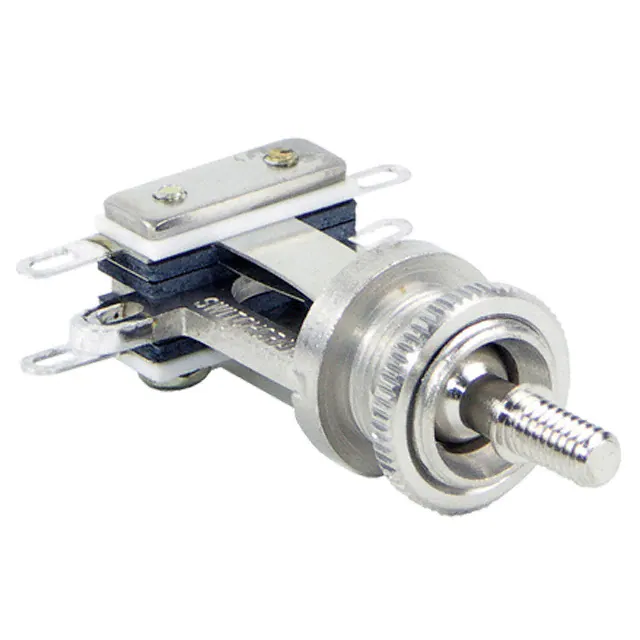

12120XSWITCH TOGGLE 3A |
4,037 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | - | 3A (AC) | - | - | On-On-On | - | - | Non-Illuminated | - | - | - | Solder Lug | - | - | - | - |
|

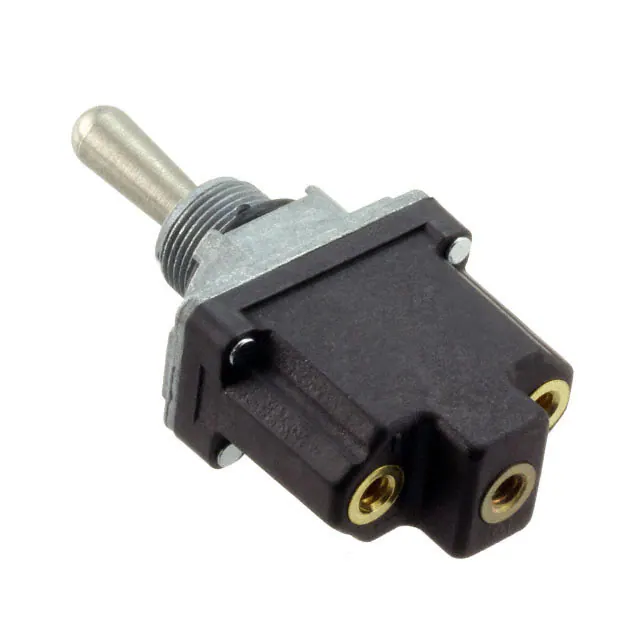

61NT1-7-NHSWITCH TOGGLE SPDT 10A 125V |
3,383 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|

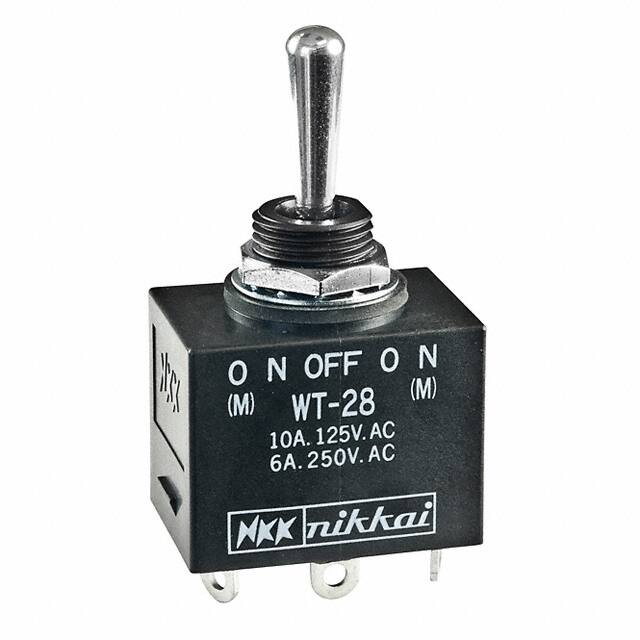

WT28SSWITCH TOGGLE DPDT 10A 125V |
3,234 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
|
32NT91-5SWITCH TOGGLE DPDT 10A 125V |
2,416 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
59071SWITCH TOGGLE DPDT 20A 12V |
2,844 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 20A (DC) | - | 12 V | Mom-On-Off | Flatted | 17.46mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
61NT1-8SWITCH TOGGLE SPDT 10A 125V |
100 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|

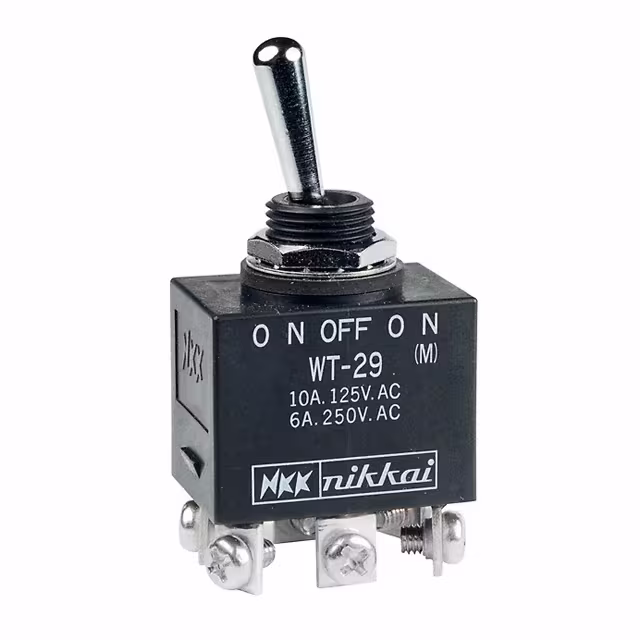

WT29TSWITCH TOGGLE DPDT 10A 125V |
4,630 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
|
A227S1CWZG-M8SWITCH TOGGLE DPDT 6A 125V |
1,736 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
MTA406NPCSWITCH TOGGLE 4PDT 6A 125V |
2,925 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MTF406NSWITCH TOGGLE 4PDT 6A 125V |
4,149 |
|
Datasheet |
MTF Green | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Flatted | 12.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
