Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825137-6SWITCH TOGGLE SPDT 5A 120V |
1,279 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A103P3ZQ04SWITCH TOGGLE SPDT |
4,822 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1825137-5SWITCH TOGGLE SPDT 0.4VA 20V |
4,374 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

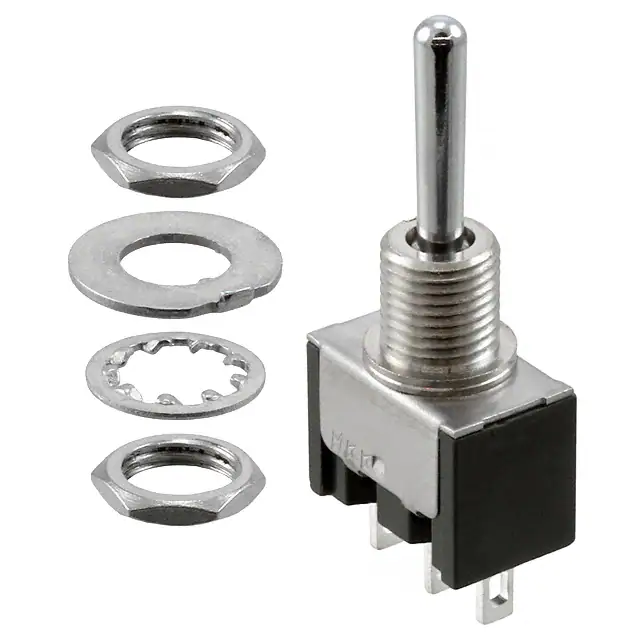

M2013SA1W01SWITCH TOGGLE SPDT 6A 125V |
1,340 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.27mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012Q4S4W01SWITCH TOGGLE SPDT 6A 125V |
1,033 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013Q4S1W01SWITCH TOGGLE SPDT 6A 125V |
2,504 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS4G03SWITCH TOGGLE SPDT 0.4VA 28V |
3,045 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2D1W01/UCSWITCH TOGGLE DPDT 6A 125V |
3,123 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

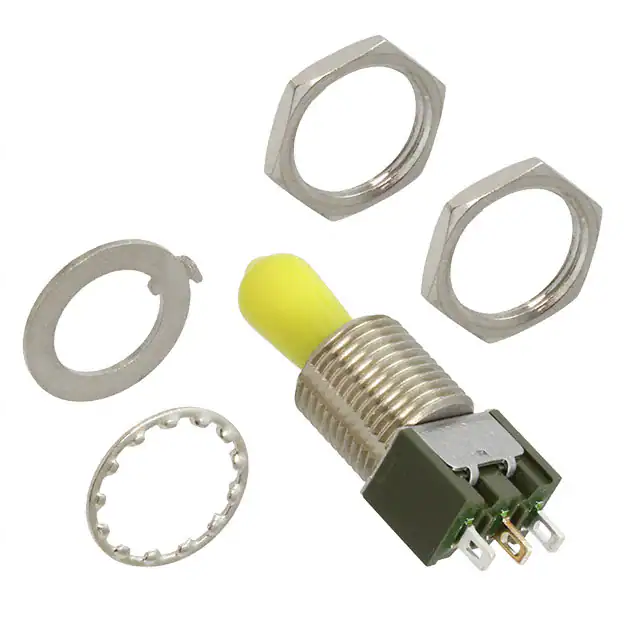

M2019BB1W01-RESWITCH TOGGLE SPDT 6A 125V |
2,513 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Yellow Cap | -30°C ~ 85°C |
|
M2013S2A2W30SWITCH TOGGLE SPDT 6A 125V |
1,484 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ATE1D-2J3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
2,783 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | SPDT | 50mA (AC/DC) | 48 V | 48 V | On-On | Lever for Cap | - | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
M2011E3S1W01SWITCH TOGGLE SPST 6A 125V |
1,048 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

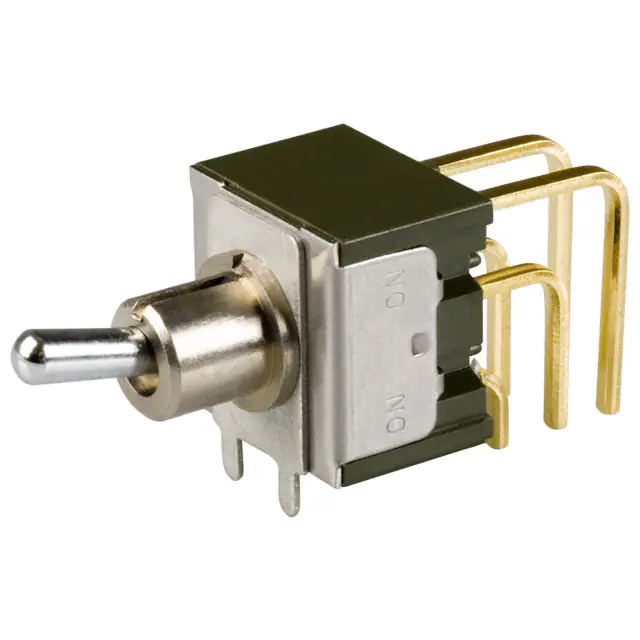

M2022S2A2G40SWITCH TOGGLE DPDT 0.4VA 28V |
2,807 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
55236ZAVDEULCSA+U272SWITCH TOGGLE SPDT 6A 125V |
2,658 |
|
Datasheet |
55000 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | - |
|
|
2-1825137-3SWITCH TOGGLE SPDT 5A 120V |
3,791 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2011SS1W03SWITCH TOGGLE SPST 6A 125V |
1,221 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T15SA5W03SWITCH TOGGLE SPDT 6A 125V |
3,915 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2022SS2W03SWITCH TOGGLE DPDT 6A 125V |
2,811 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012KS1W01SWITCH TOGGLE SPDT 6A 125V |
1,681 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Lever for Cap | - | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2019S2A1W01SWITCH TOGGLE SPDT 6A 125V |
2,975 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
