Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A433S1CWZG-M8SWITCH TOGGLE DP3T 6A 125V |
2,082 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A423S1CWAV2QSWITCH TOGGLE 4PDT 6A 28V |
1,026 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | - | - |
|
|
5664THADB3VTOGGLE SWITCH 5000 MINIATURE |
1,881 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3536031N000TOGGLE SWITCH 3500 IP67 SEALED |
1,331 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
101TL2-7SWITCH TOGGLE SPDT 7.5A 115V |
4,010 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 7.5A (AC/DC) | 115 V | 30 V | Mom-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
101TL1-7SWITCH TOGGLE SPDT 10A 125V |
3,058 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
S831/CULHIGH CAPACITY STANDARD SIZE TOGG |
2,260 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
A431K12KZGSWITCH TOGGLE 4PDT 6A 125V |
1,126 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-Off-Mom | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A431K12KZG-M8SWITCH TOGGLE 4PDT 6A 125V |
1,852 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-Off-Mom | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
631HGK2VSWITCH TOGGLE SPST 15A 250V |
4,883 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
1TL1-21ESWITCH TOGGLE SPST 15A 125V |
1,858 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

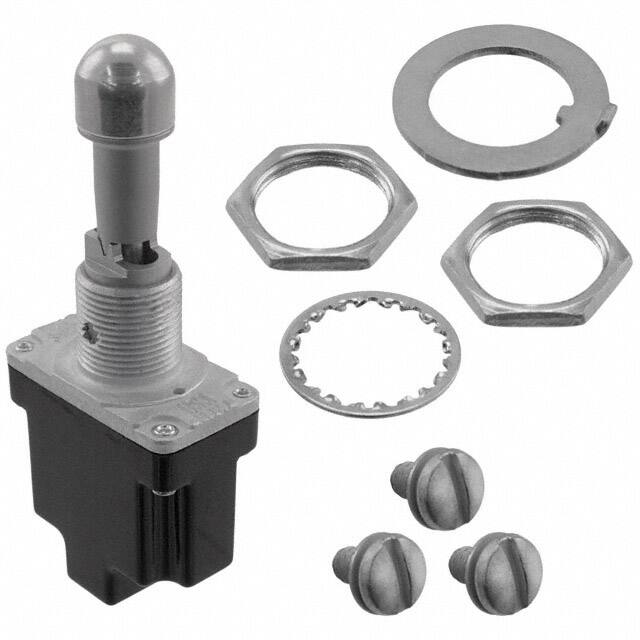

1TL1-21KSWITCH TOGGLE SPST 15A 125V |
1,640 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
5266WWCDB16X514TOGGLE SWITCH 5000 MINIATURE |
1,629 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.10mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
11146AD2GX408TOGGLE SWITCH 11000 HIGH SPEC |
2,224 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
A421S1CWZG-M8SWITCH TOGGLE 4PDT 6A 125V |
1,233 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A423K12KCGSWITCH TOGGLE 4PDT 6A 125V |
2,493 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A426S1CWZG-M8SWITCH TOGGLE 4PDT 0.5VA 28V |
3,766 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 0.5VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5636CDGB2VX408TOGGLE SWITCH 5000 MINIATURE |
2,354 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5237MAGKBX449SWITCH TOGGLE SPDT 4A 30V |
3,473 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 30 V | Mom-Off-Mom | Standard Round | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | - | -40°C ~ 85°C |
|
|
IGE25A-73SWITCH TOGGLE 15A 125V |
1,301 |
|
Datasheet |
I | Bulk | Active | Panel Mount | - | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
