Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3533001N010SWITCH TOGGLE SPST 15A 28V |
3,417 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (AC/DC) | - | 28 V | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
3531001N012TOGGLE SWITCH 3500 IP67 SEALED |
4,026 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
5646AGK03819TOGGLE SWITCH 5000 MINIATURE |
4,879 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
A435S1CWZG-M8SWITCH TOGGLE DP3T 6A 125V |
3,317 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
5656AB2VX408TOGGLE SWITCH 5000 MINIATURE |
4,950 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
3533003N012SWITCH TOGGLE SPST 15A 28V |
1,799 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (AC/DC) | - | 28 V | Off-Mom | Flatted | 24.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
1TL1-2FSWITCH TOGGLE SPST 15A 125V |
1,143 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
4NT1-8SWITCH TOGGLE 4PDT 10A 125V |
3,321 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
1TL119-8-A04SWITCH TOGGLE SPDT 10A 125V |
4,174 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Flatted | 29.13mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Red Actuator | -65°C ~ 71°C |
|

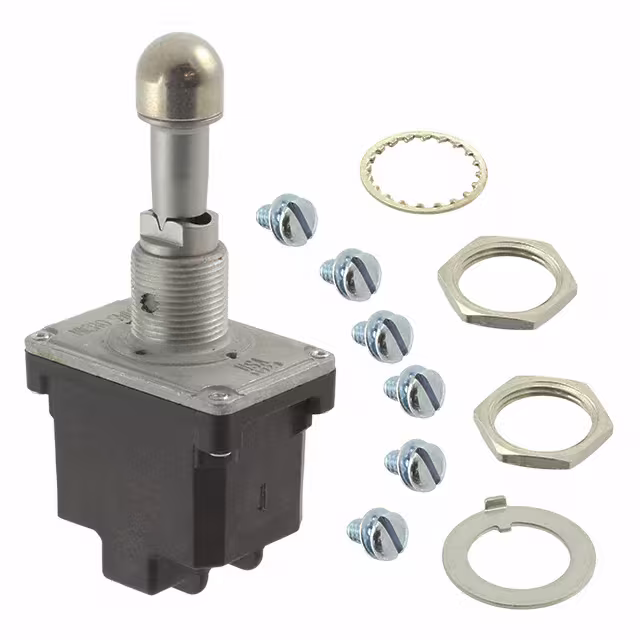

2NT1-7ESWITCH TOGGLE DPDT 10A 125V |
1,907 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
IM25G-78SWITCH TOGGLE 4PDT 15A 125V |
4,017 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5239MADKB39X449SLTOGGLE SWITCH 5000 MINIATURE |
1,361 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
A427K12KZG-M8SWITCH TOGGLE 4PDT 6A 125V |
1,757 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
1TL1-51ESWITCH TOGGLE SPDT 10A 125V |
3,701 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL11-21SWITCH TOGGLE DPST 15A 125V |
4,234 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL1-31FSWITCH TOGGLE DPDT 15A 125V |
1,068 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12146AX408SWITCH TOGGLE DPDT 4A 125V |
3,639 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Front Panel Sealing | -40°C ~ 85°C |
|
|
636H/2TKLUXE2VTOGGLE SWITCH 600H HIGH POWER |
1,991 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A432K12KZG-M8SWITCH TOGGLE DP3T 6A 125V |
2,039 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
32NT91-52ETOGGLE SWITCH |
3,223 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
