Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3531001G000SWITCH TOGGLE SPST 20A 28V |
1,607 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 20A (AC), 15A (DC) | - | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
12149AX545TOGGLE SWITCH 12000 HIGH SPEC |
4,005 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | On-Off-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
2-1520230-1SWITCH TOGGLE DPST 20A 250V |
2,205 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | 20.62mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | - |
|
|
12146AD2TOGGLE SWITCH 12000 HIGH SPEC |
2,012 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12147AD2SWITCH TOGGLE DPDT 4A 125V |
2,443 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
3531001ND00SWITCH TOGGLE SPST 20A 28V |
1,183 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 20A (AC), 15A (DC) | - | 28 V | On-Off | Locking Lever | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
101TL144-6FSWITCH TOGGLE SPST-NO 10A 125V |
1,583 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPST-NO | 10A (AC) | 125 V | - | Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
4TL1-50ESWITCH TOGGLE 4PDT 10A 125V |
3,368 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
641HGK2VTOGGLE SWITCH 600H HIGH POWER |
3,091 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

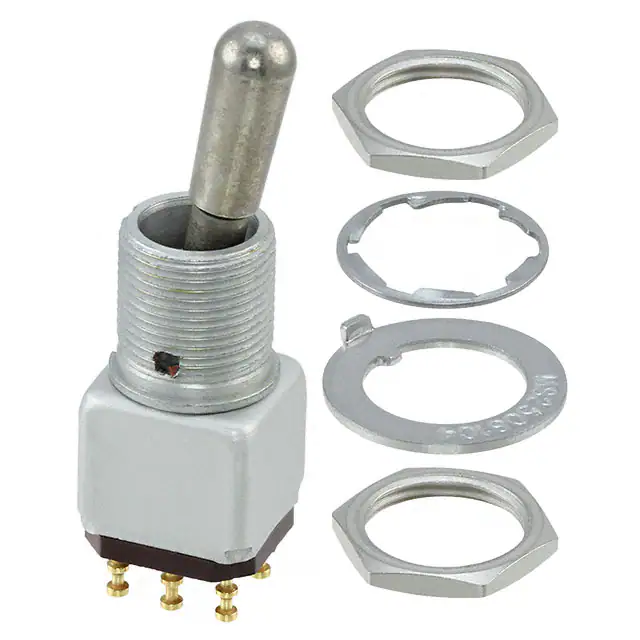

12TW75-3SWITCH TOGGLE DPDT 5A 125V |
4,351 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12TW2-21SWITCH TOGGLE DPST 5A 125V |
3,481 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPST | 5A (AC) | 125 V | - | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
11TW19-8-A002SWITCH TOGGLE SPDT 5A 125V |
3,354 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC) | 125 V | - | On-Mom | Flatted | 25.40mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Black Actuator | -65°C ~ 71°C |
|
|
A423K15KV81GSWITCH TOGGLE 4PDT 6A 125V |
1,326 |
|
Datasheet |
A | Bulk | Active | Through Hole | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
3536003N000TOGGLE SWITCH 3500 IP67 SEALED |
3,571 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 28 V | On-On | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
3546003N000TOGGLE SWITCH 3500 IP67 SEALED |
4,878 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-On | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
2TL11-56SWITCH TOGGLE DPDT 11A 125V |
4,677 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 11A (AC), 18A (DC) | 125 V | 28 V | On-On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
3545001B010SWITCH TOGGLE DPDT 15A 28V |
3,752 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | - | 28 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
11137GKX780TOGGLE SWITCH 11000 HIGH SPEC |
3,727 |
|
Datasheet |
11000 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3547022G000SWITCH TOGGLE DPDT 15A 28V |
2,380 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | - | 28 V | Mom-Off-Mom | Standard Round | 30.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
AML35FBB7AC01SWITCH TOGGLE DPST 15A 125V |
3,720 |
|
Datasheet |
AML35 | Bulk | Active | Panel Mount, Snap-In | DPST | 15A (AC) | 125 V | - | On-Off | Paddle | - | Illuminated | Neon, Red | 125 VAC | - | Solder, Quick Connect - 0.187" (4.7mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
