Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3537023N000TOGGLE SWITCH 3500 IP67 SEALED |
1,508 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 28 V | Mom-Off-Mom | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
3531023N002TOGGLE SWITCH 3500 IP67 SEALED |
3,132 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
631SH/22VX2448-05TOGGLE SWITCH 600H HIGH POWER |
2,134 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3537003N002TOGGLE SWITCH 3500 IP67 SEALED |
4,275 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | 15A (DC) | - | 28 V | Mom-Off-Mom | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
S833DSWITCH TOGGLE 3PDT 30A 30V |
1,973 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 30A (DC) | - | 30 V | On-Off-On | Flatted | 27.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
12146AD2X408TOGGLE SWITCH 12000 HIGH SPEC |
4,041 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12146AD212X408TOGGLE SWITCH 12000 HIGH SPEC |
1,286 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12146AD2KTOGGLE SWITCH 12000 HIGH SPEC |
1,310 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12148AD2TOGGLE SWITCH 12000 HIGH SPEC |
1,689 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | On-Off-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
1520231-3SWITCH TOGGLE DPST 20A 250V |
3,517 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | 0°C ~ 55°C |
|
|
AML35FBB4AA01SWITCH TOGGLE SPST 15A 125V |
3,517 |
|
Datasheet |
AML35 | Bulk | Active | Panel Mount, Snap-In | SPST | 15A (AC) | 125 V | - | On-Off | Paddle | - | Illuminated | Neon, Red | 125 VAC | - | Solder, Quick Connect - 0.187" (4.7mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
3547031N000TOGGLE SWITCH 3500 IP67 SEALED |
2,036 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
3548021N000TOGGLE SWITCH 3500 IP67 SEALED |
2,630 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
3545021N000TOGGLE SWITCH 3500 IP67 SEALED |
2,040 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
4TL1-5SWITCH TOGGLE 4PDT 10A 125V |
1,312 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

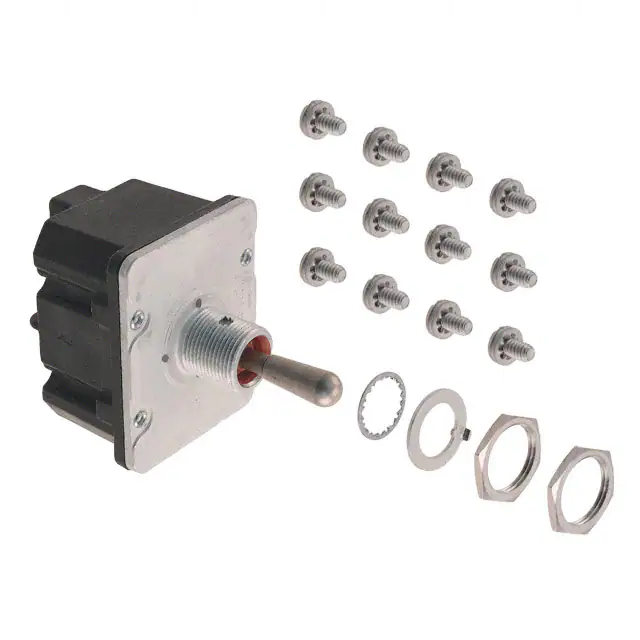

4NT1-12SWITCH TOGGLE 4PDT 15A 125V |
3,441 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
3544121N000TOGGLE SWITCH 3500 IP67 SEALED |
4,268 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DP3T | 15A (DC) | - | 28 V | On-On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
8-6437630-3SWITCH TOGGLE 4PDT 20A 125V |
2,020 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
|
1520231-4SWITCH TOGGLE DPST 20A 250V |
4,295 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | 20A (AC) | 250 V | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | 0°C ~ 55°C |
|
|
2TW74-8SWITCH TOGGLE DPDT 5A 125V |
2,414 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 16.00mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 1/4-40 | Circular - 6.60mm Dia | - | -65°C ~ 71°C |
