Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML25GBF2AA05GRSWITCH TOGGLE SPDT 3A 125V |
1,496 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | SPDT | 3A (AC), 2A (DC) | 125 V | 24 V | Mom-Off-Mom | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML25GBF2AA07GRSWITCH TOGGLE SPDT 3A 125V |
1,222 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | SPDT | 3A (AC), 2A (DC) | 125 V | 24 V | On-Off-Mom | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
3546033G000SWITCH TOGGLE DPDT 20A 28V |
4,623 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 15A (DC) | - | 28 V | On-On | Flatted | 24.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
3541031G012TOGGLE SWITCH 3500 IP67 SEALED |
2,450 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPST | 15A (DC) | - | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
2TL49-31ESWITCH TOGGLE DPDT 15A 125V |
1,381 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | White Actuator | -65°C ~ 71°C |
|
|
11TW19-7-A002SWITCH TOGGLE SPDT 5A 125V |
2,555 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | 5A (AC) | 125 V | - | Mom-Off-Mom | Flatted | 25.40mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Black Actuator | -65°C ~ 71°C |
|
|
12156AD21VTOGGLE SWITCH 12000 HIGH SPEC |
3,631 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 3PDT | 4A (DC) | - | 30 V | On-On | Locking Lever | 19.38mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
4TL57-1SWITCH TOGGLE 4PDT 15A 125V |
1,493 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
102TL144-70ESWITCH TOGGLE DPDT 11A 115V |
3,573 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 11A (AC), 18A (DC) | 115 V | 30 V | Mom-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
31NT891-3TOGGLE SWITCH |
4,385 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2TL256-3GSWITCH TOGGLE DPDT 15A 125V |
2,206 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 28 V | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
11156AGX408TOGGLE SWITCH 11000 HIGH SPEC |
4,877 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | 3PDT | 4A (DC) | - | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|

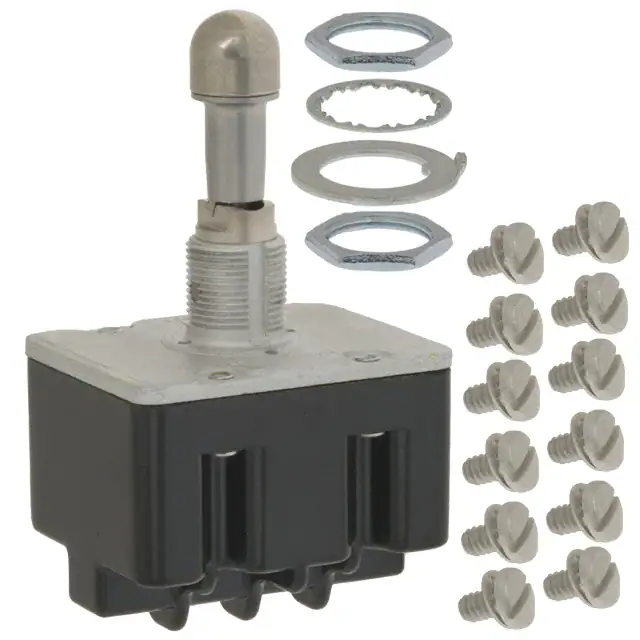

4TL1-10ESWITCH TOGGLE 4PDT 15A 125V |
4,766 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
2TL51-7SWITCH TOGGLE DPDT 10A 125V |
4,201 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Flatted | 22.22mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL28-7SWITCH TOGGLE DPDT 10A 125V |
1,706 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Flatted | 25.40mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL1-10LSWITCH TOGGLE 4PDT 15A 125V |
2,926 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL863-7SWITCH TOGGLE DPDT |
4,515 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | - | - | - | Mom-Off-Mom | Standard Round | - | Non-Illuminated | - | - | - | - | - | - | - | - |
|
|
12156AD2GKTOGGLE SWITCH 12000 HIGH SPEC |
4,799 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 3PDT | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12244AD2K3VTOGGLE SWITCH 12000 HIGH SPEC |
1,449 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On-On | Locking Lever | 19.38mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
3531003B012TOGGLE SWITCH 3500 IP67 SEALED |
3,847 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
