| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Region Utilized | Form | Voltage - Input | Voltage - Output | Current - Output (Max) | Input Type | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Input Connector | Operating Temperature | Cord Length | Output Connector | Features | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

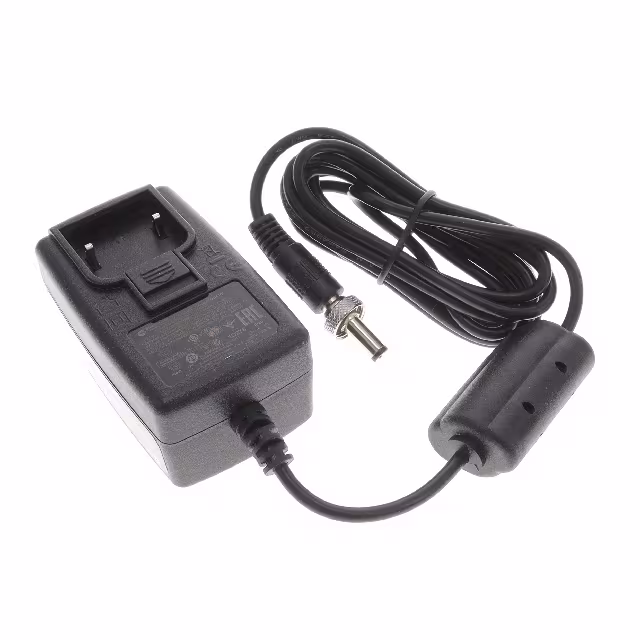

WR9QE1500C2LWPN(R6B)AC/DC WALL MOUNT ADAPTER 12V 18W |
1,829 |
|
Datasheet |
GT-46180-1812 | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.5A | Multi-Blade (Sold Separately) | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | Multi-Blade (Sold Separately) | 0°C ~ 40°C | 72" (1.83m) | Barrel Plug, 2mm I.D. x 5.5mm O.D. x 10.5mm | - | - | BSMI, CB, CCC, CE, cULus, EAC, FCC, LPS, PSE, RCM, UKRSepro, VCCI | |
|
PSAC12R-090-R-CR1AC/DC WALL MOUNT ADAPTER 9V 12W |
2,105 |
|
Datasheet |
PSAC12R (12W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.33A | Multi-Blade (Sold Separately) | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 1 | Multi-Blade | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.3mm) | AS/NZS, cULus, IEC | |
|
TE10A1203F01AC/DC DESKTOP ADAPTER 12V 12W |
3,145 |
|
Datasheet |
TE10 (10W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 1A | Cord (Sold Separately) | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C14 | -20°C ~ 50°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
15DYS830-150200W-1-2.5AC/DC WALL MOUNT ADAPTER 15V 30W |
1,079 |
|
Datasheet |
15DYS830 (30W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 2A | Fixed Blade | 30 W | - | - | ITE (Commercial) | Level VI | NEMA 1-15P | 0°C ~ 40°C | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | - | 3.02" L x 1.89" W x 1.22" H (76.8mm x 48.0mm x 31.0mm) | cULus | |
|
WR9QI750T00NAIMR6BAC/DC WALL MOUNT ADAPTER 24V 18W |
3,114 |
|
Datasheet |
GTM96180-18VV H/M | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 750mA | Multi-Blade (Sold Separately) | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | Multi-Blade (Sold Separately) | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
PEAMD36-14-B1AC/DC DESKTOP ADAPTER 24V 36W |
3,730 |
|
Datasheet |
PEAMD36 (36W) | Bag | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.5A | Cord (Sold Separately) | 36 W | 210mW | Positive Center | Medical | Level VI | IEC 320-C14 | 0°C ~ 60°C | 47" (1.20m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | - | 3.94" L x 1.77" W x 1.22" H (100.1mm x 45.0mm x 31.0mm) | CB, CE, cURus, FCC, TUV | |
|
WSX120-2000-RAC/DC WALL MOUNT ADAPTER 12V 24W |
1,992 |
|
Datasheet |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 2A | Multi-Blade (Included) | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | Multi-Blade | 0°C ~ 45°C | 72" (1.83m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
TR9CU1800T00-IMR6BAC/DC DESKTOP ADAPTER 10V 18W |
4,429 |
|
Datasheet |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 10V | 1.8A | Cord (Sold Separately) | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 1 | IEC 320-C14 | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
WSU150-1600-13AC/DC WALL MOUNT ADAPTER 15V 24W |
1,036 |
|
Datasheet |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | Fixed Blade | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | NEMA 1-15P | 0°C ~ 40°C | 72" (1.83m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | cETLus | |
|
15DYS830-150200W-2-2.5AC/DC WALL MOUNT ADAPTER 15V 30W |
2,603 |
|
Datasheet |
15DYS830 (30W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 2A | Fixed Blade | 30 W | - | - | ITE (Commercial) | Level VI | CEE 7/16 | 0°C ~ 40°C | - | - | - | 3.02" L x 1.89" W x 1.22" H (76.8mm x 48.0mm x 31.0mm) | CE, TUV | |
|
GST18B05-P1JAC/DC DESKTOP ADAPTER 5V 15W |
1,495 |
|
Datasheet |
GST18B (18W) | Box | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 5V | 3A | Cord (Sold Separately) | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C8 | -30°C ~ 70°C | 47.2" (1.20m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
GST18A48-P1JAC/DC DESKTOP ADAPTER 48V 18W |
4,146 |
|
Datasheet |
GST18A (18W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 375mA | Cord (Sold Separately) | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C14 | -30°C ~ 70°C | 70.9" (1.80m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
GST18E07-P1JAC/DC WALL MNT ADAPTER 7.5V 15W |
2,263 |
|
Datasheet |
GST18E (18W) | Box | Active | Europe | Wall Mount (Class II) | 85 ~ 264 VAC | 7.5V | 2A | Fixed Blade | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | CEE 7/16 | -30°C ~ 70°C | 47.2" (1.20m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM | |
|
15DYS830-240125W-3-2.5AC/DC WALL MOUNT ADAPTER 24V 30W |
2,993 |
|
Datasheet |
15DYS830 (30W) | Box | Active | United Kingdom | Wall Mount (Class I) | 90 ~ 264 VAC | 24V | 1.25A | Fixed Blade | 30 W | - | - | ITE (Commercial) | Level VI | BS 1363 | 0°C ~ 40°C | - | - | - | 3.02" L x 1.96" W x 1.22" H (76.8mm x 50.0mm x 31.0mm) | CE | |
|
PUP15N3-10AC/DC DESKTOP ADAPTER 5V 15W |
3,275 |
|
Datasheet |
PUP15N3 (15W) | Bag | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V | 3A | Cord (Sold Separately) | 15 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C14 | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | - | 3.70" L x 1.51" W x 1.17" H (94.0mm x 38.4mm x 29.7mm) | CE, cULus, GS, TUV | |
|
GST25U09-P1JAC/DC WALL MOUNT ADAPTER 9V 23W |
4,302 |
|
Datasheet |
GST25U (25W) | Box | Active | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 9V | 2.55A | Fixed Blade | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | NEMA 1-15P | -30°C ~ 70°C | 39.4" (1.00m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC | |
|
|
GST25U48-P1JAC/DC WALL MOUNT ADAPTER 48V 25W |
4,281 |
|
Datasheet |
GST25U (25W) | Box | Active | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 48V | 520mA | Fixed Blade | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | NEMA 1-15P | -30°C ~ 70°C | 70.9" (1.80m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC | |
|
GST25A18-P1JAC/DC DESKTOP ADAPTER 18V 25W |
2,293 |
|
Datasheet |
GST25A (25W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 18V | 1.38A | Cord (Sold Separately) | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C14 | -30°C ~ 70°C | 70.9" (1.80m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|

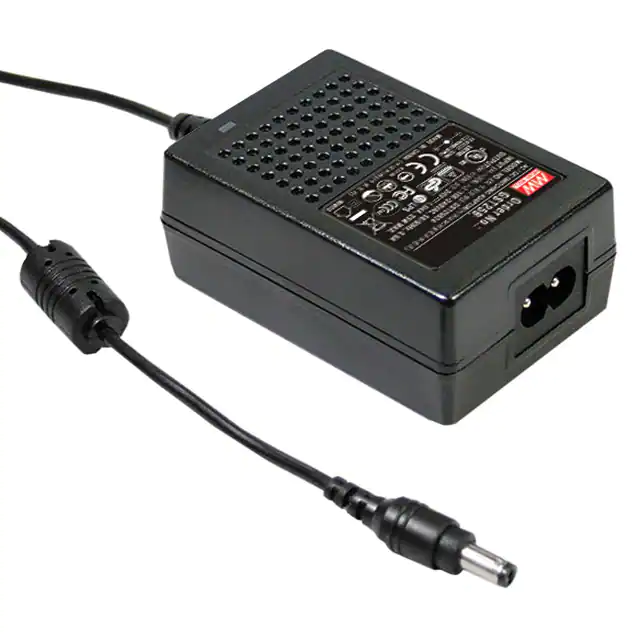

GST25B28-P1JAC/DC DESKTOP ADAPTER 28V 25W |
4,426 |
|
Datasheet |
GST25B (25W) | Box | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 28V | 890mA | Cord (Sold Separately) | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C8 | -30°C ~ 70°C | 70.9" (1.80m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|

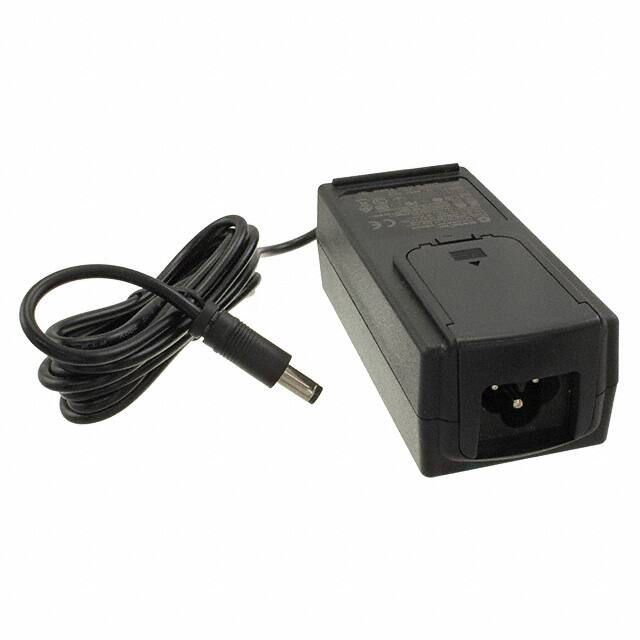

RR9LI1500LCPIMNAR6BAC/DC DSKTP/WALL MT ADPT 24V 36W |
4,926 |
|
Datasheet |
GTM96300-36VV-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | 90 ~ 264 VAC | 24V | 1.5A | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 36 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C6, Multi-Blade (Single Blade Included) | -20°C ~ 40°C | 60.2" (1.53m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI |
