AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Region Utilized | Form | Voltage - Input | Voltage - Output | Current - Output (Max) | Input Type | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Input Connector | Operating Temperature | Cord Length | Output Connector | Features | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST160A48-R7BAC/DC DESKTOP ADAPTER 48V 160W |
145 |
|
Datasheet |
GST160A (160W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 3.34A | Cord (Sold Separately) | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | -30°C ~ 70°C | 47.2" (1.20m) | Power DIN, 4 Pin | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST160A15-R7BAC/DC DESKTOP ADAPTER 15V 144W |
4,963 |
|
Datasheet |
GST160A (160W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 9.6A | Cord (Sold Separately) | 144 W | 150mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | -30°C ~ 70°C | 47.2" (1.20m) | Power DIN, 4 Pin | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|

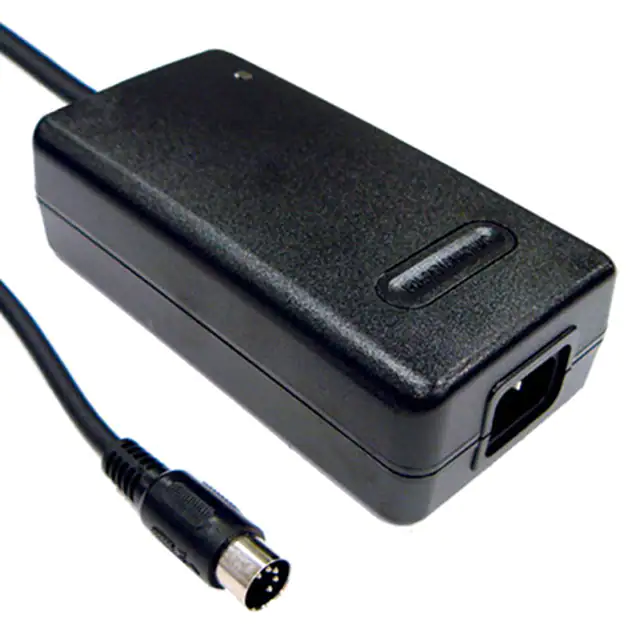

GP50A13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 47W |
2,185 |
|
Datasheet |
GP50A (50W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -5V | 4A, 2A, 500mA | Cord (Sold Separately) | 47 W | 300mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | -20°C ~ 70°C | 39.4" (1.00m) | DIN, 5 Pin | - | 5.75" L x 2.97" W x 1.69" H (146.0mm x 75.5mm x 43.0mm) | CBE, CE, cULus, GS | |
|
|
GP50A14E-R1BAC/DC DESKTOP ADPT 5V +/-15V 50W |
4,951 |
|
Datasheet |
GP50A (50W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V, 15V, -15V | 4A, 1.5A, 500mA | Cord (Sold Separately) | 50 W | 300mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | -20°C ~ 70°C | 39.4" (1.00m) | DIN, 5 Pin | - | 5.75" L x 2.97" W x 1.69" H (146.0mm x 75.5mm x 43.0mm) | CBE, CE, cULus, GS | |
|
FSP120-ABBU3AC/DC DESKTOP ADAPTER 19V 120W |
132 |
|
Datasheet |
FSP120-AxxN3 (120W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 19V | 6.32A | Cord (Sold Separately) | 120 W | 500mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C6 | 0°C ~ 70°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. | - | 3.86" L x 2.54" W x 0.89" H (98.0mm x 64.5mm x 22.5mm) | CCC, CE, cULus, FCC, GS, TUV | |
|
MWA065015A-11AAC/DC DESKTOP ADAPTER 15V 72W |
1,930 |
|
Datasheet |
MWA065 (65W) | Bulk | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 4.8A | Cord (Sold Separately) | 72 W | 500mW (Max) | - | Medical | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 5 Pin | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus | |
|
SDI90-12-U-P6AC/DC DESKTOP ADAPTER 12V 84W |
1,570 |
|
Datasheet |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 7A | Cord (Sold Separately) | 84 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C14 | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
PEAMD120-13-B2AC/DC DESKTOP ADAPTER 15V 120W |
138 |
|
Datasheet |
PEAMD120 (120W) | Bag | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 15V | 8A | Cord (Sold Separately) | 120 W | 210mW | Positive Center | Medical | Level VI | IEC 320-C14 | 0°C ~ 60°C | 47" (1.20m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 5.40" L x 2.30" W x 1.30" H (137.2mm x 58.4mm x 33.0mm) | CB, CE, cURus, FCC, TUV | |
|
FSP150-AAAN3AC/DC DESKTOP ADAPTER 24V 150W |
296 |
|
Datasheet |
FSP150-AAAN3 (150W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 6.25A | Cord (Sold Separately) | 150 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C14 | 0°C ~ 70°C | 70.9" (1.80m) | Power DIN, 4 Pin | - | 5.96" L x 2.98" W x 1.00" H (151.3mm x 75.6mm x 25.4mm) | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI | |
|
FSP150-ABAN3AC/DC DESKTOP ADAPTER 19V 150W |
180 |
|
Datasheet |
FSP150-ABAN3 (150W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 19V | 7.89A | Cord (Sold Separately) | 150 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C14 | 0°C ~ 70°C | 70.9" (1.80m) | Power DIN, 4 Pin | - | 5.96" L x 2.98" W x 1.00" H (151.3mm x 75.6mm x 25.4mm) | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI | |
|
FSP150-AHAN3AC/DC DESKTOP ADAPTER 12V 150W |
145 |
|
Datasheet |
FSP150-AHAN3 (150W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 12.5A | Cord (Sold Separately) | 150 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C14 | 0°C ~ 70°C | 70.9" (1.80m) | Power DIN, 4 Pin | - | 5.96" L x 2.98" W x 1.00" H (151.3mm x 75.6mm x 25.4mm) | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI | |
|
SLE90S2403F01AC/DC DESKTOP ADAPTER 24V 90W |
1,362 |
|
Datasheet |
SLE90 (90W) | Bulk | Active | International | Desktop (Class I), Desktop (Class II) | 90 ~ 264 VAC | 24V | 3.75A | Cord (Sold Separately) | 90 W | - | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | IEC 320-C6, IEC 320-C14, IEC 320-C18 | 0°C ~ 40°C | 39.4" (1.00m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 5.75" L x 2.34" W x 1.42" H (146.0mm x 59.5mm x 36.0mm) | CB, CCC, CE, CSA, cULus, cURus, GS, KC, TUV, UL | |
|
TRH100A120-11E12 VIAC/DC DESKTOP ADAPTER 12V 100W |
527 |
|
Datasheet |
TRH100A (100W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 8.34A | Cord (Sold Separately) | 100 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | IEC 320-C14 | -30°C ~ 70°C | 48" (1.22m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | - | 5.59" L x 2.28" W x 1.46" H (142.0mm x 58.0mm x 37.0mm) | CE, cULus, FCC, NEMKO, PSE, TUV | |
.jpg)
|

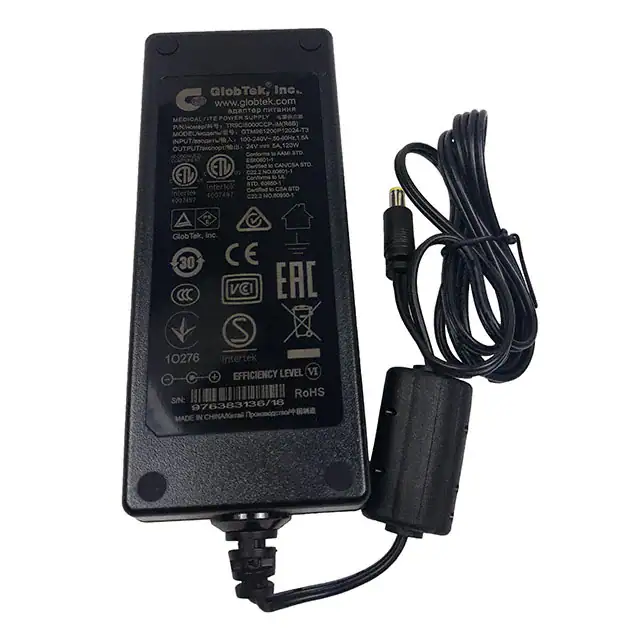

TR9CI5000CCP-IM(R6B)AC/DC DESKTOP ADAPTER 24V 120W |
1,730 |
|
Datasheet |
GTM961200P120VV.V-T3 | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 5A | Cord (Sold Separately) | 120 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C14 | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI | |
.jpg)
|
TR9CI5000LCP-IM(R6B)AC/DC DESKTOP ADAPTER 24V 120W |
3,108 |
|
Datasheet |
GTM961200P120VV.V-T3 | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 5A | Cord (Sold Separately) | 120 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C14 | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI | |
|
GSM120A48-R7BAC/DC DESKTOP ADAPTER 48V 120W |
143 |
|
Datasheet |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 48V | 2.5A | Cord (Sold Separately) | 120 W | 150mW (Max) | - | Medical | Level VI | IEC 320-C14 | -30°C ~ 70°C | 47.2" (1.20m) | Power DIN, 4 Pin | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV | |
|
|
GSM120A24-R7BAC/DC DESKTOP ADAPTER 24V 120W |
213 |
|
Datasheet |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 24V | 5A | Cord (Sold Separately) | 120 W | 150mW (Max) | - | Medical | Level VI | IEC 320-C14 | -30°C ~ 70°C | 47.2" (1.20m) | Power DIN, 4 Pin | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV | |
|
|
GSM120A12-R7BAC/DC DESKTOP ADAPTER 12V 102W |
570 |
|
Datasheet |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 12V | 8.5A | Cord (Sold Separately) | 102 W | 150mW (Max) | - | Medical | Level VI | IEC 320-C14 | -30°C ~ 70°C | 39.4" (1.00m) | Power DIN, 4 Pin | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV | |
|
OWA-120E-24AC/DC DESKTOP ADAPTER 24V 120W |
4,968 |
|
Datasheet |
OWA-120E (120W) | Box | Active | Europe | Desktop (Class II) | 180 ~ 264 VAC | 24V | 5A | Cord | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | CEE 7/7 | -40°C ~ 70°C | 11.8" (300.00mm) | Power DIN, 4 Pin | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CE, GS | |
|

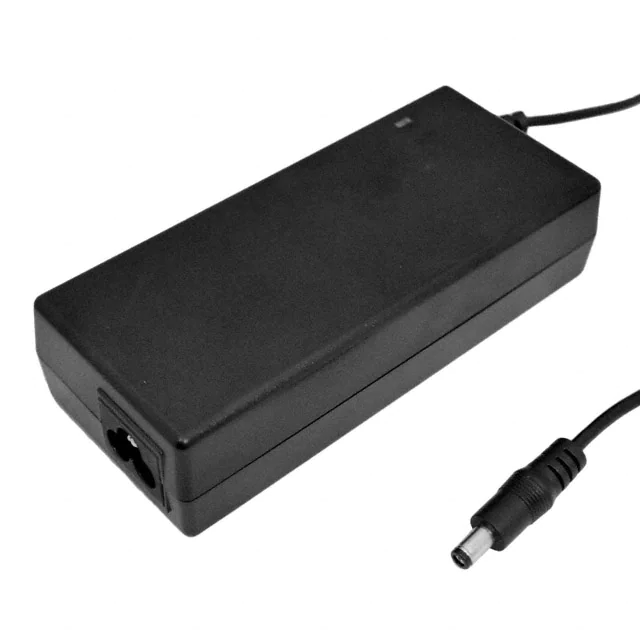

KTPS90-2437AC/DC DESKTOP ADAPTER 24V 90W |
301 |
|
Datasheet |
KTPS90 (90W) | Bulk | Active | International | Desktop (Class I) | 100 ~ 240 VAC | 24V | 3.75A | Cord (Sold Separately) | 90 W | - | Positive Center | ITE (Commercial) | Level VI | IEC 320-C6 | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | IEC |
