| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Region Utilized | Form | Voltage - Input | Voltage - Output | Current - Output (Max) | Input Type | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Input Connector | Operating Temperature | Cord Length | Output Connector | Features | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGA25E05-P1JAC/DC WALL MOUNT ADAPTER 5V 20W |
3,727 |
|
Datasheet |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 4A | Fixed Blade | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | CEE 7/16 | -20°C ~ 60°C | 39.4" (1.00m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS | |
|
|
SGA25E18-P1JAC/DC WALL MOUNT ADAPTER 18V 25W |
2,926 |
|
Datasheet |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.38A | Fixed Blade | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | CEE 7/16 | -20°C ~ 60°C | 70.9" (1.80m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS | |
|
CENB1010A1203F01AC/DC DESKTOP ADAPTER 12V 10W |
3,108 |
|
Datasheet |
CENB1010 (10W) | Bulk | Obsolete | International | Desktop (Class I) | 100 ~ 240 VAC | 12V | 1A | Cord (Sold Separately) | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | |
|
WSX090-2500-R13AC/DC WALL MOUNT ADAPTER 9V 23W |
3,553 |
|
Datasheet |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.5A | Multi-Blade (Included) | 23 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | Multi-Blade | 0°C ~ 45°C | 72" (1.83m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
IPD5019-760AC/DC DESKTOP ADAPTER 19V 49W |
3,240 |
|
Datasheet |
IPD50 (50W) | Box | Active | North America | Desktop (Class I) | 85 ~ 264 VAC | 19V | 2.6A | Cord (Sold Separately) | 49 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CE, cTUVus | |
|
MENB1010A0903B02AC/DC WALL MOUNT ADAPTER 9V 10W |
2,934 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SDI30-15-UD-P5AC/DC DESKTOP ADAPTER 15V 30W |
1,759 |
|
Datasheet |
SDI30-UD (30W) | Bulk | Obsolete | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 2A | Cord (Sold Separately) | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | IEC 320-C8 | 0°C ~ 40°C | 60.2" (1.53m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, UL | |
|

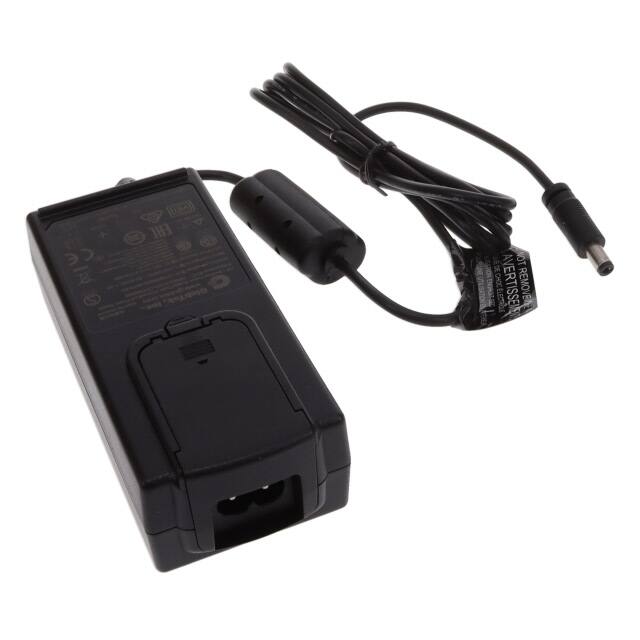

RR9KZ3157LCPCIMR6BAC/DC DSKTP/WALL MT ADPT 19V 60W |
1,179 |
|
Datasheet |
GTM96600-6019-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | 90 ~ 264 VAC | 19V | 3.15A | Cord, Multi-Blade (Sold Separately) | 60 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | IEC 320-C8, Multi-Blade (Sold Separately) | -20°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
MW172KB0503F01AC/DC DESKTOP ADAPTER 5V 15W |
2,469 |
|
Datasheet |
MW172KB (15-18W) | Bulk | Not For New Designs | International | Desktop (Class I) | 100 ~ 240 VAC | 5V | 3A | Cord (Sold Separately) | 15 W | 500mW (Max) | Positive Center | Medical | Level IV | IEC 320-C14 | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | |
|
RR9LZ3157T00CIMR6BAC/DC DSKTP/WALL MT ADPT 19V 60W |
3,165 |
|
Datasheet |
GTM96600-60VV.V-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | 90 ~ 264 VAC | 19V | 3.15A | Cord, Multi-Blade (Sold Separately) | 60 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C6, Multi-Blade (Sold Separately) | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
RR9KZ3157T00CIMR6BAC/DC DSKTP/WALL MT ADPT 19V 60W |
2,176 |
|
Datasheet |
GTM96600-60VV.V-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | 90 ~ 264 VAC | 19V | 3.157A | Cord, Multi-Blade (Sold Separately) | 60 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C8, Multi-Blade (Sold Separately) | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
RR9KH3333T00CIMR6BAC/DC DSKTP/WALL MT ADPT 18V 60W |
4,839 |
|
Datasheet |
GTM96600-60VV.V-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 3.33A | Cord, Multi-Blade (Sold Separately) | 60 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | IEC 320-C8, Multi-Blade (Sold Separately) | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
TR9WH3333T00CIMR6BAC/DC DESKTOP ADAPTER 18V 60W |
3,560 |
|
Datasheet |
GTM96600-60VV.V-T2A | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 18V | 3.33A | Cord (Sold Separately) | 60 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI | IEC 320-C18 | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 4.63" L x 2.11" W x 1.35" H (117.5mm x 53.5mm x 34.2mm) | CB, CCC, CE, cETLus, EAC, PSE, RCM, S-Mark, UkrSEPRO, VCCI | |
|
|
TR9WD6000T00CIMR6BAC/DC DESKTOP ADAPTER 9V 54W |
1,933 |
|
Datasheet |
GTM96600-60VV.V-T2A | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 9V | 6A | Cord (Sold Separately) | 54 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI | IEC 320-C18 | -20°C ~ 40°C | 47.2" (1.20m) | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | - | 4.63" L x 2.11" W x 1.35" H (117.5mm x 53.5mm x 34.2mm) | CB, CCC, CE, cETLus, EAC, PSE, RCM, S-Mark, UkrSEPRO, VCCI | |
|
ME10A0503C01AC/DC WALL MOUNT ADAPTER 5V 10W |
2,247 |
|
Datasheet |
ME10 (10W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | Multi-Blade (Single Blade Included) | 10 W | 100mW (Max) | Positive Center | Medical | Level VI | NEMA 1-15P | -20°C ~ 70°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE, cURus, DEMKO | |
|
|
MENB1030A2403B01AC/DC WALL MOUNT ADAPTER 24V 32W |
2,071 |
|
Datasheet |
MENB1030 (30W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 24V | 1.33A | Fixed Blade | 32 W | 100mW (Max) | Positive Center | Medical | Level V | NEMA 1-15P | -20°C ~ 40°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE, cURus | |
|
GE24I09-P1JAC/DC WALL MOUNT ADAPTER 9V 20W |
4,773 |
|
Datasheet |
GE24 (24W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.22A | Multi-Blade (Sold Separately) | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | Multi-Blade (Sold Separately) | -10°C ~ 50°C | 39.4" (1.00m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | |
|
|
GE24I15-P1JAC/DC WALL MOUNT ADAPTER 15V 24W |
4,091 |
|
Datasheet |
GE24 (24W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | Multi-Blade (Sold Separately) | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | Multi-Blade (Sold Separately) | -10°C ~ 50°C | 59" (1.50m) | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | |
|
ACM36US24AC/DC WALL MOUNT ADAPTER 24V 36W |
2,776 |
|
Datasheet |
ACM36 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.5A | Multi-Blade (Sold Separately) | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | Multi-Blade (Sold Separately) | 0°C ~ 60°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.93" L x 1.29" W x 2.34" H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL | |
|
|
ACM36US36AC/DC WALL MOUNT ADAPTER 36V 36W |
3,160 |
|
Datasheet |
ACM36 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 36V | 1A | Multi-Blade (Sold Separately) | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | Multi-Blade (Sold Separately) | 0°C ~ 60°C | 59" (1.50m) | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | 3.93" L x 1.29" W x 2.34" H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL |
