AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Region Utilized | Form | Voltage - Input | Voltage - Output | Current - Output (Max) | Input Type | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Input Connector | Operating Temperature | Cord Length | Output Connector | Features | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAA20R-120L6-R-CR1AC/DC WALL MOUNT ADAPTER 12V 20W |
1,897 |
|
Datasheet |
PSAA20R-L6 (20W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.67A | Multi-Blade (Sold Separately) | 20 W | 10mW (Max) | Positive Center | ITE (Commercial) | Level VI | Multi-Blade | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | - | 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm) | AS/NZS, BSMI, cULus, IEC, PSE | |
|
|
PSAA20R-240L6-R-CR1AC/DC WALL MOUNT ADAPTER 24V 20W |
3,634 |
|
Datasheet |
PSAA20R-L6 (20W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 830mA | Multi-Blade (Sold Separately) | 20 W | 10mW (Max) | Positive Center | ITE (Commercial) | Level VI | Multi-Blade | 0°C ~ 40°C | 59" (1.50m) | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | - | 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm) | AS/NZS, cULus, IEC | |
|

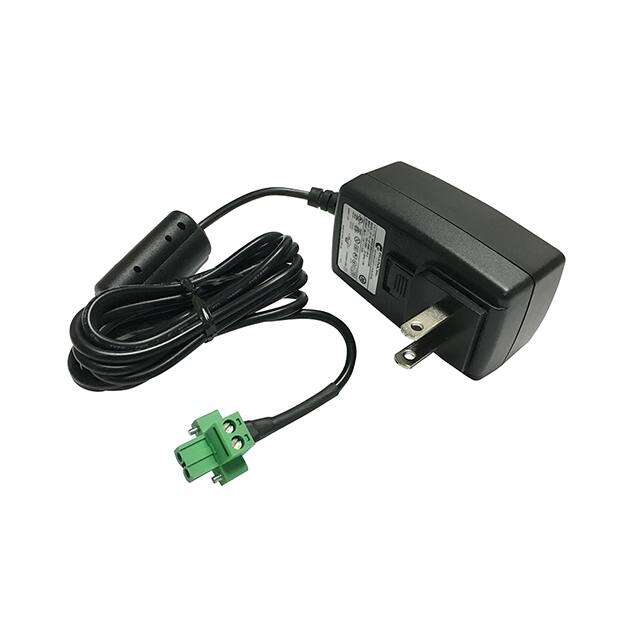

76002058AC/DC WALL MOUNT ADAPTER 12V |
3,478 |
|
Datasheet |
- | Bulk | Obsolete | - | Wall Mount (Class II) | 100 ~ 240 VAC | 12V | 3A | Multi-Blade (Single Blade Included) | - | - | - | - | - | - | - | - | - | - | - | - | |
|
BB-SMI18-12-V-STAC/DC WALL MOUNT ADAPTER 12V 19W |
1,490 |
|
Datasheet |
SMI18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.6A | Multi-Blade (Included) | 19 W | 100mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | Multi-Blade | 0°C ~ 40°C | 59" (1.50m) | Stripped, Tinned Wire Leads | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
FWA220012A-13AAC/DC DESKTOP ADAPTER 12V 220W |
4,014 |
|
Datasheet |
FWA220 (220W) | Box | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 18.3A | Cord | 220 W | 210mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | Rectangular, 6 Position | - | 8.52" L x 2.88" W x 1.56" H (216.4mm x 73.1mm x 39.5mm) | CB, CE, GS, TUV | |
|
FWA220024A-12AAC/DC DESKTOP ADAPTER 24V 221W |
2,602 |
|
Datasheet |
FWA220 (220W) | Box | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 9.2A | Cord | 221 W | 210mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | DIN, 8 Pin | - | 8.52" L x 2.88" W x 1.56" H (216.4mm x 73.1mm x 39.5mm) | CB, CE, GS, TUV | |
|
FWA065015A-11AAC/DC DESKTOP ADAPTER 15V 72W |
3,969 |
|
Datasheet |
FWA065 (65W) | Bulk | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 4.8A | Cord (Sold Separately) | 72 W | 500mW (Max) | - | ITE (Commercial) | Level VI | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | DIN, 5 Pin | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus | |
|
FWC080012A-12AAC/DC DESKTOP ADAPTER 12V 79W |
3,038 |
|
Datasheet |
FWC080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 6.6A | Cord (Sold Separately) | 79 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus | |
|
|
FWC080018A-11AAC/DC DESKTOP ADAPTER 18V 79W |
2,285 |
|
Datasheet |
FWC080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 18V | 4.4A | Cord (Sold Separately) | 79 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 5 Pin | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus | |
|
|
FWC080015A-12AAC/DC DESKTOP ADAPTER 15V 80W |
1,310 |
|
Datasheet |
FWC080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 5.3A | Cord (Sold Separately) | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus | |
|
FWA120024A-12AAC/DC DESKTOP ADAPTER 24V 120W |
2,698 |
|
Datasheet |
FWA120 (120W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 24V | 5A | Cord (Sold Separately) | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA120012A-12AAC/DC DESKTOP ADAPTER 12V 120W |
4,559 |
|
Datasheet |
FWA120 (120W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 10A | Cord (Sold Separately) | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA120018A-12AAC/DC DESKTOP ADAPTER 18V 121W |
1,702 |
|
Datasheet |
FWA120 (120W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 18V | 6.7A | Cord (Sold Separately) | 121 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA150012A-12AAC/DC DESKTOP ADAPTER 12V 150W |
1,832 |
|
Datasheet |
FWA150 (150W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 12.5A | Cord (Sold Separately) | 150 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA150024A-12AAC/DC DESKTOP ADAPTER 24V 151W |
3,055 |
|
Datasheet |
FWA150 (150W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 24V | 6.3A | Cord (Sold Separately) | 151 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA150015A-12AAC/DC DESKTOP ADAPTER 15V 150W |
4,782 |
|
Datasheet |
FWA150 (150W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 10A | Cord (Sold Separately) | 150 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 48" (1.22m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
|
FWA150018A-12AAC/DC DESKTOP ADAPTER 18V 149W |
1,743 |
|
Datasheet |
FWA150 (150W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 18V | 8.3A | Cord (Sold Separately) | 149 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus | |
|
FWA180048A-11AAC/DC DESKTOP ADAPTER 48V 180W |
1,370 |
|
Datasheet |
FWA180 (180W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 3.75A | Cord (Sold Separately) | 180 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 5 Pin | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus | |
|
|
FWA180024A-12AAC/DC DESKTOP ADAPTER 24V 180W |
4,624 |
|
Datasheet |
FWA180 (180W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 24V | 7.5A | Cord (Sold Separately) | 180 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 8 Pin | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus | |
|
|
FWA120048A-11AAC/DC DESKTOP ADAPTER 48V 120W |
2,007 |
|
Datasheet |
FWA120 (120W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 2.5A | Cord (Sold Separately) | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | IEC 320-C14 | 0°C ~ 60°C | 72" (1.83m) | DIN, 5 Pin | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
