Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

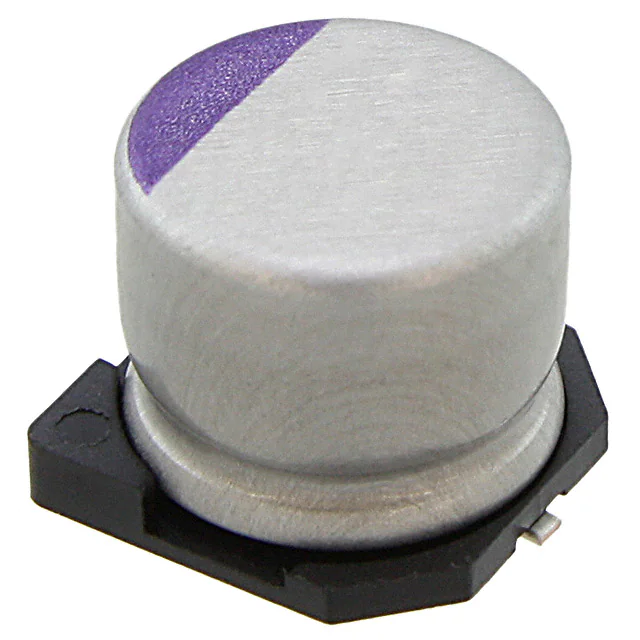

25SVPF82MCAP ALUM POLY 82UF 20% 25V SMD |
3,285 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 82 µF | 25 V | 28mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 0.315" Dia (8.00mm) | 3 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
HHXB250ARA101MF80GCAP ALUMHYB 100UF 20% 25V SMD |
1,784 |
|
Datasheet |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 100 µF | 25 V | 30mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 0.248" Dia (6.30mm) | 2 A @ 100 kHz | - | - | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
-Photo-Taped-Size-F.jpg)
|
EEH-AZA1K220BCAP ALUM HYBRID 22UF 20% 80V TH |
653 |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 22 µF | 80 V | 45mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 155 mA @ 100 Hz | 0.315" Dia (8.00mm) | 1.55 A @ 100 kHz | 0.138" (3.50mm) | - | 0.413" (10.50mm) | - | Through Hole | |
|
50SVPK10MCAP ALUM POLY 10UF 20% 50V SMD |
8,421 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 10 µF | 50 V | 80mOhm | 1000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 27.5 mA @ 120 Hz | 0.197" Dia (5.00mm) | 550 mA @ 100 kHz | - | - | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
875575759001CAP ALUM HYBRID 10UF 20% 50V SMD |
1,680 |
|
Datasheet |
WCAP-HSG5 | Tape & Reel (TR) | Active | Hybrid | 10 µF | 50 V | 120mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 100 Hz | 0.197" Dia (5.00mm) | 750 mA @ 100 kHz | - | - | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
GYA1V271MCQ1GSCAP ALUMHYB 270UF 20% 35V SMD |
776 |
|
Datasheet |
GYA | Tape & Reel (TR) | Active | Hybrid | 270 µF | 35 V | 20mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 0.394" Dia (10.00mm) | 2 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
A781MN477M1ELAS025CAP ALUMHYB 470UF 20% 25V SMD |
2,970 |
|
Datasheet |
A781 | Tape & Reel (TR) | Active | Hybrid | 470 µF | 25 V | 25mOhm | 2000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 2.8 A @ 100 Hz | 0.394" Dia (10.00mm) | 7 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEH-ZC1V220RCAP ALUM HYBRID 22UF 20% 35V SMD |
2,445 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 22 µF | 35 V | 100mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 100 Hz | 0.197" Dia (5.00mm) | 550 mA @ 100 kHz | - | - | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEH-ZK1E680PCAP ALUM HYBRID 68UF 20% 25V SMD |
2,036 |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 68 µF | 25 V | 50mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 0.248" Dia (6.30mm) | 1.3 A @ 100 kHz | - | - | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCF0G101MCL4GBCAP ALUM POLY 100UF 20% 4V SMD |
633 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 100 µF | 4 V | 22mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 0.248" Dia (6.30mm) | 2.6 A @ 100 kHz | - | - | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
100SXV6R8MCAP ALUM POLY 6.8UF 20% 100V SMD |
2,463 |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 6.8 µF | 100 V | 60mOhm | 1000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 55 mA @ 120 Hz | 0.315" Dia (8.00mm) | 1.1 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
875115350002CAP ALUM POLY 220UF 20% 16V SMD |
5,222 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 220 µF | 16 V | 20mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 0.315" Dia (8.00mm) | 3.5 A @ 100 kHz | - | - | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
A750MW187M1JAAE020CAP ALUM POLY 180UF 20% 63V TH |
2,187 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 180 µF | 63 V | 20mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 0.394" Dia (10.00mm) | 4.95 A @ 100 kHz | 0.197" (5.00mm) | - | 0.709" (18.00mm) | - | Through Hole | |
|
A759EQ475M2AAAE160CAP ALUM POLY 4.7UF 20% 100V TH |
19,414 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 4.7 µF | 100 V | 160mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 25.5 mA @ 120 Hz | 0.248" Dia (6.30mm) | 510 mA @ 100 kHz | 0.098" (2.50mm) | - | 0.472" (12.00mm) | - | Through Hole | |
|
RSL0J221MCN1GBCAP ALUM POLY 220UF 20% 6.3V SMD |
5,499 |
|
Datasheet |
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 220 µF | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 0.248" Dia (6.30mm) | 3.2 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | |
|
|
875115452003CAP ALUM POLY 100UF 20% 20V SMD |
710 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 100 µF | 20 V | 20mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 0.315" Dia (8.00mm) | 3.5 A @ 100 kHz | - | - | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLF1C471MDO1CAP ALUM POLY 470UF 20% 16V TH |
6,479 |
|
Datasheet |
PLF | Bulk | Active | Polymer | 470 µF | 16 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 0.394" Dia (10.00mm) | 6.1 A @ 100 kHz | 0.197" (5.00mm) | - | 0.512" (13.00mm) | - | Through Hole | |
|
|
25SVPK33MCAP ALUM POLY 33UF 20% 25V SMD |
5,242 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 33 µF | 25 V | 35mOhm | 1000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 41 mA @ 120 Hz | 0.197" Dia (5.00mm) | 820 mA @ 100 kHz | - | - | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
A765KN107M1ELAE024CAP ALUM POLY 100UF 20% 25V SMD |
4,323 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 100 µF | 25 V | 24mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 0.315" Dia (8.00mm) | 3.3 A @ 100 kHz | - | - | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
RSS1C101MCN1GSCAP ALUM POLY 100UF 20% 16V SMD |
2,090 |
|
Datasheet |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 100 µF | 16 V | 24mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 249 mA @ 120 Hz | 0.248" Dia (6.30mm) | 2.49 A @ 100 kHz | - | - | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
