Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSP1C271MCB6309CAP ALUM POLY 270UF 20% 16V SMD |
1,895 |
|
Datasheet |
VSP | Active | Polymer | 270 µF | 16 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.248" Dia (6.30mm) | 5.3 A @ 100 kHz | - | - | 0.374" (9.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
UGS1C222MP51020UCAP ALUM POLY 2200UF 20% 16V TH |
3,608 |
|
Datasheet |
UGS | Active | Polymer | 2200 µF | 16 V | 8mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 6.1 A @ 100 kHz | 0.197" (5.00mm) | - | 0.846" (21.50mm) | - | Through Hole | ||
|
AHA1010330M063RCAP ALUM HYBRID 33UF 20% 63V SMD |
3,353 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 33 µF | 63 V | 30mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 100 Hz | 0.394" Dia (10.00mm) | 2.1 A @ 100 kHz | - | - | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

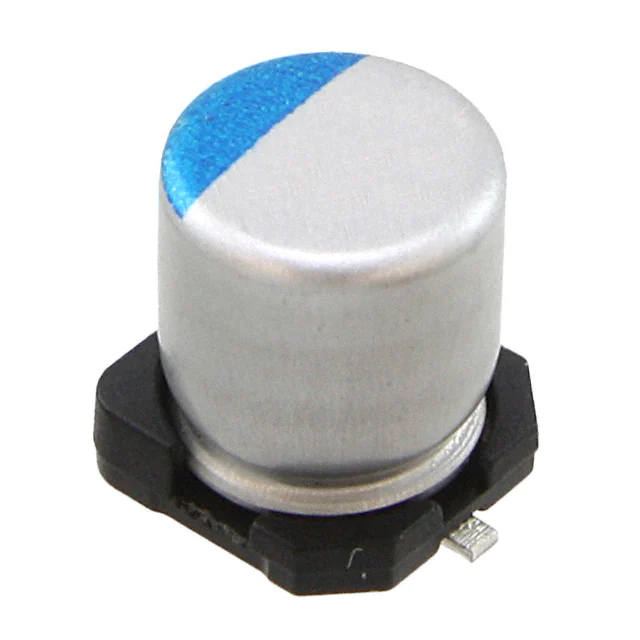

PVM-10V470ME60E-R2CAP ALUM POLY 47UF 20% 10V SMD |
4,943 |
|
Datasheet |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | 10 V | 28mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.197" Dia (5.00mm) | 2.31 A @ 100 kHz | - | - | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

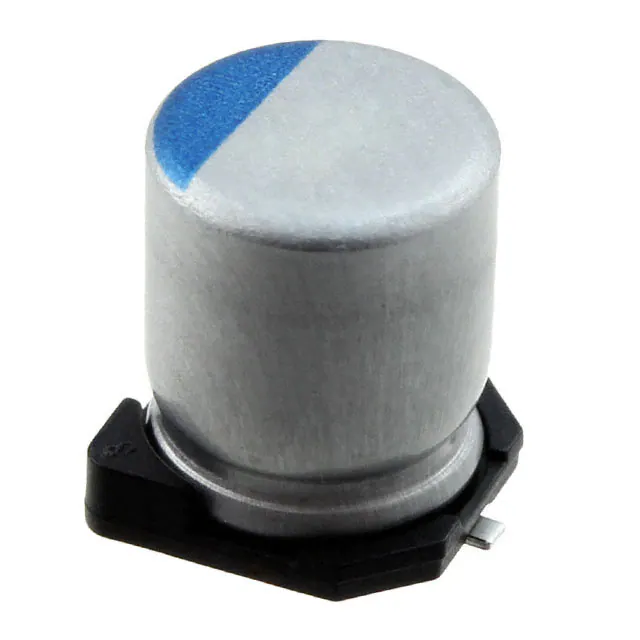

PCR1A331MCL4GSCAP ALUM POLY 330UF 20% 10V SMD |
1,656 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | 10 V | 22mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 0.248" Dia (6.30mm) | 1.7 A @ 100 kHz | - | - | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UPE1E331MP51012UCAP ALUM POLY 330UF 20% 25V TH |
4,453 |
|
Datasheet |
UPE | Active | Polymer | 330 µF | 25 V | 14mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 5 A @ 100 kHz | 0.197" (5.00mm) | - | 0.531" (13.50mm) | - | Through Hole | ||
|
MAL218497609E3CAP ALUM POLY 220UF 20% 25V SMD |
4,299 |
|
Datasheet |
184 CPNS | Box | Active | Polymer | 220 µF | 25 V | 25mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 0.315" Dia (8.00mm) | 3.8 A @ 100 kHz | - | - | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCH1E221MCL6GSCAP ALUM POLY 220UF 20% 25V SMD |
3,134 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 220 µF | 25 V | 20mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.3 A @ 100 kHz | - | - | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A700D107M006ATE0157280CAP ALUM POLY 100UF 20% 6.3V SMD |
1,773 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | 6.3 V | 15mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218597307E3CAP ALUM POLY 1500UF 20% 6.3V |
2,463 |
|
Datasheet |
185 CPNZ | Box | Active | Polymer | 1500 µF | 6.3 V | 12mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 265 mA @ 120 Hz | 0.394" Dia (10.00mm) | 5.3 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
RHS0E152MCN1GSCAP ALUM POLY 1500UF 20% 2.5V |
1,998 |
|
Datasheet |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 1500 µF | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 0.315" Dia (8.00mm) | 5.4 A @ 100 kHz | - | - | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APXE2R5ARA152MHC0GCAP ALUM POLY 1500UF 20% 2.5V |
1,600 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 1500 µF | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 5.4 A @ 100 kHz | - | - | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
MAL218597103E3CAP ALUM POLY 22UF 20% 50V SMD |
1,007 |
|
Datasheet |
185 CPNZ | Box | Active | Polymer | 22 µF | 50 V | 55mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 0.394" Dia (10.00mm) | 1.8 A @ 100 kHz | - | - | 0.354" (9.00mm) | - | Surface Mount | |
|
|
HZC566M025D16T-FCAP ALUM HYBRID 56UF 20% 25V SMD |
3,235 |
|
Datasheet |
HZC | Tape & Reel (TR) | Active | Hybrid | 56 µF | 25 V | 50mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 0.248" Dia (6.30mm) | 900 mA @ 100 kHz | - | - | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A798D477M2R5PTE009CAP ALUM POLY 470UF 20% 2.5V SMD |
4,157 |
|
Datasheet |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | 2.5 V | 9mOhm | 3000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 5.27 A @ 100 kHz | - | - | 0.122" (3.10mm) | - | Surface Mount | |
|
MAL218697004E3CAP ALUM POLY 56UF 20% 35V SMD |
2,078 |
|
Datasheet |
186 CPNT | Box | Active | Polymer | 56 µF | 35 V | 35mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | Automotive | - | 115 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.3 A @ 100 kHz | - | - | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
PCH1D331MCL6GSCAP ALUM POLY 330UF 20% 20V SMD |
4,922 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 330 µF | 20 V | 19mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.3 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
APXA4R0ARA821MJC0GCAP ALUM POLY 820UF 20% 4V SMD |
1,375 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 820 µF | 4 V | 10mOhm | 15000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 5.5 A @ 100 kHz | - | - | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
RNU0G182MDN1PHCAP ALUM POLY 1800UF 20% 4V TH |
3,109 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1800 µF | 4 V | 7mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 0.394" Dia (10.00mm) | 6.1 A @ 100 kHz | 0.197" (5.00mm) | - | 0.551" (14.00mm) | - | Through Hole | |
|
|
URH1D152MP51020UCAP ALUM POLY 1500UF 20% 20V TH |
2,423 |
|
Datasheet |
URH | Active | Polymer | 1500 µF | 20 V | 16mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 5 A @ 100 kHz | 0.197" (5.00mm) | - | 0.846" (21.50mm) | - | Through Hole |
