Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X477M2R5ATE005CAP ALUM POLY 470UF 20% 2.5V SMD |
3,781 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | 2.5 V | 5mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 6.7 A @ 100 kHz | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218497367E3CAP ALUM POLY 2700UF 20% 4V SMD |
4,969 |
|
Datasheet |
184 CPNS | Box | Active | Polymer | 2700 µF | 4 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 0.394" Dia (10.00mm) | 5.6 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
PCH1E331MCL1GSCAP ALUM POLY 330UF 20% 25V SMD |
4,504 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 330 µF | 25 V | 20mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.2 A @ 100 kHz | - | - | 0.398" (10.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
2SLE100MCAP ALUM POLY 100UF 20% 2V SMD |
2,611 |
|
Datasheet |
PC-CON, SLE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 2 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCH1J680MCL1GSCAP ALUM POLY 68UF 20% 63V SMD |
2,545 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 68 µF | 63 V | 28mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2 A @ 100 kHz | - | - | 0.398" (10.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
RNL1C222MDSASQCAP ALUM POLY 470UF 20% 2V SMD |
3,890 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PCH1C471MCL1GSCAP ALUM POLY 470UF 20% 16V SMD |
2,819 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 470 µF | 16 V | 22mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 0.394" Dia (10.00mm) | 1.9 A @ 100 kHz | - | - | 0.335" (8.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
MPD680M1ED19040RCAP ALUM POLY 68UF 20% 25V SMD |
4,741 |
|
Datasheet |
MPD19 | Case | Active | Polymer | 68 µF | 25 V | 40mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.2 A @ 100 kHz | - | 40 mOhms | 0.079" (2.00mm) | - | Surface Mount | |
|
APXC4R0ARA331MH70GCAP ALUM POLY 330UF 20% 4V SMD |
1,422 |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | 4 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 3.3 A @ 100 kHz | - | - | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ESRD470M06RCAP ALUM POLY 47UF 20% 6.3V SMD |
1,655 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X567M2R5ATE4R5CAP ALUM POLY 560UF 20% 2.5V SMD |
3,009 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 560 µF | 2.5 V | 4.5mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 7 A @ 100 kHz | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
RPS1C122MCN1GSCAP ALUM POLY 1200UF 20% 16V SMD |
1,081 |
|
Datasheet |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 1200 µF | 16 V | 12mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 0.394" Dia (10.00mm) | 5.4 A @ 100 kHz | - | - | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
APXE6R3ARA152MJC0GCAP ALUM POLY 1500UF 20% 6.3V |
3,378 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 1500 µF | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 5.5 A @ 100 kHz | - | - | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
157ALG063MGBJCAP ALUM POLY 150UF 20% 63V TH |
4,649 |
|
Datasheet |
ALG | Bulk | Active | Polymer | 150 µF | 63 V | 25mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | Automotive | - | 145 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.9 A @ 100 kHz | 0.197" (5.00mm) | - | 0.532" (13.50mm) | - | Through Hole | |
|
|
A700X107M010ATE0102478CAP ALUM POLY 100UF 20% 10V SMD |
4,111 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | 10 V | 10mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
APXG160ARA102MJA0GCAP ALUM POLY 1000UF 20% 16V SMD |
4,331 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 1000 µF | 16 V | 18mOhm | 15000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 4.1 A @ 100 kHz | - | - | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

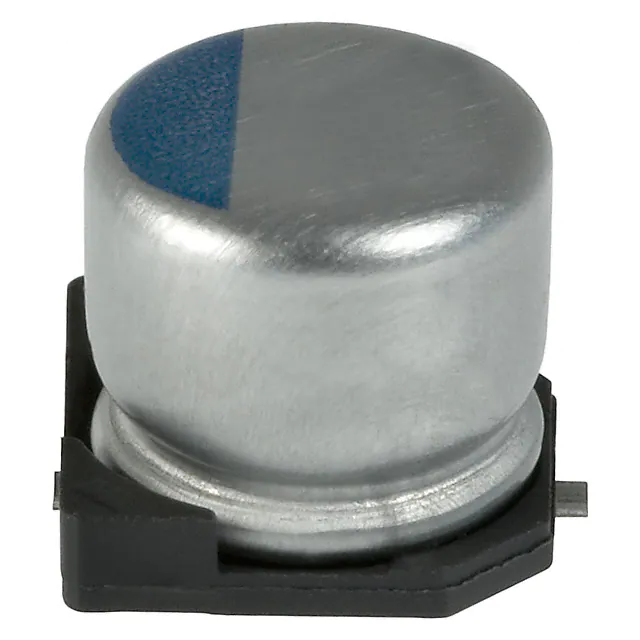

APXA4R0ARA101MF55GCAP ALUM POLY 100UF 20% 4V SMD |
1,610 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 4 V | 26mOhm | 15000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.248" Dia (6.30mm) | 2.45 A @ 100 kHz | - | - | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APXE4R0ARA471MH70GCAP ALUM POLY 470UF 20% 4V SMD |
2,717 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 470 µF | 4 V | 14mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 3.95 A @ 100 kHz | - | - | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

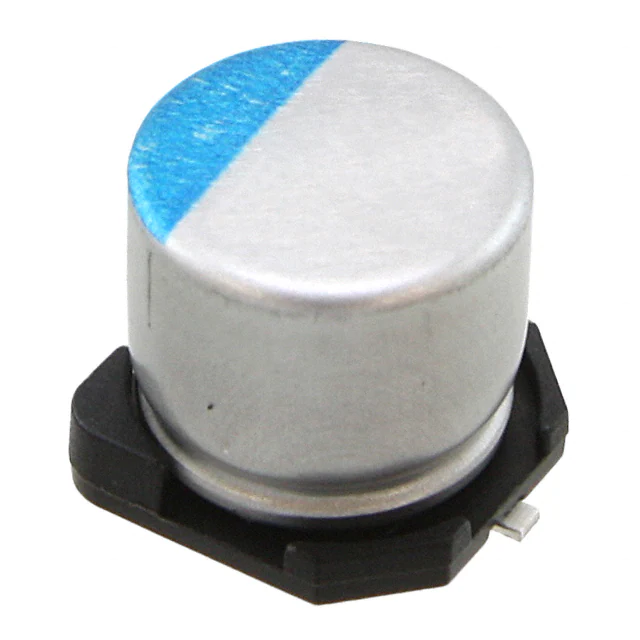

PVM-16V680MF60E-R2CAP ALUM POLY 68UF 20% 16V SMD |
3,756 |
|
Datasheet |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | 16 V | 28mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.248" Dia (6.30mm) | 2.39 A @ 100 kHz | - | - | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPC1B821MP26312VCAP ALUM POLY 820UF 20% 12V TH |
1,631 |
|
Datasheet |
UPC | Active | Polymer | 820 µF | 12 V | 14mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.248" Dia (6.30mm) | 3.3 A @ 100 kHz | 0.098" (2.50mm) | - | 0.531" (13.50mm) | - | Through Hole |
