| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
870025375009CAP ALUM POLY 680UF 20% 16V TH |
439 |
|
Datasheet |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 680 µF | 16 V | 12mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 0.394" Dia (10.00mm) | 5.5 A @ 100 kHz | 0.197" (5.00mm) | - | 0.551" (14.00mm) | - | Through Hole | |
|

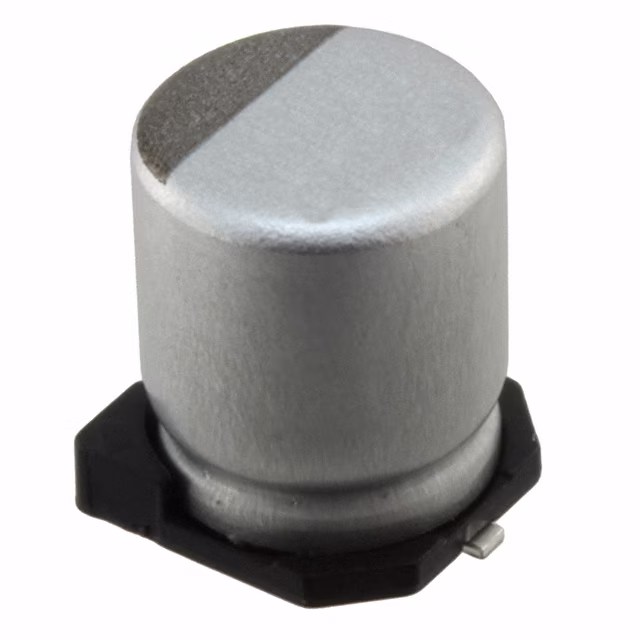

HHXA630ARA220MF80GCAP ALUM HYBRID 22UF 20% 63V SMD |
140 |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 22 µF | 63 V | 80mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 0.248" Dia (6.30mm) | 900 mA @ 100 kHz | - | - | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
HT-Series.jpg)
|
RHT1D151MDN1CAP ALUM POLY 150UF 20% 20V TH |
5,800 |
|
Datasheet |
FPCAP, RHT | Bulk | Active | Polymer | 150 µF | 20 V | 20mOhm | 1000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 435 mA @ 120 Hz | 0.394" Dia (10.00mm) | 4.35 A @ 100 kHz | 0.197" (5.00mm) | - | 0.492" (12.50mm) | - | Through Hole | |
|
875115655013CAP ALUM POLY 33UF 20% 35V SMD |
2,086 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 33 µF | 35 V | 35mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 115 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.3 A @ 100 kHz | - | - | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
GYC1V680MCW1GSCAP ALUM HYBRID 68UF 20% 35V SMD |
1,773 |
|
Datasheet |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | 35 V | 40mOhm | 2000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 285 mA @ 120 Hz | 0.248" Dia (6.30mm) | 1.9 A @ 100 kHz | - | - | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
HHXE250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD |
1,350 |
|
Datasheet |
HXE | Tape & Reel (TR) | Active | Hybrid | 220 µF | 25 V | 22mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 377 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.9 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
RNU1C471MDN1PHCAP ALUM POLY 470UF 20% 16V TH |
678 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 470 µF | 16 V | 10mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 0.394" Dia (10.00mm) | 6.1 A @ 100 kHz | 0.197" (5.00mm) | - | 0.551" (14.00mm) | - | Through Hole | |
|
APXE160ARA390ME61GCAP ALUM POLY 39UF 20% 16V SMD |
282 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 39 µF | 16 V | 35mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.197" Dia (5.00mm) | 2.07 A @ 100 kHz | - | - | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
A755MS477M1CAAE013CAP ALUM POLY 470UF 20% 16V TH |
1,441 |
|
Datasheet |
A755 | Bulk | Active | Polymer | 470 µF | 16 V | 13mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 0.394" Dia (10.00mm) | 5.25 A @ 100 kHz | 0.197" (5.00mm) | - | 0.512" (13.00mm) | - | Through Hole | |
|
|
GYC1H680MCQ1GSCAP ALUM HYBRID 68UF 20% 50V SMD |
814 |
|
Datasheet |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | 50 V | 30mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.2 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
HHXD250ARA331MJA0GCAP ALUMHYB 330UF 20% 25V SMD |
14,186 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 330 µF | 25 V | 20mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 325 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.5 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
PCS0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD |
1,720 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 390 µF | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 0.315" Dia (8.00mm) | 3.2 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
-Photo-Taped-Size-G.jpg)
|
EEH-AZA1J560BCAP ALUM HYBRID 56UF 20% 63V TH |
1,481 |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 56 µF | 63 V | 30mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 0.394" Dia (10.00mm) | 1.8 A @ 100 kHz | 0.197" (5.00mm) | - | 0.413" (10.50mm) | - | Through Hole | |
|
|
EEH-AZA1J680BCAP ALUM HYBRID 68UF 20% 63V TH |
1,429 |
|
Datasheet |
ZA-A | Cut Tape (CT) | Active | Hybrid | 68 µF | 63 V | 30mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 0.394" Dia (10.00mm) | 1.8 A @ 100 kHz | 0.197" (5.00mm) | - | 0.413" (10.50mm) | - | Through Hole | |
|
16SEP150M+TCAP ALUM POLY 150UF 20% 16V TH |
650 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 150 µF | 16 V | 30mOhm | 3000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 0.394" Dia (10.00mm) | 3.02 A @ 100 kHz | 0.197" (5.00mm) | - | 0.315" (8.00mm) | - | Through Hole | |
|
RNU1J330MDN1KXCAP ALUM POLY 33UF 20% 63V TH |
628 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 33 µF | 63 V | 26mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.3 A @ 100 kHz | 0.138" (3.50mm) | - | 0.512" (13.00mm) | - | Through Hole | |
|
16SEPG270MCAP ALUM POLY 270UF 20% 16V TH |
505 |
|
Datasheet |
OS-CON™, SEPG | Bulk | Active | Polymer | 270 µF | 16 V | 8mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 290 mA @ 120 Hz | 0.248" Dia (6.30mm) | 5.8 A @ 100 kHz | 0.098" (2.50mm) | - | 0.394" (10.00mm) | - | Through Hole | |
|
A767KN336M1VLAE031CAP ALUM POLY 33UF 20% 35V SMD |
126 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 33 µF | 35 V | 31mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 95 mA @ 120 Hz | 0.315" Dia (8.00mm) | 1.9 A @ 100 kHz | - | - | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
35PEV68M6.3X8CAP ALUM HYBRID 68UF 20% 35V SMD |
1,635 |
|
Datasheet |
PEV | Tape & Reel (TR) | Active | Hybrid | 68 µF | 35 V | 35mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 0.248" Dia (6.30mm) | - | - | - | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
PCF1C181MCL4GSCAP ALUM POLY 180UF 20% 16V SMD |
1,257 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 180 µF | 16 V | 16mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 0.315" Dia (8.00mm) | 4.4 A @ 100 kHz | - | - | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
