Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Impedance - Secondary (Ohms)	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Mounting Style	Power Level	Approval Agency	Operating Temperature	Size / Dimension	Height - Seated (Max)	Termination Style
108J AUDIO XFMR 1KCT / 600CT TH Hammond Manufacturing	1,458	-	RFQ Sell Excess Inventory	Datasheet	108	Bulk	Active	1.29:1	1kCT	88Ohm	66Ohm	Miniature Epoxy Potted	600CT	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	Through Hole	150mW	-	-	1.030" L x 0.770" W (26.16mm x 19.56mm)	0.770" (19.56mm)	PC Pin
106J AUDIO XFMR 10K / 2KCT TH Hammond Manufacturing	4,657	-	RFQ Sell Excess Inventory	Datasheet	106	Bulk	Active	-	10k	700Ohm	89Ohm	Miniature Epoxy Potted	2kCT	215Hz	-1dB	200V	1dB	-	Through Hole	150mW	-	-	1.080" L x 0.880" W (27.43mm x 22.35mm)	0.950" (24.13mm)	PC Pin
106V AUDIO XFMR 250CT / 8 TH Hammond Manufacturing	1,909	-	RFQ Sell Excess Inventory	Datasheet	106	Bulk	Active	-	250CT	11Ohm	700mOhm	Miniature Epoxy Potted	8	170Hz	-1dB	200V	1dB	-	Through Hole	1.5W	-	-	1.080" L x 0.880" W (27.43mm x 22.35mm)	0.950" (24.13mm)	PC Pin
106S AUDIO XFMR 100CT / 3.2 TH Hammond Manufacturing	2,575	-	RFQ Sell Excess Inventory	Datasheet	106	Bulk	Active	-	100CT	4.4Ohm	300mOhm	Miniature Epoxy Potted	3.2	170Hz	-1dB	200V	1dB	-	Through Hole	1.5W	-	-	1.080" L x 0.880" W (27.43mm x 22.35mm)	0.950" (24.13mm)	PC Pin
106X AUDIO XFMR 500CT / 8 TH Hammond Manufacturing	1,882	-	RFQ Sell Excess Inventory	Datasheet	106	Bulk	Active	-	500CT	26Ohm	700mOhm	Miniature Epoxy Potted	8	170Hz	-1dB	200V	1dB	-	Through Hole	1.5W	-	-	1.080" L x 0.880" W (27.43mm x 22.35mm)	0.950" (24.13mm)	PC Pin

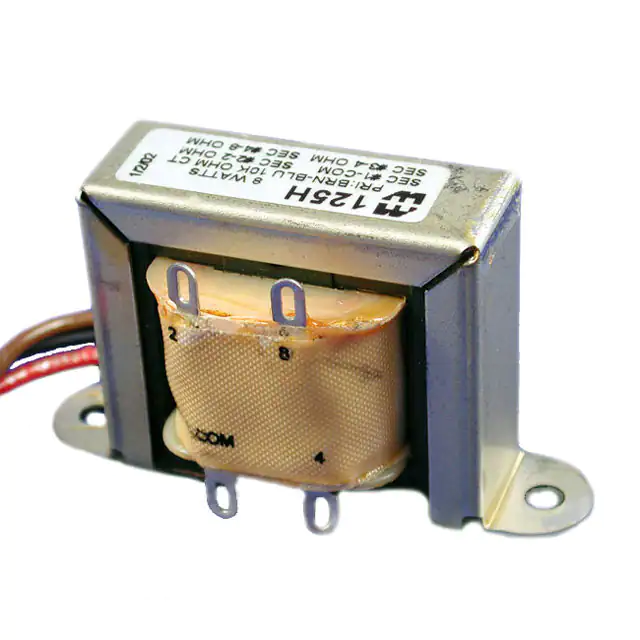

125H AUDIO XFMR 10K / 2, 4, 8 CHAS MT Hammond Manufacturing	2,149	-	RFQ Sell Excess Inventory	Datasheet	125	Bulk	Active	-	10k	-	-	General Purpose	2, 4, 8	150Hz ~ 15kHz	±1dB	-	-	-	Chassis Mount	8W	-	-	2.810" L x 1.000" W (71.37mm x 25.40mm)	1.630" (41.40mm)	Wire Leads
119Y100 AUDIO XFMR 16, 8 / 70V CHAS MNT Hammond Manufacturing	2,021	-	RFQ Sell Excess Inventory	Datasheet	119	Bulk	Active	-	16, 8	-	-	Sound Distribution	70V	50Hz ~ 10kHz	-	70V	-	-	Chassis Mount	100W	-	-	3.500" L x 3.130" W (88.90mm x 79.50mm)	3.810" (96.77mm)	Wire Leads
119Y250 AUDIO XFMR 16, 8 / 70V CHAS MNT Hammond Manufacturing	2,659	-	RFQ Sell Excess Inventory	Datasheet	119	Bulk	Active	-	16, 8	-	-	Sound Distribution	70V	50Hz ~ 10kHz	-	70V	-	-	Chassis Mount	250W	-	-	4.250" L x 3.130" W (107.95mm x 79.50mm)	3.810" (96.77mm)	Wire Leads

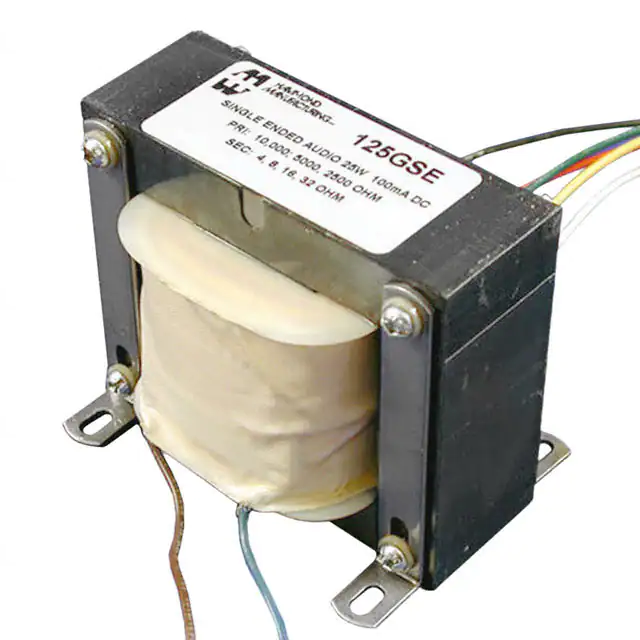

125GSE XFMR 2.5K-10K / 4-32 CHAS MNT Hammond Manufacturing	2,233	-	RFQ Sell Excess Inventory	Datasheet	125SE	Box	Active	-	2.5k ~ 10k	50Ohm	250mOhm	General Purpose	4 ~ 32	100Hz ~ 15kHz	±1dB	2000V @ 1 Second	-	-	Chassis Mount	25W	-	-	4.150" L x 2.880" W (105.41mm x 73.15mm)	3.460" (87.88mm)	Solder Lug
126A AUDIO XFMR 5K / 5K CHAS MNT Hammond Manufacturing	2,188	-	RFQ Sell Excess Inventory	Datasheet	126	Box	Active	-	5k	178Ohm	178Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	5k	20Hz ~ 20kHz	±1dB	400VDC	-	-	Chassis Mount	4W	-	-	3.120" L x 2.500" W (79.25mm x 63.50mm)	3.120" (79.25mm)	Wire Leads

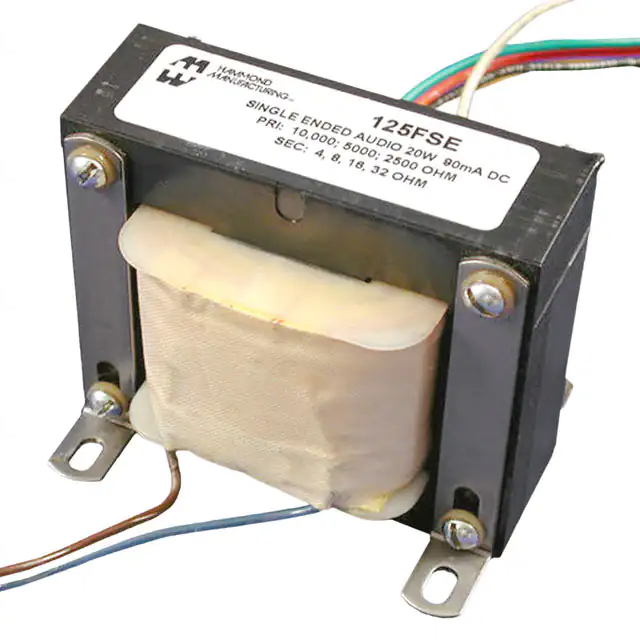

125FSE XFMR 2.5K-10K / 4-32 CHAS MNT Hammond Manufacturing	3,242	-	RFQ Sell Excess Inventory	Datasheet	125SE	Box	Active	-	2.5k ~ 10k	-	-	General Purpose	4 ~ 32	100Hz ~ 15kHz	±1dB	-	-	-	Chassis Mount	20W	-	-	3.760" L x 2.520" W (95.50mm x 64.01mm)	3.150" (80.01mm)	Solder Lug
1615A XFMR 5KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	4,647	-	RFQ Sell Excess Inventory	Datasheet	A	Box	Active	-	5kCT	84.46Ohm, 96.25Ohm	130mOhm, 210mOhm, 270mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	4, 8, 16	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	Chassis Mount	15W	-	-	3.250" L x 2.500" W (82.55mm x 63.50mm)	3.060" (77.72mm)	Wire Leads
1750T AUDIO XFMR 4KCT / 8, 16 CHAS MNT Hammond Manufacturing	4,511	-	RFQ Sell Excess Inventory	Datasheet	1750	Box	Active	15.86:1	4kCT	54Ohm, 60Ohm	170mOhm, 350mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	8, 16	70Hz ~ 15kHz	±1dB	-	-	-	Chassis Mount	30W	-	-	3.125" L x 3.810" W (79.38mm x 96.77mm)	3.863" (98.12mm)	Wire Leads
850LA XFMR 20K 5K/5K / 600 150/150 Hammond Manufacturing	3,826	-	RFQ Sell Excess Inventory	Datasheet	850A	Bulk	Active	-	20k, 5k/5k	2.24kOhm	69Ohm	-	600, 150/150	20Hz ~ 20kHz	±0.5dB	-	1dB	-	Chassis Mount	15dB	-	-	1.700" L x 1.200" W (43.18mm x 30.48mm)	1.650" (41.90mm)	Wire Leads
850HA XFMR 600 150/150 / 1.2K, 300/300 Hammond Manufacturing	3,612	-	RFQ Sell Excess Inventory	Datasheet	850A	Bulk	Active	-	600, 150/150	70Ohm	140Ohm	-	1.2k, 300/300	20Hz ~ 20kHz	±0.5dB	-	1dB	-	Chassis Mount	15dB	-	-	1.700" L x 1.200" W (43.18mm x 30.48mm)	1.650" (41.90mm)	Wire Leads
850JA XFM 600 150/150 / 4.8K 1.2K/1.2K Hammond Manufacturing	3,528	-	RFQ Sell Excess Inventory	Datasheet	850A	Bulk	Active	-	600, 150/150	69Ohm	570Ohm	-	4.8k, 1.2k/1.2k	20Hz ~ 20kHz	±0.5dB	-	1dB	-	Chassis Mount	15dB	-	-	1.700" L x 1.200" W (43.18mm x 30.48mm)	1.650" (41.90mm)	Wire Leads
1650K XFMR 3.4KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	4,486	-	RFQ Sell Excess Inventory	Datasheet	1600	Bulk	Active	-	3.4kCT	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	4, 8, 16	30Hz ~ 30kHz	±1dB	-	±1dB	-	Chassis Mount	50W	-	-	4.000" L x 3.130" W (101.60mm x 79.50mm)	3.810" (96.77mm)	Wire Leads
1750G XFMR 3.8KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	1,806	-	RFQ Sell Excess Inventory	Datasheet	1750	Box	Active	14.21:1	3.8kCT	95.61Ohm	250mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	4, 8, 16	50Hz ~ 12kHz	±1dB	-	-	-	Chassis Mount	50W	-	-	3.750" L x 3.320" W (95.25mm x 84.33mm)	3.873" (98.37mm)	Wire Leads
290SX AUDIO XFMR CHAS MNT Hammond Manufacturing	1,950	-	RFQ Sell Excess Inventory	Datasheet	290	Bulk	Active	-	-	1.1Ohm, 1.24Ohm, 1.34Ohm	100mOhm, 1.68Ohm, 4.72Ohm	-	-	-	-	120/240VAC	-	-	Chassis Mount	-	-	-	3.750" L x 5.625" W (95.25mm x 142.88mm)	4.813" (122.25mm)	Wire Leads
1750R XFMR 2KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	1,444	-	RFQ Sell Excess Inventory	Datasheet	1750	Box	Active	11.11:1	2kCT	25.72Ohm, 12.86Ohm	222mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	4, 8, 16	50Hz ~ 12kHz	±1dB	-	-	-	Chassis Mount	100W	-	-	3.750" L x 3.936" W (95.25mm x 99.97mm)	4.623" (117.42mm)	Wire Leads

Total 938 Record«Prev 1... 16 17 18 192021 22 23...47 Next»
