Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA-400112-NNRELAY GEN PURPOSE SPST 40A 12V |
193 |
|
Datasheet |
- | Bulk | Active | Non Latching | - | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 12VDC | 7.8 VDC | 1.2 VDC | - | - | - | Chassis Mount | -40°C ~ 85°C | Plug In |
|

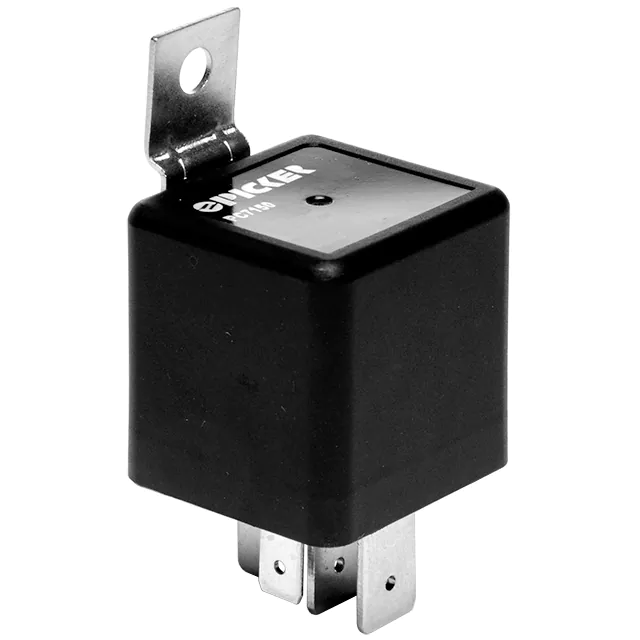

PC7150-1A-C2-24C-RN-XRELAY AUTOMOTIVE SPST 75A 24V |
169 |
|
Datasheet |
- | Bag | Active | Non Latching | 132 mA | SPST-NO (1 Form A) | 75 A | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
4-1393302-1POWER F V23134 |
158 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 60 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
4-1393306-6RELAY AUTOMOTIVE SPST 70A 12V |
209 |
|
Datasheet |
VF7 | Bulk | Active | Non Latching | 167 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
4-1393303-8RELAY GEN PURPOSE SPST 40A 12V |
1,370 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
6-1393302-4RELAY AUTOMOTIVE SPDT 60A 24V |
173 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 60 A | 24VDC - Nom | 24VDC | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
V23134-A4052-X543RELAY AUTOMOTIVE SPDT |
388 |
|
Datasheet |
VF4 | Bulk | Active | Non Latching | 151 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
3-1904131-5RELAY GEN PURPOSE SPDT 40A 12V |
141 |
|
Datasheet |
VF4 | Bulk | Active | Non Latching | 133 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
VF7-11H11RELAY AUTOMOTIVE SPST 70A 24V |
1,183 |
|
Datasheet |
VF7 | Bulk | Active | Non Latching | 83.3 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 24VDC | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC776-1X-12C-XRELAY AUTOMOTIVE SPST 130A 12V |
139 |
|
Datasheet |
- | Bag | Active | Non Latching | 324.3 mA | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 12VDC | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
PC776-1X-24C-XRELAY AUTOMOTIVE SPST 130A 24V |
4,676 |
|
Datasheet |
- | Bag | Active | Non Latching | 170.2 mA | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 24VDC | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
PC776-1X-24S-XRELAY AUTOMOTIVE SPST 130A 24V |
2,344 |
|
Datasheet |
- | Bag | Active | Non Latching | 170.2 mA | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 24VDC | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
A11ASP48VDC1.2RRELAY AUTOMOTIVE SPST 30A 48V |
499 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 25 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 48VDC | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
1393280-6General Purpose Relays V23086C10 |
1,366 |
|
Datasheet |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A21ASP24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
408 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
G8N-1U-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V |
2,932 |
|
Datasheet |
G8N-1 | Tube | Active | Non Latching | 92.3 mA | SPDT (1 Form C) | 30 A | 16VDC - Max | 12VDC | 5.5 VDC | 0.8 VDC | 10 ms | 10 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
G8ND-2S-ASSKPCB RELAY |
781 |
|
Datasheet |
G8ND-2 | Bulk | Active | Non Latching | - | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 12VDC | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
BU5035Relay 30/40 Amp, 12 VDC, SPDT |
1,586 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | - | Quick Connect - 0.250" (6.3mm) |
|
|
1432872-1RELAY AUTOMOTIVE SPDT 40A 6V |
153 |
|
Datasheet |
- | Bulk | Obsolete | Non Latching | - | SPDT (1 Form C) | 40 A | 12VDC | 6VDC | - | - | - | - | - | Through Hole | - | PC Pin |
|
JJM1A-12VRELAY AUTOMOTIVE SPST 20A 12V |
1,206 |
|
Datasheet |
JJM | Tube | Obsolete | Non Latching | 53.3 mA | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
