Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-D-XRELAY AUTOMOTIVE SPST 130A 24V |
2,302 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 170.2 mA | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 24VDC | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V |
1,322 |
|
Datasheet |
PC776 | Tray | Active | Non Latching | 170.2 mA | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 24VDC | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
05903500RELAY24V.100A |
3,379 |
|
Datasheet |
- | Box | Active | Non Latching | - | - | 100 A | 24VDC - Max | - | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | -40°C ~ 100°C | Stud |
|
|
K1157163ADR / GGVS 87-3-3000 |
2,292 |
|
Datasheet |
87, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | SPST-NO (1 Form A) | 300 A | - | 24VDC | - | - | - | - | Diode | Chassis Mount | -40°C ~ 85°C | Connector |
|
880107SD RELAY DUAL POLE |
2,676 |
|
Datasheet |
SD | Bulk | Active | Latching, Single Coil | - | DPST-NO (2 Form A) | 300 A | 12VDC - Nom | 12VDC | - | - | - | - | - | Chassis Mount | -40°C ~ 85°C | Stud |
|
1-1414310-0RELAY AUTOMOTIVE SPST 40A 12V |
2,831 |
|
Datasheet |
- | Bulk | Obsolete | Non Latching | - | SPDT (1 Form C) | 45 A | - | 12VDC | 6.9 VDC | 1.2 VDC | - | - | - | - | -40°C ~ 85°C | - |
|
|
9-1414992-1RELAY GEN PURPOSE SPST 25A 12V |
1,323 |
|
Datasheet |
VFMA | Tray | Obsolete | Non Latching | 100.8 mA | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | -40°C ~ 125°C | Quick Connect - 0.187"/0.250" |
|
CB1-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
4,350 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 84 mA | SPDT (1 Form C) | 20 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
CB1AH-T-P-12VCB RELAY HR 1 FORM A 12V |
3,912 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
5601-24PT Series 30 A Time Delay Relay, |
4,634 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1393302-8Power/Signal Relay, 1 Form C, SP |
1,294 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7421-24BRelay, 160 Amp / 24V, Bulk |
1,278 |
|
Datasheet |
TH Series | Bulk | Active | Non Latching | 170 mA | SPST-NO (1 Form A) | 160 A | - | 24VDC | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | - | Stud, Wire Leads |
|
|
7422-24BRelay, 2x80 Amp / 24V, Bulk |
2,088 |
|
Datasheet |
TH Series | Bulk | Active | Non Latching | 85 mA | DPST-NO (2 Form A) | 80 A | - | 24VDC | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | - | Stud, Wire Leads |
|
|
7610-24BAutomatic Charging Relay Plus - |
1,604 |
|
Datasheet |
- | Bulk | Active | Non Latching | 170 mA | SPST-NO (1 Form A) | 160 A | - | 24VDC | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | - | Stud |
|
|
7612-24BAutomatic Charging Relay Plus - |
4,756 |
|
Datasheet |
- | Bulk | Active | Non Latching | 85 mA | DPST-NO (2 Form A) | 80 A | - | 24VDC | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | - | Stud |
|

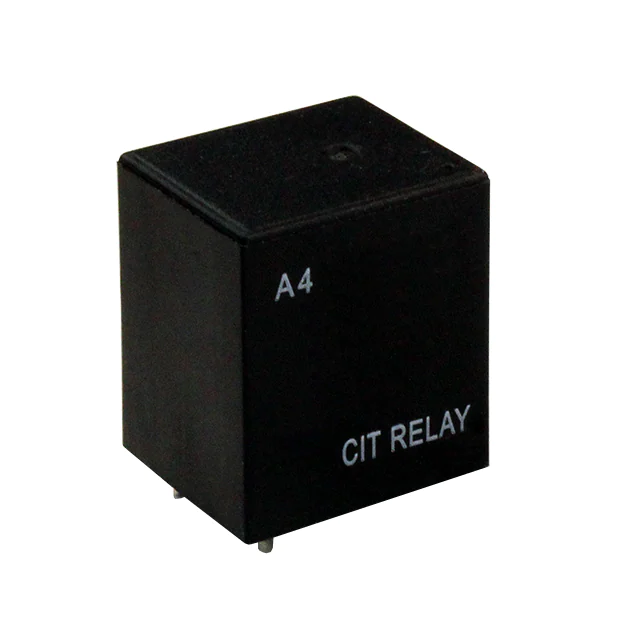

A41CS24VDCRELAY AUTOMOTIVE SPDT 20A 24V |
2,200 |
|
Datasheet |
A4 | Tube | Active | Non Latching | 41.7 mA | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|

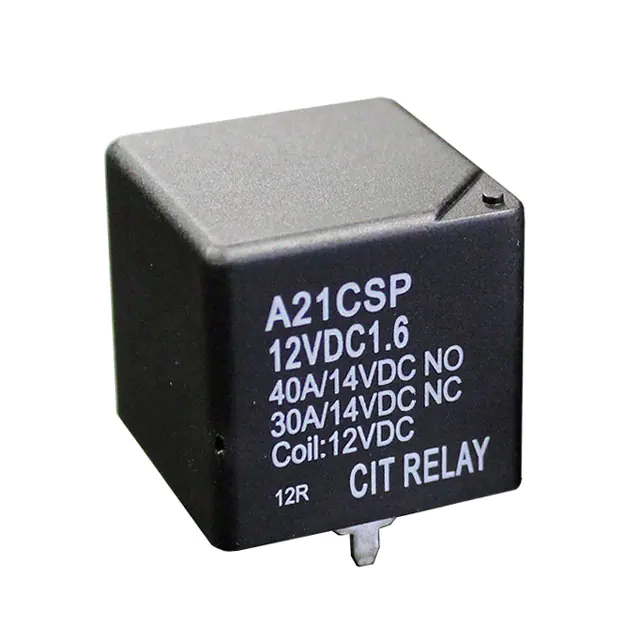

A21CSP12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
2,031 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|

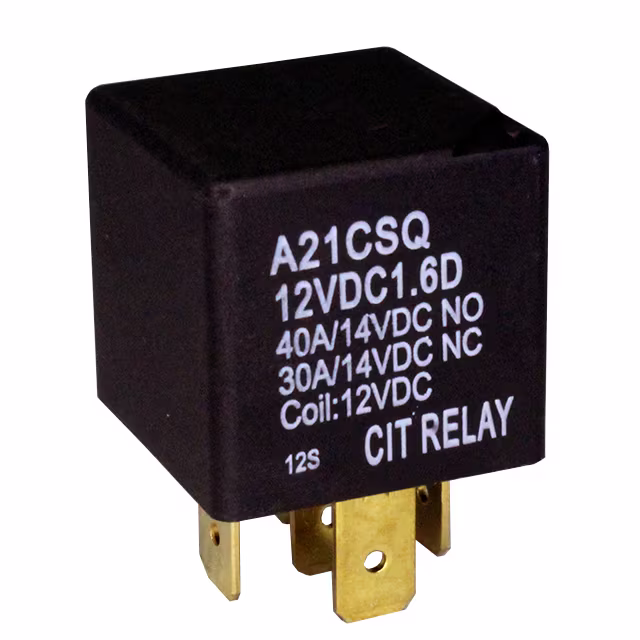

A21CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
2,557 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
CB1-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,693 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|

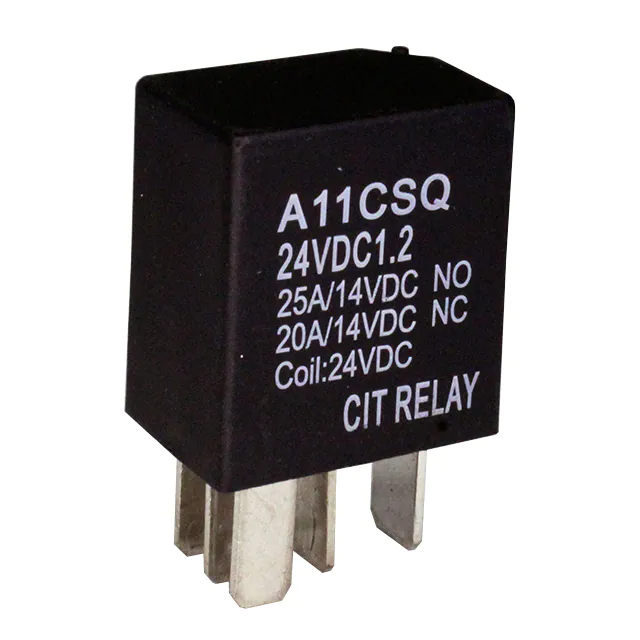

A11CSQ24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V |
3,795 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 50 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 24VDC | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.187" (4.7mm) |
