| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6-1393302-3RELAY AUTOMOTIVE SPDT 60A 24V |
283 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 60 A | 24VDC - Nom | 24VDC | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC775-1A-12C-XRELAY AUTOMOTIVE SPST 75A 12V |
1,013 |
|
Datasheet |
PC775 | Bulk | Active | Non Latching | 240 mA | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 12VDC | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
PC775-1A-12C-D2-XRELAY AUTOMOTIVE SPST 75A 12V |
134 |
|
Datasheet |
PC775 | Bag | Active | Non Latching | 240 mA | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 12VDC | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
G9EJ-1-E-UVD DC12RELAY AUTOMOTIVE SPST 15A 12V |
2,977 |
|
Datasheet |
G9EJ-1-E | Tray | Active | Non Latching | 100 mA | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 12VDC | 7.2 VDC | 0.6 VDC | 50 ms | 30 ms | - | Chassis Mount | -40°C ~ 70°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC775-1A-12C-D-XRELAY AUTOMOTIVE SPST 75A 12V |
166 |
|
Datasheet |
PC775 | Bulk | Active | Non Latching | 240 mA | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 12VDC | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
1416010-1RELAY AUTOMOTIVE SPST 130A 12V |
1,495 |
|
Datasheet |
HCR 150 | Bulk | Active | Non Latching | - | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
1393315-2RELAY AUTO SPST-NO 130A 12V |
354 |
|
Datasheet |
HCR 150 | Bulk | Active | Non Latching | - | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
AEV17012RELAY AUTOMOTIVE SPST 200A 12V |
1,868 |
|
Datasheet |
AEV | Bulk | Last Time Buy | Non Latching | 500 mA | SPST-NO (1 Form A) | 200 A | 450VDC - Nom | 12VDC | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | -40°C ~ 80°C | Wire Leads |
|
1393315-9RELAY AUTO SPST-NO-DM 130A 24V |
139 |
|
Datasheet |
HCR 150 | Bulk | Active | Non Latching | - | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 24VDC | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | - | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
|
1-1393315-1V23132B2002B200=HCR |
1,245 |
|
Datasheet |
High Current Relay 150 | Box | Active | Non Latching | 170.2 mA | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 24VDC | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|

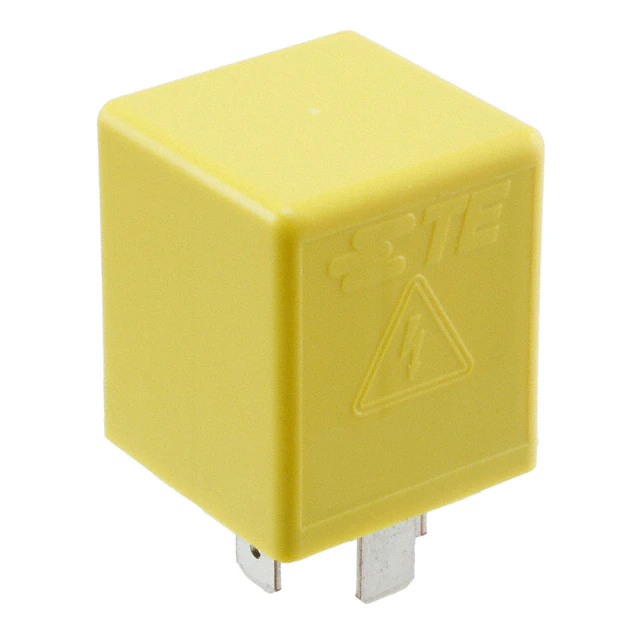

2-1904058-7RELAY AUTO SPST-NO 20A 12V |
139 |
|
Datasheet |
Mini K HV | Bulk | Active | Non Latching | 288 mA | SPST-NO (DM) (1 Form X) | 20 A | 400VDC - Nom | 12VDC | 6.9 VDC | 1.2 VDC | 2.5 ms | 1 ms | Resistor | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|

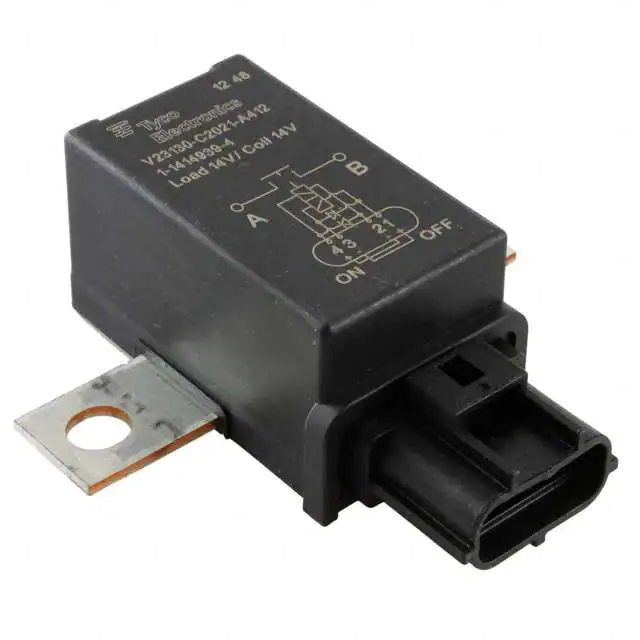

1-1414939-4RELAY AUTO SPST-NO 260A 12V |
483 |
|
Datasheet |
V23130 | Bulk | Active | Latching, Dual Coil | - | SPST-NO (DM) (1 Form X) | 260 A | 12VDC - Nom | 12VDC | 6 VDC | - | 5 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 120°C | Connector |
|

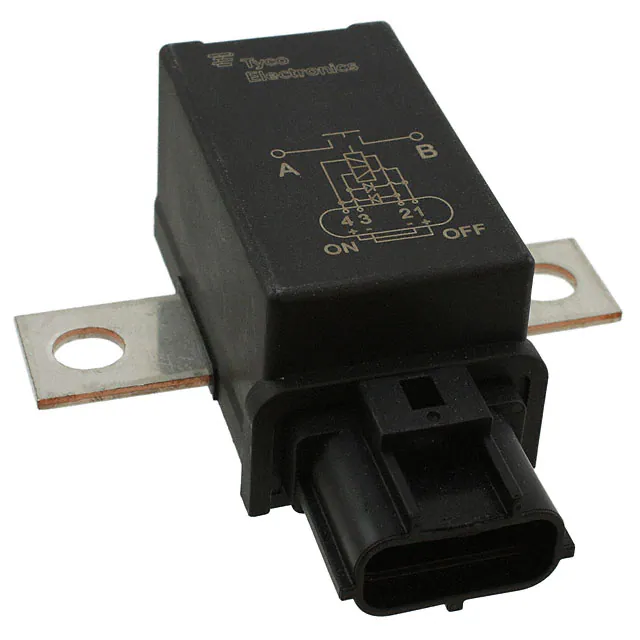

7-1414778-3RELAY AUTO SPST-NO 260A 24V |
2,108 |
|
Datasheet |
V23130 | Bulk | Active | Latching, Dual Coil | - | SPST-NO (DM) (1 Form X) | 260 A | 24VDC - Nom | 24VDC | 12 VDC | - | 5 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | -40°C ~ 120°C | Connector |
|
PC537-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V |
1,393 |
|
Datasheet |
- | Tube | Active | Non Latching | 47.2 mA | SPDT (1 Form C) | - | 28VDC - Max | 12VDC | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | -40°C ~ 105°C | PC Pin |
|
A151CS12VDCRELAY AUTOMOTIVE SPDT 30A 12V |
693 |
|
Datasheet |
A15 | Tube | Active | Non Latching | 57.1 mA | SPDT (1 Form C) | 30 A | 20VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|

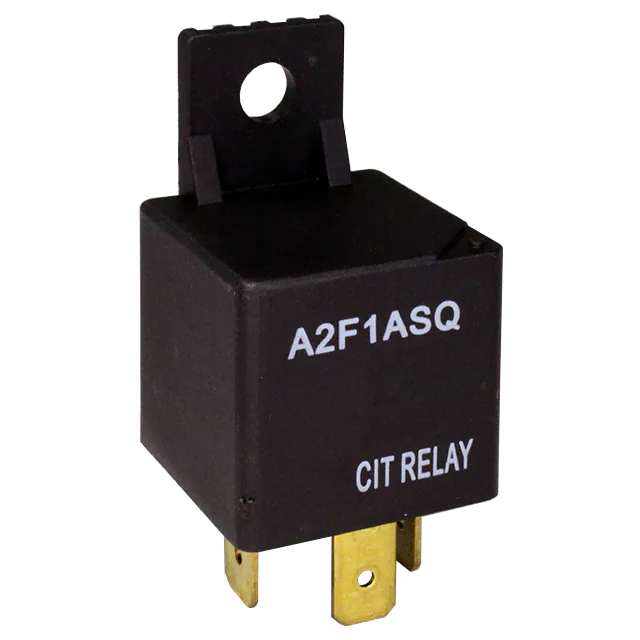

A2F1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
246 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
AZ9891J-1C-12DERELAY AUTOMOTIVE SPDT 30A 12V |
1,580 |
|
Datasheet |
AZ9891J | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 30 A | 16VDC - Max | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
AZ9871-1A-12DETRELAY AUTOMOTIVE SPST 30A 12V |
1,000 |
|
Datasheet |
AZ9871 | Tray | Active | Non Latching | 47.2 mA | SPST-NO (1 Form A) | 30 A | 24VDC - Max | 12VDC | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 105°C | PC Pin |
|
AZ9871-1C-24DETRELAY AUTOMOTIVE SPDT 25A 24V |
1,291 |
|
Datasheet |
AZ9871 | Tray | Active | Non Latching | 23.8 mA | SPDT (1 Form C) | 25 A | 24VDC - Max | 24VDC | 13.8 VDC | 3 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 105°C | PC Pin |
|

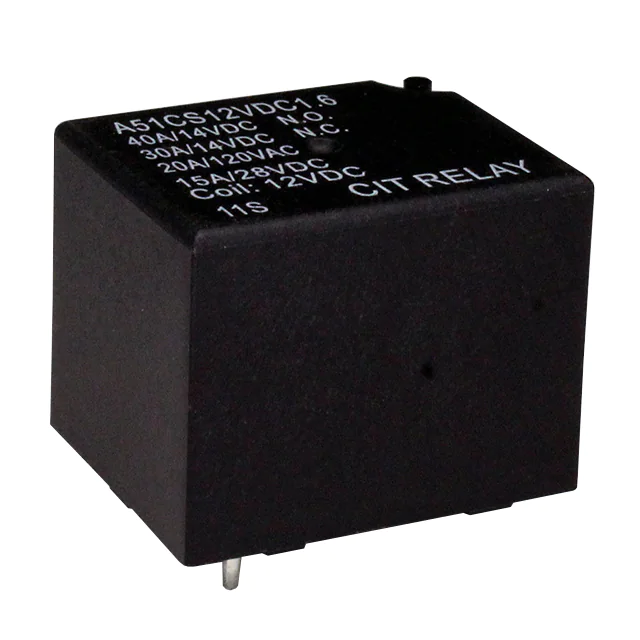

A51CS12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
780 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
