| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21CCQ12VDC1.9RRELAY AUTOMOTIVE SPDT 40A 12V |
1,937 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
A2H1ASP24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
1,514 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
A2H1ASP24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
4,761 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
A2F1CCQ12VDC1.9RRELAY AUTOMOTIVE SPDT 40A 12V |
2,263 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A2F1CCQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
4,033 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A21CCQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
4,376 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
AZ9731-1C-24DC2RELAY AUTOMOTIVE SPDT 40A 24V |
4,784 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | MINI-ISO w/ Plastic mounting bracket | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ9731-1C-24DC3RELAY AUTOMOTIVE SPDT 40A 24V |
1,790 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | MINI-ISO | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ9731-1C-24DC4RELAY AUTOMOTIVE SPDT 40A 24V |
1,599 |
|
Datasheet |
AZ9731 | Box | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 24VDC | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
AZ9741-1C-12DERELAY AUTOMOTIVE SPDT 40A 12V |
1,624 |
|
Datasheet |
AZ9741 | Box | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | -55°C ~ 125°C | PC Pin |
|
A51CE24VDC1.6URELAY AUTOMOTIVE SPDT 40A 24V |
2,325 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|

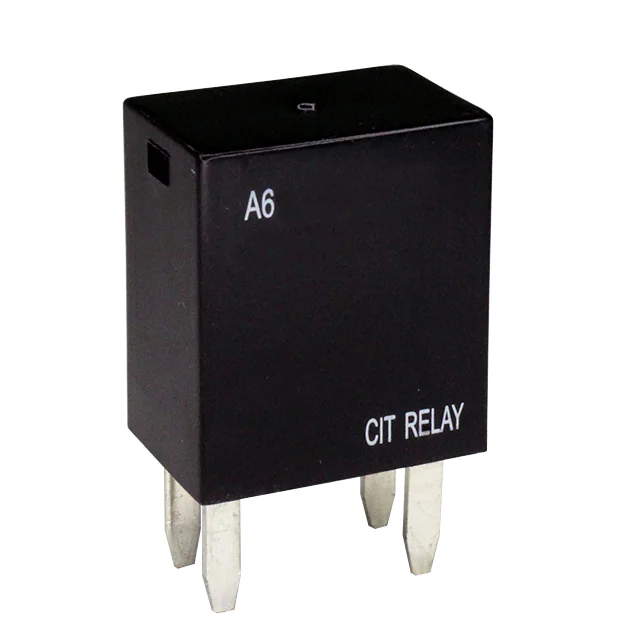

A61AC12VDC1.3DRELAY AUTOMOTIVE SPST 30A 12V |
1,752 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 110.1 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A61AC12VDC1.3RRELAY AUTOMOTIVE SPST 30A 12V |
4,786 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 110.1 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A61AC12VDC.9RRELAY AUTOMOTIVE SPST 30A 12V |
1,676 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A61AC12VDC.9DRELAY AUTOMOTIVE SPST 30A 12V |
1,023 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Through Hole | -40°C ~ 85°C | PC Pin |
|
PC784-1C-12S-XRELAY AUTOMOTIVE SPDT 35A 12V |
3,089 |
|
Datasheet |
- | Tube | Active | Non Latching | 125 mA | SPDT (1 Form C) | 40 A | 28VDC - Max | 12VDC | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | -25°C ~ 125°C | Plug In, Quick Connect - 0.187" (4.7mm) |
|
|
A21CCQ12VDC1.9DRELAY AUTOMOTIVE SPDT 40A 12V |
3,373 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
A2M1CCQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
2,601 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A2M1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
1,884 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|
|
A21CCQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
4,619 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
