| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1904025-5V23234A0004X053-EV-100 |
2,302 |
|
Datasheet |
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | SPDT (1 Form C) | 50 A | 24VDC - Nom | 24VDC | 16 VDC | 3 VDC | 10 ms | 10 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
5-1393303-0RELAY GEN PURPOSE SPST 20A 24V |
4,527 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | 74.1 mA | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 24VDC | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.110" (2.8mm) |
|
CM1A-D-24VCM RELAY 1 FORM A 24V |
2,728 |
|
Datasheet |
CM | Bulk | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In |
|
|
4-1393303-7RELAY GEN PURPOSE SPST 40A 12V |
3,062 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.110" (2.8mm) |
|
|
1-1393302-6RELAY AUTOMOTIVE SPST 70A 12V |
2,124 |
|
Datasheet |
VF7 | Tray | Active | Non Latching | 166 mA | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | - | - | - | Socketable | - | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
02040716ZRELAY AUTOMOTIVE SPDT 40A 12V |
4,435 |
|
Datasheet |
ISO MINI® | Bulk | Obsolete | Non Latching | - | SPDT (1 Form C) | 40 A | 12VDC - Nom | 12VDC | - | - | - | - | Diode | Socketable | - | Plug In |
|
|
5-1393304-6V23134M0052C642 |
2,804 |
|
Datasheet |
V23134, AXICOM | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
6-1393304-7RELAY GEN PURPOSE DPST 15A 24V |
3,716 |
|
Datasheet |
F4 | Box | Active | Non Latching | 74.1 mA | DPST-NO (2 Form A) | 15 A | 28VDC - Nom | 24VDC | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
3-1393303-8RELAY GEN PURPOSE SPST 20A 24V |
1,166 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | 74.1 mA | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 24VDC | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | -40°C ~ 125°C | Plug In, Quick Connect - 0.110" (2.8mm) |
|
|
02040603ZRELAY AUTOMOTIVE SPDT 20A 12V |
1,685 |
|
Datasheet |
MICRO | Bulk | Obsolete | Non Latching | - | SPDT (1 Form C) | 20 A | 12VDC - Nom | 12VDC | - | - | - | - | - | Socketable | - | Plug In |
|
|
02040601ZRELAY AUTOMOTIVE SPST 25A 12V |
3,927 |
|
Datasheet |
MICRO | Bulk | Obsolete | Non Latching | - | SPST-NO (1 Form A) | 25 A | 12VDC - Nom | 12VDC | - | - | - | - | - | Socketable | - | Plug In |
|
|
4-1904049-7V23134A0007X942-EV-590 |
1,580 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | 12VDC - Nom | - | - | - | 7 ms | 2 ms | - | - | -40°C ~ 125°C | - |
|
|
1904056-2V23134A0007X936-EV-441 |
3,118 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | 12VDC - Nom | - | - | - | 7 ms | 2 ms | - | - | -40°C ~ 125°C | - |
|
|
3-1904131-0RELAY V23134-B4052-X546 |
1,852 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | 12VDC - Nom | 12VDC | - | - | 7 ms | 2 ms | - | - | -40°C ~ 125°C | - |
|
|
5-1393304-8POWER F V23134 |
2,908 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | 133.3 mA | DPST-NO (2 Form A) | 25 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
8-1904049-6V23134A0007X933-EV-850 |
3,981 |
|
Datasheet |
V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | 12VDC - Nom | - | - | - | 7 ms | 2 ms | - | - | -40°C ~ 125°C | - |
|

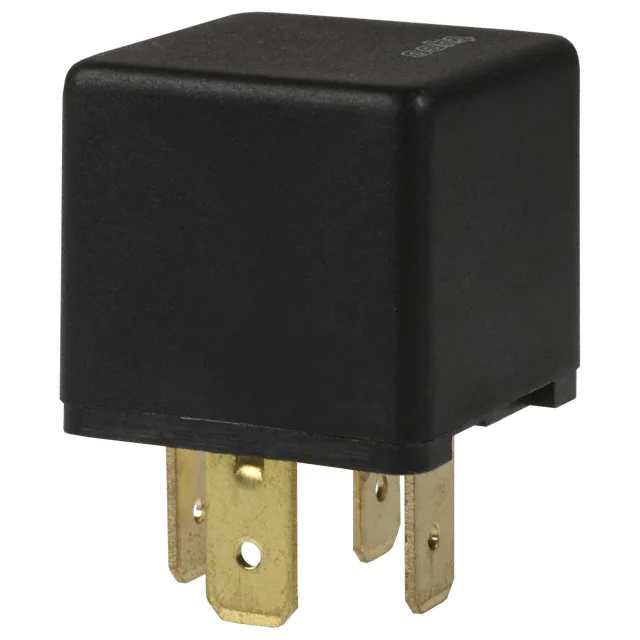

V23134-A3052-X540RELAY GEN PURPOSE SPDT 40A 12V |
2,185 |
|
Datasheet |
VF4 | Bulk | Active | Non Latching | 133 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
1904002-2RELAY AUTO SPST-NO 50A 24V |
1,980 |
|
Datasheet |
HCR 75 | Bulk | Obsolete | Non Latching | - | SPST-NO (1 Form A) | 50 A | 24VDC - Nom | 24VDC | 19 VDC | 1 VDC | - | - | - | Chassis Mount | -40°C ~ 125°C | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
|
|
1904001-4RELAY AUTO SPST-NO 30A 24V |
2,344 |
|
Datasheet |
HCR 75 | Bulk | Obsolete | Non Latching | - | SPST-NO (1 Form A) | 30 A | 24VDC - Nom | 24VDC | 19 VDC | 1 VDC | 7 ms | 2 ms | - | Chassis Mount | -40°C ~ 125°C | Screw Terminal |
|
1904001-2RELAY AUTO SPST-NO 75A 12V |
4,784 |
|
Datasheet |
HCR 75 | Bulk | Obsolete | Non Latching | - | SPST-NO (1 Form A) | 75 A | 12VDC - Nom | 12VDC | 8 VDC | 4 VDC | 10 ms | 15 ms | - | Chassis Mount | -40°C ~ 100°C | Screw Terminal |
