| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Container Type | Size / Dimension | Area (L x W) | Design | Material | Height | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1555CGYBOX PC GRAY 4.72"L X 2.56"W |
4,766 |
|
Datasheet |
1555 | Bulk | Active | Box | 4.724" L x 2.555" W (120.00mm x 64.90mm) | 12.1in² (78cm²) | Cover Included | Polycarbonate | 1.575" (40.00mm) | Gray | 0.118" (3.00mm) | Card Guides, PCB Supports, Watertight | IP66, NEMA 4,4X,12,13 | UL94 HB |
|
1598BSGYBOX PLASTIC GRAY 5.32"L X 5.29"W |
4,725 |
|
Datasheet |
1598S | Bulk | Active | Box | 5.323" L x 5.287" W (135.20mm x 134.29mm) | 28.0in² (181cm²) | Split Sides and End Panel(s) | ABS | 2.008" (51.00mm) | Gray | - | Card Guides, PCB Supports | IP54 | - |
|
232,BKBOX ABS BLACK 4.38"L X 3.25"W |
1,747 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
A31,BKBOX ABS BLACK 5.3"L X 5.1"W |
3,459 |
|
Datasheet |
A | Bulk | Active | Box | 5.300" L x 5.100" W (134.62mm x 129.54mm) | 27.0in² (174cm²) | Split Sides and End Panel(s) | Plastic, ABS | 1.710" (43.43mm) | Black | 0.090" (2.29mm) | PCB Supports | IP40 | UL94 HB |
|
DMB-4778BOX ABS/PC GRAY 8.35"L X 3.55"W |
4,136 |
|
Datasheet |
DMB | Bulk | Active | Box | 8.350" L x 3.550" W (212.09mm x 90.17mm) | 29.6in² (191cm²) | Cover Included | Plastic, ABS/PC Blend | 2.260" (57.40mm) | Gray | - | DIN Rail Mount | - | UL94 V-0 |
|

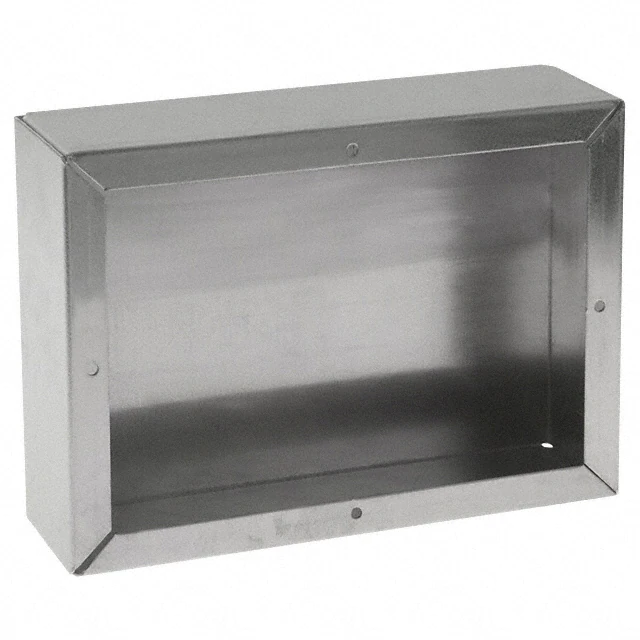

AC-402CHASSIS ALUM NATURAL 7"L X 5"W |
2,933 |
|
Datasheet |
- | Bulk | Active | Chassis | 7.000" L x 5.000" W (177.80mm x 127.00mm) | 35.0in² (226cm²) | Open End(s) | Metal, Aluminum | 2.000" (50.80mm) | Natural | 0.040" (1.02mm) | - | - | - |
|
1550PBKBOX ALUM BLACK 3.15"L X 2.17"W |
3,628 |
|
Datasheet |
1550 | Bulk | Active | Box | 3.150" L x 2.165" W (80.00mm x 55.00mm) | 6.82in² (44.0cm²) | Cover Included | Aluminum | 0.988" (25.10mm) | Black | 0.059" (1.50mm) | - | IP54 | - |
|

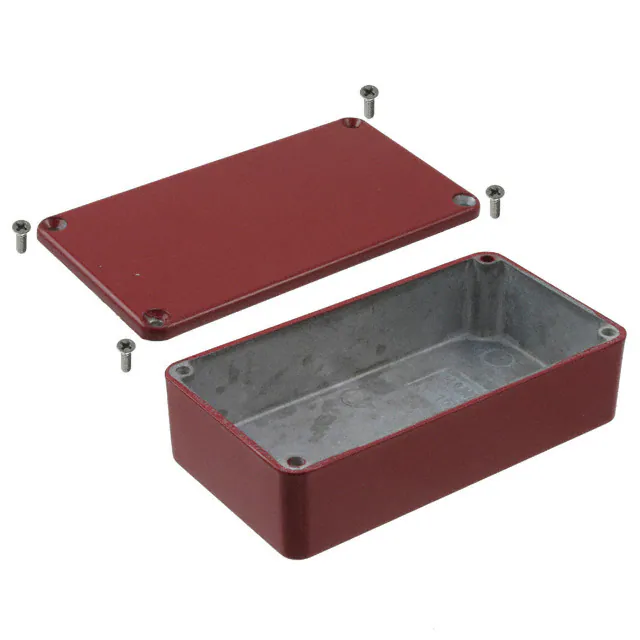

1590BRDSTOMP BOX ALUM 4.41"L X 2.38"W |
1,797 |
|
Datasheet |
1590 | Bulk | Active | Stomp Box | 4.409" L x 2.382" W (111.99mm x 60.50mm) | 10.4in² (67cm²) | Cover Included | Aluminum | 1.220" (30.99mm) | Red | 0.080" (2.03mm) | EMI Shielded | IP54 | - |
|
1591CTCLBOX PLAS TRN CLR 4.72"L X 2.56"W |
2,485 |
|
Datasheet |
1591T | Bulk | Active | Box | 4.724" L x 2.559" W (120.00mm x 65.00mm) | 12.1in² (78cm²) | Cover Included | Polycarbonate | 1.567" (39.80mm) | Translucent - Clear | 0.079" (2.01mm) | Card Guides | IP54 | UL94 V-0 |
|
RM2055MBOX ABS GRAY 7.48"L X 5.51"W |
4,030 |
|
Datasheet |
RM | Bulk | Active | Box | 7.480" L x 5.512" W (189.99mm x 140.00mm) | 41.2in² (266cm²) | Split Sides and End Panel(s) | ABS | 1.988" (50.50mm) | Gray | - | PCB Supports | IP43 | UL94 HB |
|
1590WLBFLBKBOX ALUM BLACK 1.99"L X 1.99"W |
3,546 |
|
Datasheet |
1590WFL | Bulk | Active | Box | 1.988" L x 1.988" W (50.50mm x 50.50mm) | 3.95in² (25.5cm²) | Cover Included | Aluminum | 1.217" (30.91mm) | Black | 0.080" (2.03mm) | Mounting Flange, Watertight | IP65 | - |
|
1550Z101BKBOX ALUM BLACK 1.98"L X 1.78"W |
4,008 |
|
Datasheet |
1550Z | Bulk | Active | Box | 1.976" L x 1.780" W (51.19mm x 45.21mm) | 3.52in² (22.7cm²) | Cover Included | Thick Wall Aluminum | 1.197" (30.40mm) | Black | 0.102" (2.59mm) | Wall Mount, Watertight | IP66, NEMA 1,4,4X,12,13 | - |
|
1554B2GYBOX PC GRAY 2.56"L X 2.56"W |
3,172 |
|
Datasheet |
1554 | Bag | Active | Box | 2.559" L x 2.559" W (65.00mm x 65.00mm) | 6.55in² (42.3cm²) | Cover Included | Polycarbonate | 1.575" (40.00mm) | Gray | 0.118" (3.00mm) | PCB Supports, Watertight | IP68, NEMA 4,4X,12,13, UL-508 | UL94 5VA |
|
PN-1332-DGMBBOX ABS GRAY 6.35"L X 3.21"W |
4,533 |
|
Datasheet |
PN | Bulk | Active | Box | 6.346" L x 3.205" W (161.20mm x 81.41mm) | 20.3in² (131cm²) | Cover Included | Plastic, ABS | 2.165" (55.00mm) | Gray | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|

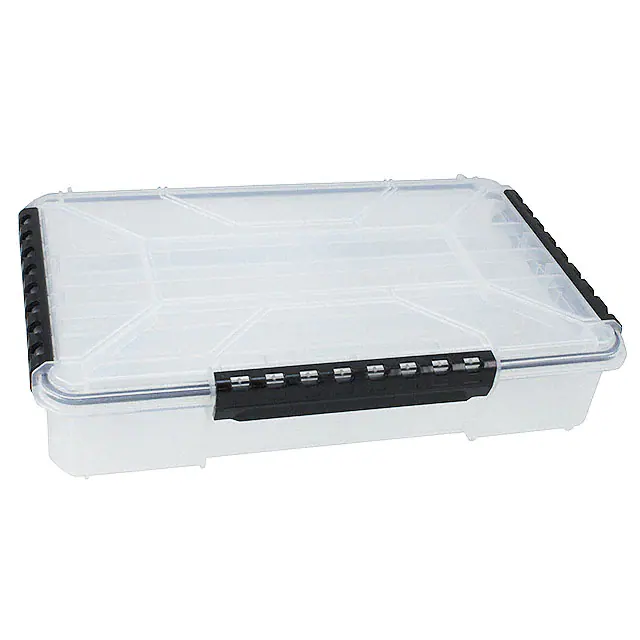

6751TECOMP STORAGE PLAS 14"L X 8.87"W |
1,565 |
|
Datasheet |
Tuff Tainer™ | Bulk | Active | Component Storage | 14.000" L x 8.874" W (355.60mm x 225.40mm) | 124in² (800cm²) | Hinged Door, Lid | Plastic, Polypropylene | 3.000" (76.20mm) | Clear | - | Compartments/Drawers - 1, Watertight | - | - |
|
RP1055BFCBOX PC GRAY/CLR 4.53"L X 3.26"W |
4,189 |
|
Datasheet |
RP | Bag | Active | Box | 4.530" L x 3.260" W (115.06mm x 82.80mm) | 14.7in² (95cm²) | Cover Included | Polycarbonate | 1.570" (39.88mm) | Gray, Clear Cover/Door | 0.080" (2.03mm) | - | - | UL94 HB |
|

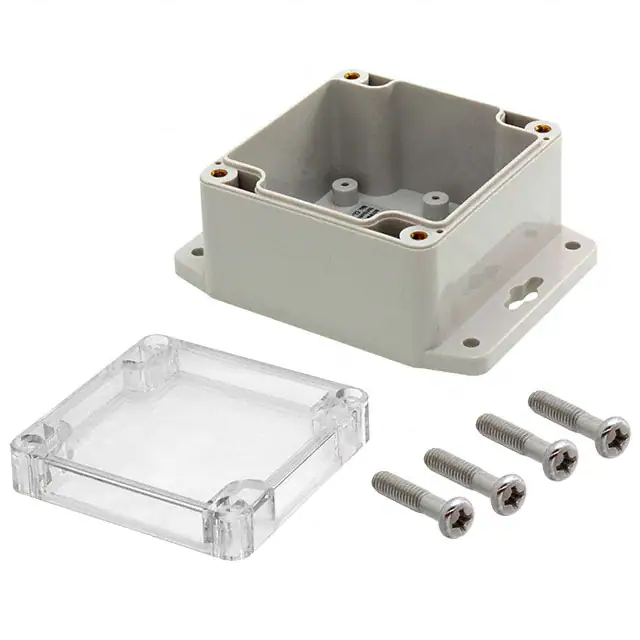

PN-1331-CMBBOX PLASTIC 3.28"L X 3.2"W |
4,919 |
|
Datasheet |
PN | Bulk | Active | Box | 3.283" L x 3.196" W (83.39mm x 81.18mm) | 10.4in² (67cm²) | Cover Included | Plastic, Polycarbonate | 2.165" (55.00mm) | Gray, Clear Cover/Door | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
PTR-28483BOX ABS LGT GRY 8.6"L X 6.3"W |
2,447 |
|
Datasheet |
PTR | Box | Active | Box | 8.600" L x 6.300" W (218.44mm x 160.02mm) | 54.2in² (350cm²) | Cover Included, Hinged Door | Plastic, ABS | 3.940" (100.08mm) | Light Gray | 0.080" (2.03mm) | - | IP67, NEMA 4,4X,6,6P | UL94 HB |
|
1550WPBKBOX ALUM BLACK 3.15"L X 2.17"W |
2,013 |
|
Datasheet |
1550W | Bulk | Active | Box | 3.150" L x 2.165" W (80.00mm x 55.00mm) | 6.82in² (44.0cm²) | Cover Included | Aluminum | 0.988" (25.10mm) | Black | 0.059" (1.50mm) | Watertight | IP66 | - |
|

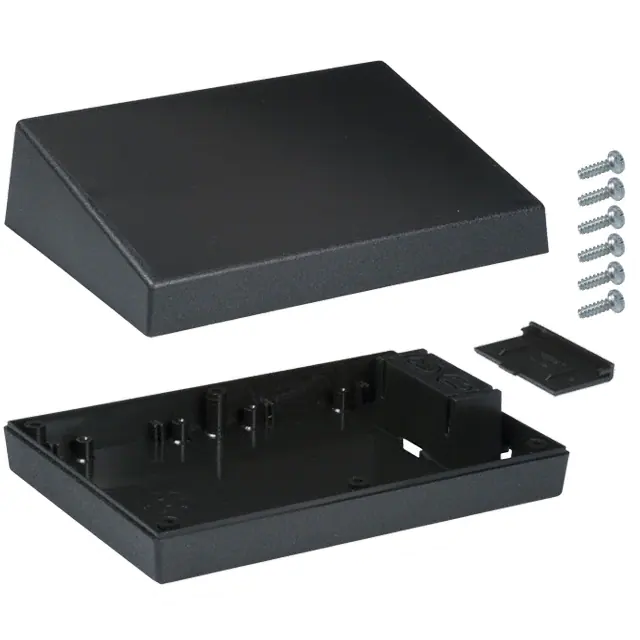

27S,BKBOX ABS BLACK 6.88"L X 4.88"W |
2,027 |
|
Datasheet |
SL | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 33.6in² (217cm²) | Split Sides and Slanted Top | Plastic, ABS | 2.490" (63.25mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
