| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Container Type | Size / Dimension | Area (L x W) | Design | Material | Height | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
116-006BOX PLASTIC GRAY 7.09"L X 4.33"W |
4,595 |
|
Datasheet |
TK | Bulk | Active | Box | 7.090" L x 4.330" W (180.09mm x 109.98mm) | 30.7in² (198cm²) | Cover Included, Hand Held | Plastic, Polystyrene | 3.540" (89.92mm) | Gray | - | Knockouts, Sealing Gasket | IP66, NEMA 4X | - |
|
1786860000HOUSING ALUM GRY 5.34"L X 1.79"W |
3,722 |
|
Datasheet |
RockStar® | Bulk | Active | Housing | 5.335" L x 1.791" W (135.50mm x 45.50mm) | 9.55in² (61.6cm²) | Cover Included | Metal, Aluminum | 2.992" (76.00mm) | Gray | - | Cable Management | IP65, NEMA 4X | - |
|
1550Z137BOX ALUM 4.76"L X 4.76"W |
1,698 |
|
Datasheet |
1550Z | Bulk | Active | Box | 4.756" L x 4.756" W (120.80mm x 120.80mm) | 22.6in² (146cm²) | Cover Included | Thick Wall Aluminum | 4.004" (101.70mm) | Unpainted | 0.121" (3.07mm) | Wall Mount, Watertight | IP66, NEMA 1,4,4X,12,13 | - |
|
1590WQFBKBOX ALUM BLACK 4.72"L X 4.72"W |
4,668 |
|
Datasheet |
1590WF | Bag | Active | Box | 4.724" L x 4.724" W (120.00mm x 119.99mm) | 22.3in² (144cm²) | Cover Included | Aluminum | 1.398" (35.51mm) | Black | 0.098" (2.49mm) | Mounting Flange, Watertight | IP65 | - |
|
120-405BOX PC GRAY 5.12"L X 5.12"W |
1,132 |
|
Datasheet |
TK | Bulk | Active | Box | 5.120" L x 5.120" W (130.05mm x 130.05mm) | 26.2in² (169cm²) | Cover Included, Hand Held | Plastic, Polycarbonate (PC) | 2.950" (74.93mm) | Gray | - | Knockouts | IP66, NEMA 4X | - |
|
1590K432BOX ALUM UNPTD 7.4"L X 4.72"W |
4,129 |
|
Datasheet |
1590K | Bulk | Active | Box | 7.402" L x 4.724" W (188.01mm x 119.99mm) | 35.0in² (226cm²) | Cover Included | Aluminum | 2.209" (56.11mm) | Unpainted | 0.070" (1.78mm) | Card Guides, Sealed | IP54 | - |
|
RP1385BFBOX ABS GRAY 8.66"L X 5.91"W |
1,642 |
|
Datasheet |
RP | Bag | Active | Box | 8.660" L x 5.910" W (219.96mm x 150.11mm) | 51.2in² (330cm²) | Cover Included | ABS | 4.330" (109.98mm) | Gray | 0.080" (2.03mm) | - | - | UL94 HB |
|
1590Z110BKBOX ALUM BLACK 3.13"L X 2.94"W |
2,147 |
|
Datasheet |
1590Z | Bulk | Active | Box | 3.134" L x 2.937" W (79.60mm x 74.60mm) | 9.20in² (59.4cm²) | Cover Included | Thick Wall Aluminum | 2.039" (51.79mm) | Black | 0.080" (2.03mm) | Watertight | IP68 | - |
.jpg)
|
1411TTBOX ALUM GRAY 9.99"L X 5.99"W |
2,824 |
|
Datasheet |
1411 | Bag | Active | Box | 9.990" L x 5.990" W (253.75mm x 152.15mm) | 59.8in² (386cm²) | U Shaped Pieces | Metal, Aluminum | 2.010" (51.05mm) | Gray | 0.040" (1.02mm) | - | - | - |
|
1455Q1602BKBOX ALUM BLACK 6.3"L X 4.92"W |
4,368 |
|
Datasheet |
1455 | Bulk | Active | Box | 6.299" L x 4.921" W (159.99mm x 124.99mm) | 31.0in² (200cm²) | End Panel(s) | Aluminum | 2.028" (51.51mm) | Black | 0.060" (1.52mm) | Card Guides | - | - |
|
1555S2GYBOX PC GRAY 6.3"L X 6.3"W |
1,969 |
|
Datasheet |
1555 | Bag | Active | Box | 6.299" L x 6.299" W (159.99mm x 159.99mm) | 39.7in² (256cm²) | Cover Included | Polycarbonate | 3.543" (90.00mm) | Gray | 0.128" (3.25mm) | Card Guides, PCB Supports, Watertight | IP68, NEMA 4,4X,12,13, UL-508 | UL94 5VA, UL94 V-0 |
|
1456FE1BKBUCONSOLE ALUM 6.68"L X 5.77"W |
1,252 |
|
Datasheet |
1456 | Bulk | Active | Console | 6.680" L x 5.770" W (169.67mm x 146.56mm) | 38.4in² (248cm²) | Slanted Top | Metal, Aluminum | 2.640" (67.06mm) | Black, Blue | 0.081" (2.06mm) | Slope, 10° | - | - |
|

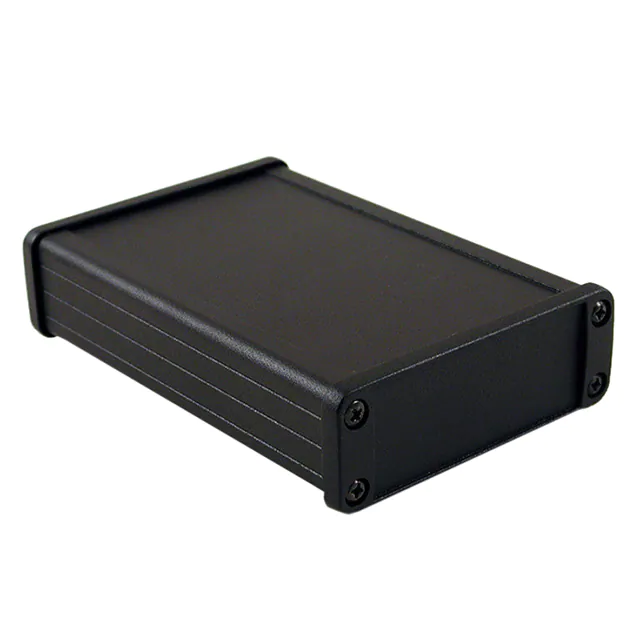

1457J1201BKBOX ALUM BLACK 5.16"L X 3.42"W |
2,980 |
|
Datasheet |
1457 | Bulk | Active | Box | 5.163" L x 3.424" W (131.15mm x 86.96mm) | 17.6in² (114cm²) | End Panel(s) | Aluminum | 1.237" (31.43mm) | Black | 0.060" (1.52mm) | Card Guides, Watertight | IP65 | - |
|
1457C802EBOX ALUM NATURAL 3.52"L X 2.44"W |
3,127 |
|
Datasheet |
1457-EMI | Bag | Active | Box | 3.523" L x 2.441" W (89.48mm x 62.00mm) | 8.60in² (55.5cm²) | End Panel(s) | Aluminum | 1.335" (33.91mm) | Natural | 0.060" (1.52mm) | Card Guides, EMI Shielded, Mounting Flange, Watertight | IP54 | - |
|

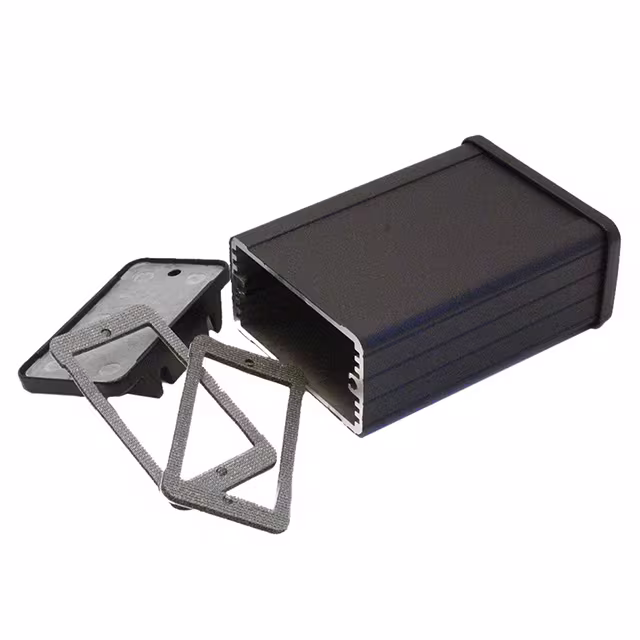

1457C802EBKBOX ALUM BLACK 3.52"L X 2.44"W |
2,743 |
|
Datasheet |
1457-EMI | Bag | Active | Box | 3.523" L x 2.441" W (89.48mm x 62.00mm) | 8.60in² (55.5cm²) | End Panel(s) | Aluminum | 1.335" (33.91mm) | Black | 0.060" (1.52mm) | Card Guides, EMI Shielded, Mounting Flange, Watertight | IP54 | - |
|
1455P2202BKBOX ALUM BLACK 8.66"L X 4.92"W |
4,193 |
|
Datasheet |
1455 | Bag | Active | Box | 8.661" L x 4.921" W (219.99mm x 124.99mm) | 42.6in² (275cm²) | End Panel(s) | Aluminum | 1.201" (30.51mm) | Black | 0.060" (1.52mm) | Card Guides | - | - |
|
1555U2GYBOX PC GRAY 7.87"L X 4.72"W |
3,493 |
|
Datasheet |
1555 | Bag | Active | Box | 7.874" L x 4.724" W (200.00mm x 119.99mm) | 37.2in² (240cm²) | Cover Included | Polycarbonate | 3.543" (90.00mm) | Gray | 0.118" (3.00mm) | Card Guides, PCB Supports, Watertight | IP68, NEMA 4,4X,12,13, UL-508 | UL94 5VA, UL94 V-0 |
|
1591RGBKBOX PLASTIC BLK 4.74"L X 3.69"W |
3,888 |
|
Datasheet |
1591 | Bulk | Active | Box | 4.744" L x 3.685" W (120.50mm x 93.60mm) | 17.5in² (113cm²) | Cover Included | ABS | 1.338" (33.99mm) | Black | 0.079" (2.01mm) | Card Guides, Flame Retardant | IP54 | UL94 V-0 |
|
1454PBOX STEEL BLK/GRY 10"L X 5.25"W |
3,960 |
|
Datasheet |
1454 | Bulk | Active | Box | 10.000" L x 5.250" W (254.00mm x 133.35mm) | 52.5in² (339cm²) | U Shaped Pieces | Metal, Steel | 3.500" (88.90mm) | Black, Gray | 20 Gauge | - | - | - |
|
1557HABKBOX PC BLACK 7.87"L X 7.87"W |
2,874 |
|
Datasheet |
1557 | Bag | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 62.0in² (400cm²) | Cover Included, Hand Held | Polycarbonate | 2.756" (70.00mm) | Black | 0.118" (3.00mm) | - | IP66 | UL94-HB |
