| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Container Type | Size / Dimension | Area (L x W) | Design | Material | Height | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A419V,BKBOX ABS BLACK 7.12"L X 5"W |
4,018 |
|
Datasheet |
A | Bulk | Active | Box | 7.120" L x 5.000" W (180.85mm x 127.00mm) | 35.6in² (230cm²) | Split Sides and End Panel(s) | Plastic, ABS | 1.310" (33.27mm) | Black | 0.120" (3.05mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|

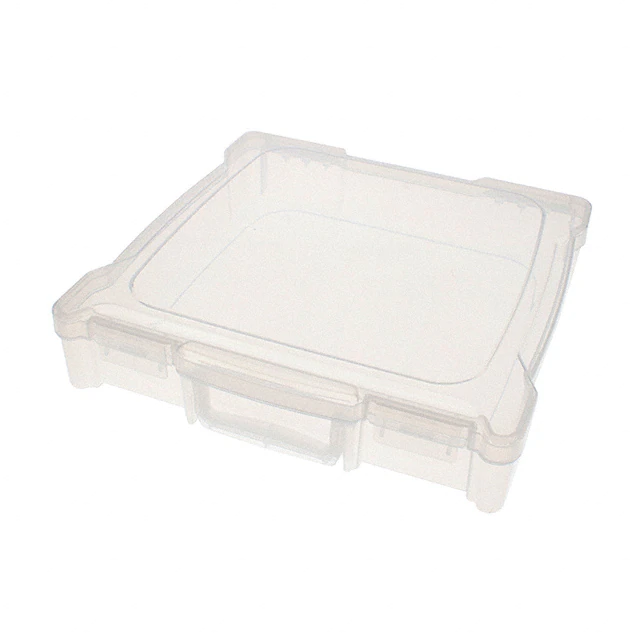

6763TECOMP STORAGE PLASTIC CLEAR |
4,247 |
|
Datasheet |
- | Bulk | Active | Component Storage | - | 192in² (1239cm²) | Hinged Door, Lid | Plastic, Polypropylene | 3.000" (76.20mm) | Clear | - | - | - | - |
|
A279V,BKBOX ABS BLACK 5.31"L X 3.35"W |
2,581 |
|
Datasheet |
A | Bulk | Active | Box | 5.310" L x 3.350" W (134.87mm x 85.09mm) | 17.8in² (115cm²) | Split Sides and End Panel(s) | Plastic, ABS | 1.500" (38.10mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
JB-3950-KOBOX STEEL GRAY 4"L X 3"W |
1,752 |
|
Datasheet |
JB | Box | Active | Box | 4.000" L x 3.000" W (101.60mm x 76.20mm) | 12.0in² (77cm²) | Cover Included | Metal, Steel | 4.000" (101.60mm) | Gray | 16 Gauge | Knockouts, Wall Mount | NEMA 1 | - |
|
PT-11657BOX ABS BLACK 5.63"L X 3.25"W |
4,543 |
|
Datasheet |
Plastibox Style H | Bulk | Active | Box | 5.625" L x 3.250" W (142.88mm x 82.55mm) | 18.3in² (118cm²) | Split Sides | Plastic, ABS | 1.372" (34.85mm) | Black | 0.100" (2.54mm) | PCB Supports | - | UL94 5VA |
|
JB-3950BOX STEEL GRAY 4"L X 3"W |
4,039 |
|
Datasheet |
JB | Box | Active | Box | 4.000" L x 3.000" W (101.60mm x 76.20mm) | 12.0in² (77cm²) | Cover Included | Metal, Steel | 4.000" (101.60mm) | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
|

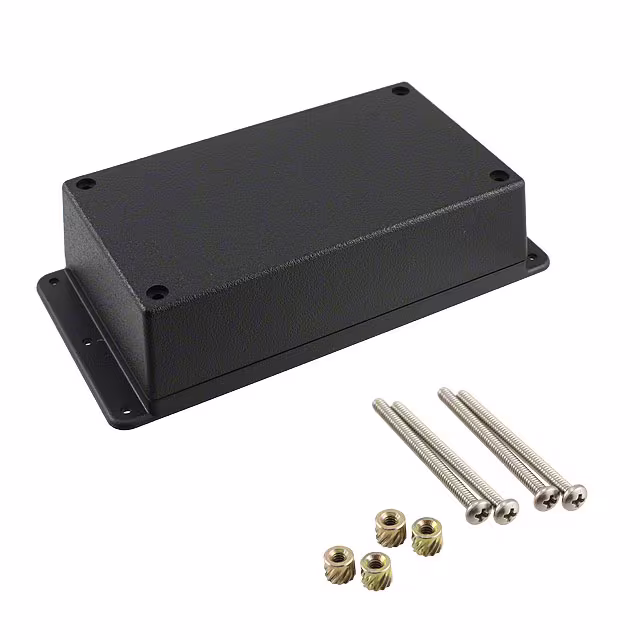

WM052R,BKBOX ABS BLACK 5.62"L X 3.25"W |
3,588 |
|
Datasheet |
WM | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Cover Included | Plastic, ABS | 1.600" (40.64mm) | Black | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
A219V,BKBOX ABS BLACK 4.25"L X 2.6"W |
1,036 |
|
Datasheet |
A | Bulk | Active | Box | 4.250" L x 2.600" W (107.95mm x 66.04mm) | 11.2in² (72cm²) | Split Sides and End Panel(s) | Plastic, ABS | 1.120" (28.45mm) | Black | 0.070" (1.78mm) | Battery Compartment, 9V and AA, PCB Supports | IP40 | UL94 HB |
|
1309441903-IHOUSING GRAY |
1,889 |
|
Datasheet |
- | Bulk | Active | Housing | - | - | - | - | - | Gray | - | - | - | - |
|

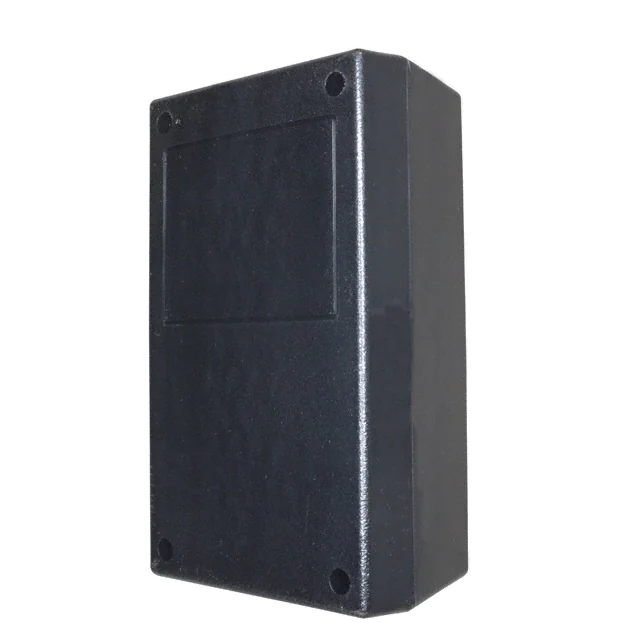

152I,BKBOX ABS BLACK 5.62"L X 3.25"W |
3,334 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
152I,GYBOX ABS GRAY 5.62"L X 3.25"W |
3,728 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
G20-7100BOX ABS GRAY 3.5"L X 3.5"W |
3,159 |
|
Datasheet |
G20 | Bulk | Active | Box | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 12.3in² (79cm²) | Cover Included | Plastic, ABS | 2.200" (55.88mm) | Gray | 0.062" (1.57mm) | Prototype Board | - | - |
|
CU-5123-BBOX ALUM BLACK 3.63"L X 1.5"W |
2,168 |
|
Datasheet |
Econobox | Bulk | Active | Box | 3.625" L x 1.500" W (92.08mm x 38.10mm) | 5.44in² (35.1cm²) | Cover Included | Metal, Aluminum | 1.218" (30.94mm) | Black | 0.062" (1.57mm) | - | - | - |
|
252,GYBOX ABS GRAY 5.62"L X 3.25"W |
4,296 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
WM053,BKBOX ABS BLACK 5.62"L X 3.25"W |
4,225 |
|
Datasheet |
WM | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Cover Included | Plastic, ABS | 2.100" (53.34mm) | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM053I,BKBOX ABS BLACK 5.62"L X 3.25"W |
4,011 |
|
Datasheet |
WM | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Cover Included | Plastic, ABS | 2.100" (53.34mm) | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
PPB-11861-BKBOX ABS BLACK 4.116"L X 2.242"W |
3,874 |
|
Datasheet |
PPB | Bulk | Active | Box | 4.116" L x 2.242" W (104.55mm x 56.95mm) | 9.22in² (59.5cm²) | Hand Held, Split Sides | Plastic, ABS | 1.648" (41.86mm) | Black | - | Mounting Flange, PCB Supports, Power Plug | - | UL94 V-0 |
|

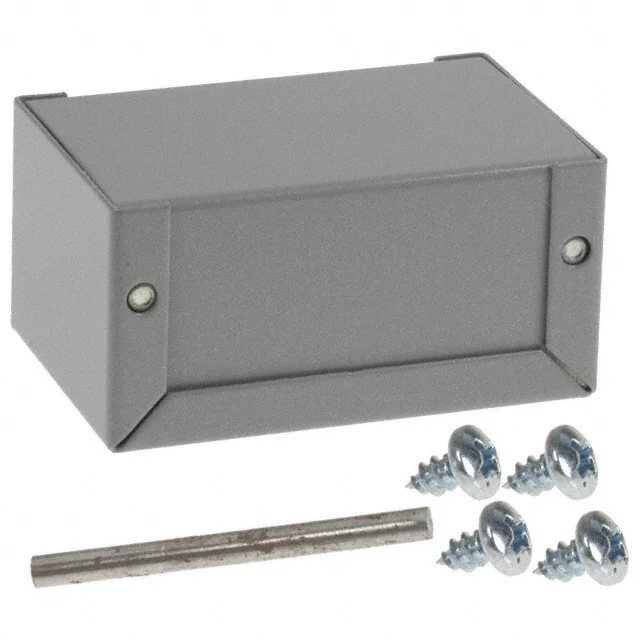

CU-2101-BBOX ALUM GRAY 3.25"L X 2.13"W |
4,064 |
|
Datasheet |
Mini-Box | Bulk | Active | Box | 3.250" L x 2.125" W (82.55mm x 53.98mm) | 6.91in² (44.6cm²) | U Shaped Pieces | Metal, Aluminum | 1.625" (41.28mm) | Gray | 0.040" (1.02mm) | - | - | - |
|

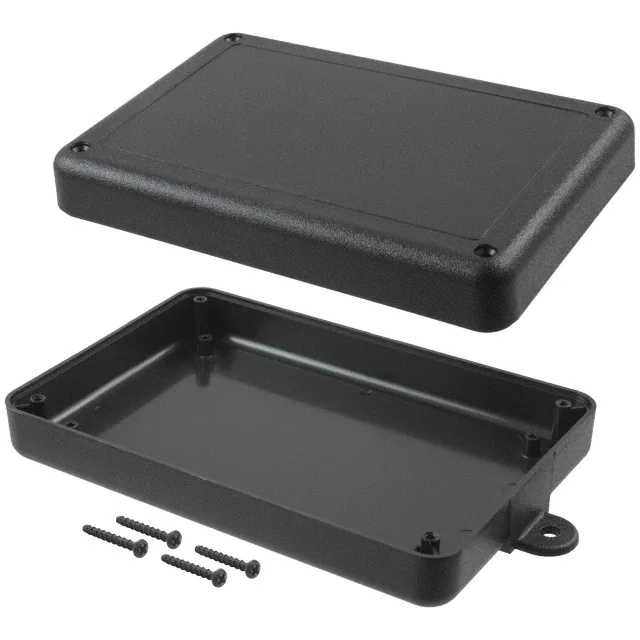

PT-11668-MBBOX ABS BLACK 6.02"L X 4.01"W |
4,210 |
|
Datasheet |
Plastibox Style H | Bulk | Active | Box | 6.016" L x 4.010" W (152.81mm x 101.85mm) | 24.0in² (155cm²) | Split Sides | Plastic, ABS | 1.500" (38.10mm) | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|
PTS-25301-CBOX PLASTIC 2.56"L X 1.97"W |
3,384 |
|
Datasheet |
PTS | Bulk | Active | Box | 2.559" L x 1.969" W (65.00mm x 50.00mm) | 5.03in² (32.5cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | 2.165" (55.00mm) | Gray, Clear Cover/Door | 0.098" (2.50mm) | Flame Retardant, PCB Supports, Sealing Gasket | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
