| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Container Type | Size / Dimension | Area (L x W) | Design | Material | Height | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
115-402ENCLOSURE PLAS 3.7"L X 2.56"W |
4,299 |
|
Datasheet |
- | Bulk | Active | Enclosure | 3.700" L x 2.560" W (93.98mm x 65.02mm) | 9.47in² (61.1cm²) | Cover Included | Plastic, Polystyrene | - | Light Gray | - | - | IP66, NEMA 4X | - |
|
BC-CGS-060905BOX PLAS LGT GRY 3.74"L X 2.56"W |
2,947 |
|
Datasheet |
S | Bulk | Active | Box | 3.740" L x 2.559" W (95.00mm x 65.00mm) | 9.57in² (61.8cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | 2.165" (55.00mm) | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
132,GYBOX ABS GRAY 4.38"L X 3.25"W |
4,007 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
|
PI-1909-LGBOX ABS GRAY 7.48"L X 3.91"W |
2,137 |
|
Datasheet |
PI | Bulk | Active | Box | 7.480" L x 3.910" W (189.99mm x 99.31mm) | 29.3in² (189cm²) | Split Sides and End Panel(s) | Plastic, ABS | 1.570" (39.88mm) | Gray | 0.080" (2.03mm) | Card Guides, PCB Supports | - | UL94 HB |
|

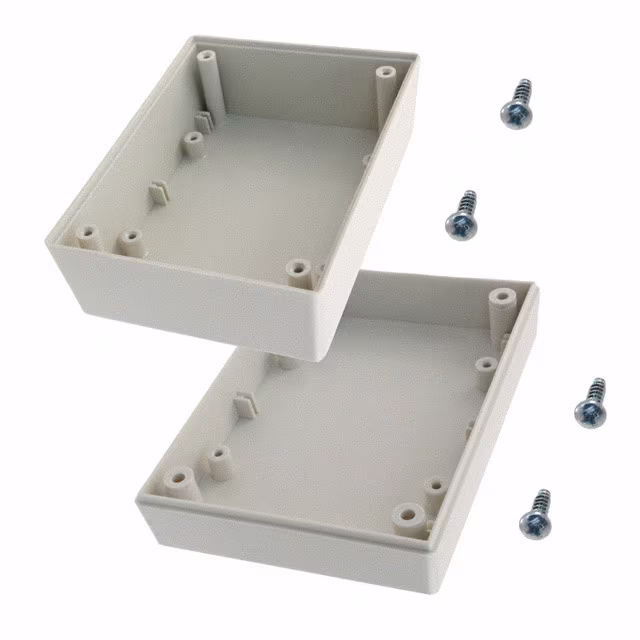

132I,ALBOX ABS ALMOND 4.38"L X 3.25"W |
1,665 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
132I,BKBOX ABS BLACK 4.38"L X 3.25"W |
4,917 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
132I,GYBOX ABS GRAY 4.38"L X 3.25"W |
2,587 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
232C,GYBOX PLASTIC 4.38"L X 3.25"W |
1,188 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | 2.000" (50.80mm) | Gray, Clear Cover/Door | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | - |
|
H45,BKBOX ABS BLACK 3.9"L X 2.2"W |
1,177 |
|
Datasheet |
H | Bulk | Active | Box | 3.900" L x 2.200" W (99.06mm x 55.88mm) | 8.58in² (55.4cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | 0.940" (23.88mm) | Black | 0.080" (2.03mm) | PCB Supports | IP40 | UL94 HB |
|
H-45AAA,BKBOX ABS BLACK 3.9"L X 2.2"W |
1,320 |
|
Datasheet |
H | Bulk | Active | Box | 3.900" L x 2.200" W (99.06mm x 55.88mm) | 8.58in² (55.4cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | 0.940" (23.88mm) | Black | 0.080" (2.03mm) | Battery Compartment, AAA, PCB Supports | IP40 | UL94 HB |
|
|
130-475BOX PLASTIC GRAY/CLR |
2,073 |
|
Datasheet |
TK | Bulk | Active | Box | - | - | Cover Included, Hand Held | Plastic, Polycarbonate | 1.400" (35.56mm) | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 V-2 |
|
05S,ALBOX ABS ALMOND 5.640"L X 3.26"W |
1,404 |
|
Datasheet |
SL | Bulk | Active | Box | 5.640" L x 3.260" W (143.26mm x 82.80mm) | 18.4in² (119cm²) | Split Sides and Slanted Top | Plastic, ABS | 0.910" (23.11mm) | Almond | 0.100" (2.54mm) | PCB Supports | IP40 | UL94 HB |
|
05S,GYBOX ABS GRAY 5.640"L X 3.26"W |
3,803 |
|
Datasheet |
SL | Bulk | Active | Box | 5.640" L x 3.260" W (143.26mm x 82.80mm) | 18.4in² (119cm²) | Split Sides and Slanted Top | Plastic, ABS | 0.910" (23.11mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40 | UL94 HB |
|
|
PRT-14930ENCLOSURE PLAS BLACK 3.3"L X 2"W |
1,802 |
|
Datasheet |
PRT | Bulk | Active | Enclosure | 3.300" L x 2.000" W (83.82mm x 50.80mm) | 6.65in² (42.9cm²) | Cover Included, Hand Held | Plastic | 1.000" (25.40mm) | Black | - | - | - | - |
|
|
AC-1402CHASSIS ALUM NAT 4.5"L X 3.5"W |
4,601 |
|
Datasheet |
- | Bulk | Active | Chassis | 4.500" L x 3.500" W (114.30mm x 88.90mm) | 15.8in² (102cm²) | Open End(s) | Metal, Aluminum | 1.000" (25.40mm) | Natural | 0.040" (1.02mm) | - | - | - |
|
223,ALBOX ABS ALMOND 4.1"L X 2.6"W |
4,601 |
|
Datasheet |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
223,BKBOX ABS BLACK 4.1"L X 2.6"W |
4,204 |
|
Datasheet |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
223,GYBOX ABS GRAY 4.1"L X 2.6"W |
2,214 |
|
Datasheet |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

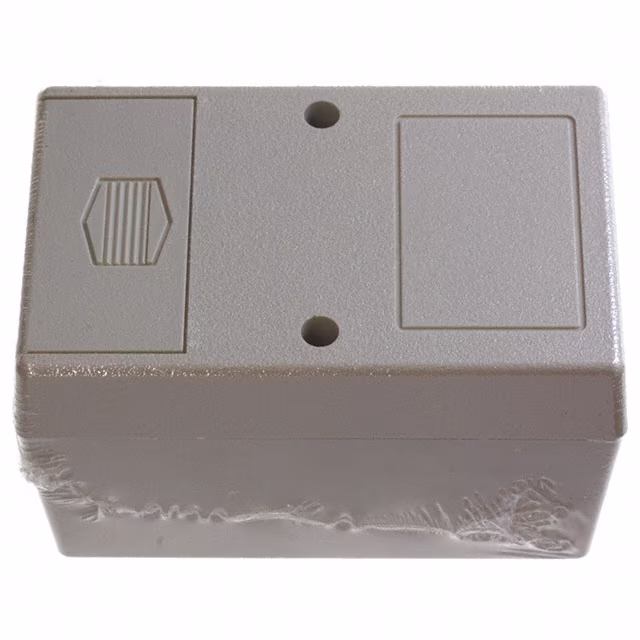

223I,ALBOX ABS ALMOND 4.1"L X 2.6"W |
1,462 |
|
Datasheet |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
223I,BKBOX ABS BLACK 4.1"L X 2.6"W |
3,666 |
|
Datasheet |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 10.7in² (69cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
