| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Container Type | Size / Dimension | Area (L x W) | Design | Material | Height | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
601111120BOX PLASTIC 4.33"L X 4.33"W |
3,162 |
|
Datasheet |
ECO | Bulk | Active | Box | 4.331" L x 4.331" W (110.00mm x 110.00mm) | 18.7in² (121cm²) | Cover Included | Plastic, Polystyrene | 2.598" (66.00mm) | Gray, Clear Cover/Door | 0.118" (3.00mm) | Flame Retardant, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
|
BC-CGS-081807BOX PLAS LGT GRY 7.09"L X 3.15"W |
2,894 |
|
Datasheet |
S | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 22.3in² (144cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | 2.756" (70.00mm) | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CTS-081807BOX PLASTIC CLR 7.09"L X 3.15"W |
4,885 |
|
Datasheet |
S | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 22.3in² (144cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | 2.756" (70.00mm) | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
H65PC,ALBOX ABS ALMOND 4.94"L X 2.75"W |
1,254 |
|
Datasheet |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | 0.940" (23.88mm) | Almond | 0.080" (2.03mm) | Pocket Clip | IP40 | UL94 HB |
|
H65PC,GYBOX ABS GRAY 4.94"L X 2.75"W |
3,784 |
|
Datasheet |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | 0.940" (23.88mm) | Gray | 0.080" (2.03mm) | Pocket Clip | IP40 | UL94 HB |
|
HH-3400-BCBOX ABS GRAY 7.09"L X 3.94"W |
2,157 |
|
Datasheet |
Grabbers Style A | Bulk | Active | Box | 7.087" L x 3.937" W (180.01mm x 100.00mm) | 27.9in² (180cm²) | Hand Held, Split Sides | Plastic, ABS | 1.575" (40.00mm) | Gray | - | Battery Compartment, 9V and AA | - | UL94 V-0 |
|
|
PI-1911BOX ABS GRAY 7.48"L X 3.91"W |
2,436 |
|
Datasheet |
PI | Bulk | Active | Box | 7.480" L x 3.910" W (189.99mm x 99.31mm) | 29.3in² (189cm²) | Split Sides and End Panel(s) | Plastic, ABS | 3.150" (80.00mm) | Gray | 0.080" (2.03mm) | Card Guides, PCB Supports | - | UL94 V-0 |
|
|
CU-5476BOX ALUM NATURAL 6"L X 3.25"W |
4,708 |
|
Datasheet |
Econobox | Bulk | Active | Box | 6.000" L x 3.250" W (152.40mm x 82.55mm) | 19.5in² (126cm²) | Cover Included | Metal, Aluminum | 2.000" (50.80mm) | Natural | 0.094" (2.39mm) | - | - | - |
|
152I2AA,BKBOX ABS BLACK 5.62"L X 3.25"W |
3,235 |
|
Datasheet |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.000" (50.80mm) | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|
072,ALBOX ABS ALMOND 6.88"L X 4.88"W |
1,049 |
|
Datasheet |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | 1.400" (35.56mm) | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
072,GYBOX ABS GRAY 6.88"L X 4.88"W |
2,539 |
|
Datasheet |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | 1.400" (35.56mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
253,ALBOX ABS ALMOND 5.62"L X 3.25"W |
4,552 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
253,BKBOX ABS BLACK 5.62"L X 3.25"W |
2,140 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
253,GYBOX ABS GRAY 5.62"L X 3.25"W |
4,048 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
253I,BKBOX ABS BLACK 5.62"L X 3.25"W |
4,818 |
|
Datasheet |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | 2.500" (63.50mm) | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
072I,ALBOX ABS ALMOND 6.88"L X 4.88"W |
2,949 |
|
Datasheet |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | 1.400" (35.56mm) | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
072I,GYBOX ABS GRAY 6.88"L X 4.88"W |
3,290 |
|
Datasheet |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | 1.400" (35.56mm) | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

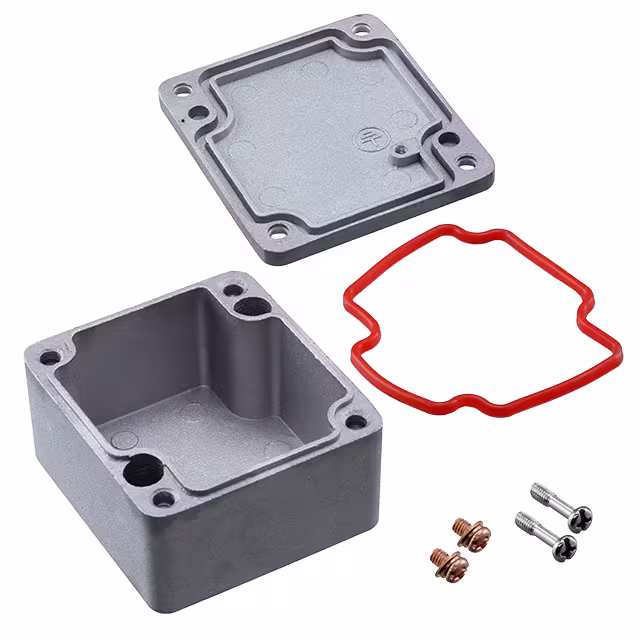

0936040190BOX ALUM NATURAL 2.52"L X 2.28"W |
2,605 |
|
Datasheet |
GWconnect 93604 | Bulk | Active | Box | 2.520" L x 2.283" W (64.00mm x 58.00mm) | 5.75in² (37.1cm²) | Cover Included | Metal, Aluminum | 1.417" (35.99mm) | Natural | 0.138" (3.50mm) | PCB Supports | IP66, IP69 | - |
|
H754AA,PC,BKBOX ABS BLACK 7.2"L X 3.65"W |
2,153 |
|
Datasheet |
H | Bulk | Active | Box | 7.200" L x 3.650" W (182.88mm x 92.71mm) | 26.3in² (170cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | 1.260" (32.00mm) | Black | 0.080" (2.03mm) | Battery Compartment, AA, PCB Supports, Pocket Clip | IP40 | UL94 HB |
|

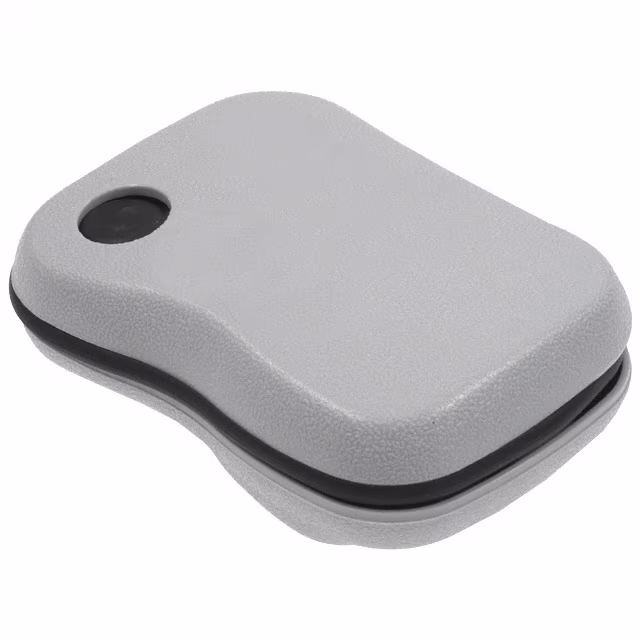

CA10B1,GYKEY FOB ABS GRAY 3.4"L X 2.56"W |
1,951 |
|
Datasheet |
CA | Box | Active | Key FOB | 3.400" L x 2.560" W (86.36mm x 65.02mm) | 8.70in² (56.1cm²) | Hand Held, Split Sides | Plastic, ABS | 1.020" (25.91mm) | Gray | - | Buttons - 1 | IP67 | UL94 HB |
