Delay Lines
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Number of Taps/Steps | Function | Tap Increment | Available Total Delays | Number of Independent Delays | Delay to 1st Tap | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100Z-125+IC DELAY LINE 5TAP 125NS 8SOIC |
101 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 25 ns | 125ns | 1 | 25ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100Z-30+IC DELAY LINE 5TAP 30NS 8SOIC |
1,497 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 6 ns | 30ns | 1 | 6ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
DS1100U-60+IC DELAY LINE 5TAP 60NS 8UMAX |
126 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 12 ns | 60ns | 1 | 12ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100U-200+IC DELAY LINE 5TAP 200NS 8UMAX |
2,095 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 40 ns | 200ns | 1 | 40ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135Z-6+IC DELAY LINE 6NS 8SOIC |
117 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | - | 6ns | 3 | 6ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LZ-250+IC DELAY LINE 5TAP 250NS 8SOIC |
496 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 50 ns | 250ns | 1 | 50ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LZ-45+IC DELAY LINE 5TAP 45NS 8SOIC |
252 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 9 ns | 45ns | 1 | 9ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LZ-50+IC DELAY LINE 5TAP 50NS 8SOIC |
100 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 10 ns | 50ns | 1 | 10ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LZ-200+IC DELAY LINE 5TAP 200NS 8SOIC |
3,487 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 40 ns | 200ns | 1 | 40ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LZ-500+IC DELAY LINE 5TAP 500NS 8SOIC |
4,694 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 100 ns | 500ns | 1 | 100ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100LU-25+IC DELAY LINE 5TAP 25NS 8UMAX |
103 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 5 ns | 25ns | 1 | 5ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-500+IC DELAY LINE 5TAP 500NS 8UMAX |
1,383 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 100 ns | 500ns | 1 | 100ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LZ-50+TIC DELAY LINE 5TAP 50NS 8SOIC |
7,754 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 5 | Nonprogrammable | 10 ns | 50ns | 1 | 10ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
SY89296UTGIC DELAY LN 1024TAP PROG 32TQFP |
453 |
|
Datasheet |
Precision Edge® | 32-TQFP | Tray | Active | 1024 | Programmable | 10 ps | 3.2ns ~ 14.8ns | 1 | 3.2ns | 2.375V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 32-TQFP (7x7) |
|

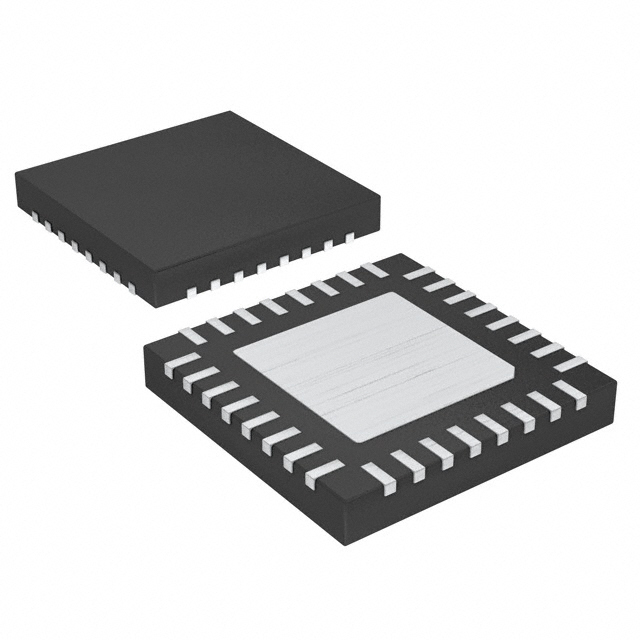

MC100EP196BMNGIC DELAY LINE 1024TAP PROG 32QFN |
1,845 |
|
Datasheet |
100EP | 32-VFQFN Exposed Pad | Bulk | Active | 1024 | Programmable | 10 ps | 2.5ns ~ 13ns | 1 | 2.5ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 32-QFN (5x5) |
|
DS1110S-50+IC DELAY LINE 10TAP 50NS 16SOIC |
139 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | 10 | Nonprogrammable | 5 ns | 50ns | 1 | 5ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1110S-500+IC DELAY LINE 10TAP 500NS 16SOIC |
3,057 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | 10 | Nonprogrammable | 50 ns | 500ns | 1 | 50ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1135LZ-30+IC DELAY LINE 30NS 8SOIC |
125 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | - | 30ns | 3 | 30ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1135LZ-10+IC DELAY LINE 10NS 8SOIC |
1,605 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | - | 10ns | 3 | 10ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LTC6994IS6-1#WTRMPBFTIMERBLOX: DELAY BLOCK/ DEBOUNCE |
990 |
|
Datasheet |
TimerBlox® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | 8 | Programmable | - | 1µs ~ 33.6s | 1 | - | 2.25V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
