Delay Lines
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Number of Taps/Steps | Function | Tap Increment | Available Total Delays | Number of Independent Delays | Delay to 1st Tap | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1135U-15+IC DELAY LINE 15NS 8UMAX |
1,482 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | - | Multiple, NonProgrammable | - | 15ns | 3 | 15ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100U-45+IC DELAY LINE 5TAP 45NS 8UMAX |
1,921 |
|
Datasheet |
* | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
DS1135LU-15+IC DELAY LINE 15NS 8UMAX |
4,162 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | - | Multiple, NonProgrammable | - | 15ns | 3 | 15ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
DS1020S-25+T&RIC DEL LN 256TAP 73.75NS 16SOIC |
2,045 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 256 | Programmable | 250 ps | 73.75ns | 1 | 10ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1135U-8+T&RIC DELAY LINE 8NS 8UMAX |
4,740 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 8ns | 3 | 8ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-20+T&RIC DELAY LINE 20NS 8UMAX |
4,567 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 20ns | 3 | 20ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-15+T&RIC DELAY LINE 15NS 8UMAX |
3,613 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 15ns | 3 | 15ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-75+T&RIC DELAY LINE 5TAP 75NS 8UMAX |
3,364 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 5 | Nonprogrammable | 15 ns | 75ns | 1 | 15ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-20+T&RIC DELAY LINE 20NS 8UMAX |
4,984 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 20ns | 3 | 20ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-15+T&RIC DELAY LINE 15NS 8UMAX |
1,830 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 15ns | 3 | 15ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-45+T&RIC DELAY LINE 5TAP 45NS 8UMAX |
1,195 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 5 | Nonprogrammable | 9 ns | 45ns | 1 | 9ns | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-12+T&RIC DELAY LINE 12NS 8UMAX |
3,486 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 12ns | 3 | 12ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-10+T&RIC DELAY LINE 10NS 8UMAX |
4,848 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 10ns | 3 | 10ns | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-10+T&RIC DELAY LINE 10NS 8UMAX |
4,780 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | - | 10ns | 3 | 10ns | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|

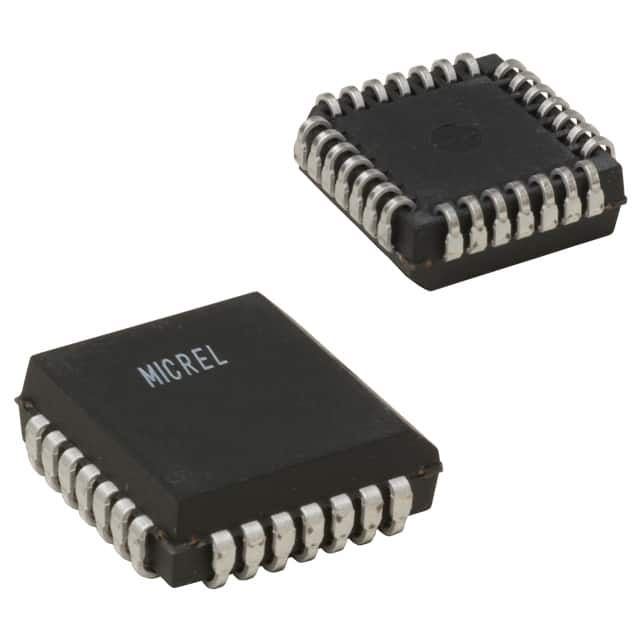

SY604JZIC DELAY LINE 255TAP PROG 28PLCC |
4,358 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | 255 | Programmable | 15.7 ps | 4ns ~ 40ns | 1 | 4ns | 4.2V ~ 5.7V | 0°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.48x11.48) |
|
|
DS1010S-50+IC DELAY LINE 10TAP 50NS 16SOIC |
2,450 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 10 | Nonprogrammable | 5 ns | 50ns | 1 | 5ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1010S-50+T&RIC DELAY LINE 10TAP 50NS 16SOIC |
2,176 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 10 | Nonprogrammable | 5 ns | 50ns | 1 | 5ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|

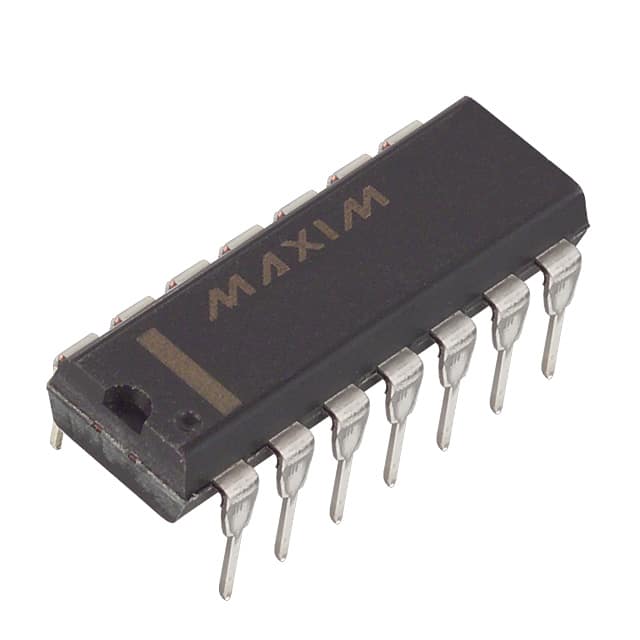

DS1013-100+IC DELAY LINE 100NS 14DIP |
2,531 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | - | Multiple, NonProgrammable | - | 100ns | 3 | 100ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
|
DS1020S-100+IC DELAY LN 256TAP 265NS 16SOIC |
1,126 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 256 | Programmable | 1 ns | 265ns | 1 | 10ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1020S-15+IC DEL LN 256TAP 48.25NS 16SOIC |
1,038 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 256 | Programmable | 150 ps | 48.25ns | 1 | 10ns | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
