Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Frequency Range	Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Rating (Amps)	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Style	Size / Dimension	Height - Seated (Max)	Termination Style
PA3206NL CURR XFMR ROGOWSKI COIL 40A CHAS Pulse Electronics	10,644	-	RFQ Sell Excess Inventory	Datasheet	Sidewinder®, PA32XXNL	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	1.14 mH	-	Rogowski Coil	40 A	-	54Ohm Max	-	Chassis Mount	1.181" L x 0.563" W (30.00mm x 14.30mm)	1.220" (31.00mm)	Wire Leads
PE-51718NL CURR SENSE XFMR 20A T/H Pulse Electronics	109	-	RFQ Sell Excess Inventory	Datasheet	THT	Tray	Active	20kHz ~ 200kHz	Invasive	20 mH	-	-	20 A	100CT:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.670" L x 0.390" W (17.01mm x 9.90mm)	0.800" (20.32mm)	PC Pin
PA3202NL CURR XFMR ROGOWSKI 200A CHAS Pulse Electronics	755	-	RFQ Sell Excess Inventory	Datasheet	Sidewinder®, PA32XXNL	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	1.75 mH	-	Rogowski Coil	200 A	-	54Ohm Max	-	Chassis Mount	1.669" L x 1.587" W (42.40mm x 40.30mm)	0.580" (14.73mm)	Wire Leads
P0581NL CURR SENSE XFMR 200:1:1 34A T/H Pulse Electronics	112	-	RFQ Sell Excess Inventory	Datasheet	THT	Tray	Active	50kHz ~ 500kHz	Invasive	76 mH	-	200:1:1	34 A	-	2.8Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810" L x 0.580" W (20.57mm x 14.73mm)	0.750" (19.05mm)	PC Pin
T60404E4622X501 CURR SENSE XFMR 2000:1 20A TH VACUUMSCHMELZE	10,079	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	110 H	-	1:2000	20 A	2000:1	126Ohm	-	Through Hole	0.965" L x 0.484" W (24.50mm x 12.30mm)	0.994" (25.25mm)	PC Pin

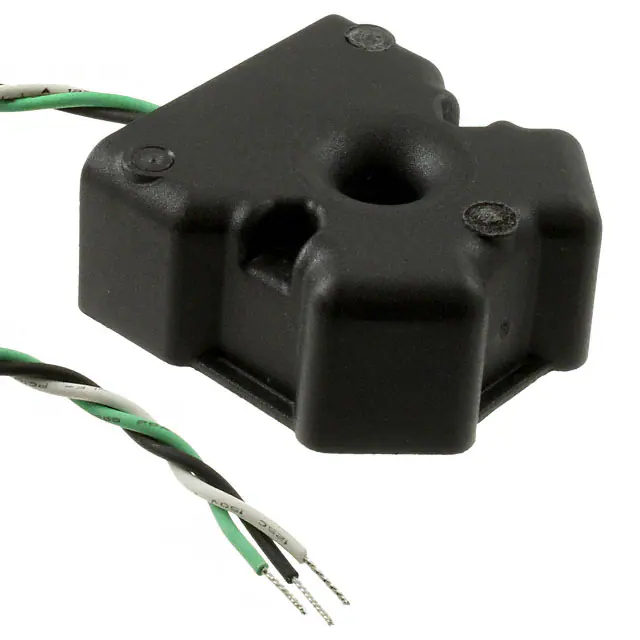

PA3208NL CURR XFMR ROGOWSKI 100A CHAS Pulse Electronics	543	-	RFQ Sell Excess Inventory	Datasheet	Sidewinder®, PA32XXNL	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	1.14 mH	-	Rogowski Coil	100 A	-	54Ohm Max	-	Chassis Mount	1.205" L x 1.189" W (30.60mm x 30.20mm)	0.580" (14.73mm)	Wire Leads
PAS6322.150NLT CURR SENSE XFMR 1:150 50A SMD Pulse Electronics	261	-	RFQ Sell Excess Inventory	Datasheet	PAS6322.XXXNLT	Tape & Reel (TR)	Active	20kHz ~ 1MHz	Invasive	10 mH	-	1:150	50 A	-	0.5mOhm Primary, 6Ohm Secondary Max	-	Surface Mount	0.122" L x 0.252" W (3.10mm x 6.40mm)	0.472" (12.00mm)	Gull Wing
PAS6322.100NLT CURR SENSE XFMR 1:100 50A SMD Pulse Electronics	516	-	RFQ Sell Excess Inventory	Datasheet	PAS6322.XXXNLT	Tape & Reel (TR)	Active	20kHz ~ 1MHz	Invasive	4.5 mH	-	1:100	50 A	-	0.5mOhm Primary, 2.6Ohm Secondary Max	-	Surface Mount	0.122" L x 0.252" W (3.10mm x 6.40mm)	0.029" (0.73mm)	Gull Wing
PAS6322.050NLT CURR SENSE XFMR 1:50 50A SMD Pulse Electronics	194	-	RFQ Sell Excess Inventory	Datasheet	PAS6322.XXXNLT	Tape & Reel (TR)	Active	20kHz ~ 1MHz	Invasive	1.1 mH	-	1:50	50 A	-	0.5mOhm Primary, 600mOhm Secondary Max	-	Surface Mount	0.122" L x 0.252" W (3.10mm x 6.40mm)	0.029" (0.73mm)	Gull Wing
7492540100 CURR SENSE XFMR 1:100 40A SMD Würth Elektronik	1,028	-	RFQ Sell Excess Inventory	Datasheet	MID-CST	Tape & Reel (TR)	Active	1MHz	Invasive	5.6 mH	248Vµs	1:100	40 A	-	0.28mOhm Primary, 805mOhm Secondary	AEC-Q200	Surface Mount	0.570" L x 0.524" W (14.48mm x 13.30mm)	0.413" (10.50mm)	Gull Wing
AZ-0500 CURR SENSE XFMR 25A IN-LINE Talema Group LLC	601	-	RFQ Sell Excess Inventory	Datasheet	AZ	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	-	-	500:1	25 A	-	18Ohm Primary	-	Free Hanging (In-Line)	0.748" Dia (19.00mm)	0.453" (11.50mm)	Wire Leads
PAS6322.200NLT CURR SENSE XFMR 1:20 50A SMD Pulse Electronics	872	-	RFQ Sell Excess Inventory	Datasheet	PAS6322.XXXNLT	Tape & Reel (TR)	Active	20kHz ~ 1MHz	Invasive	17.5 mH	-	1:200	50 A	-	0.5mOhm Primary, 12Ohm Secondary Max	-	Surface Mount	0.122" L x 0.252" W (3.10mm x 6.40mm)	0.029" (0.73mm)	Gull Wing
CST306-3T CURR SENSE XFMR 25A T/H Triad Magnetics	2,574	-	RFQ Sell Excess Inventory	Datasheet	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	55 mH	2000VµS	-	25 A	200CT:1	3.75Ohm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin

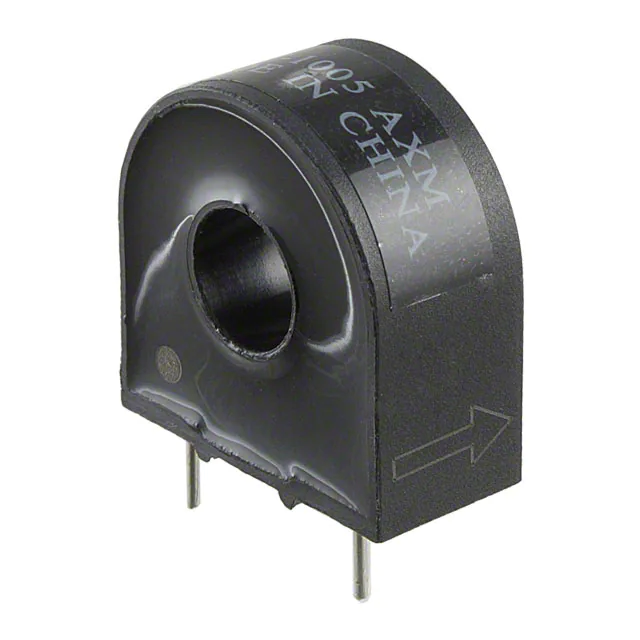

CST-1005 CURR SENSE XFMR 5A T/H Triad Magnetics	1,665	-	RFQ Sell Excess Inventory	Datasheet	CST	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	5 A	1000:1	40Ohm	-	Through Hole	0.925" L x 0.472" W (23.50mm x 12.00mm)	0.976" (24.80mm)	PC Pin
CST306-2A CURR SENSE XFMR 25A T/H Triad Magnetics	4,594	-	RFQ Sell Excess Inventory	Datasheet	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	14 mH	1000VµS	-	25 A	100:1	1.55Ohm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
AC1025 CURR SENSE XFMR 25A T/H Talema Group LLC	1,194	-	RFQ Sell Excess Inventory	Datasheet	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	25 A	1000:1	48Ohm	-	Through Hole	1.189" L x 0.563" W (30.20mm x 14.30mm)	1.189" (30.20mm)	PC Pin
AC1040 CURR SENSE XFMR 40A T/H Talema Group LLC	166	-	RFQ Sell Excess Inventory	Datasheet	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	40 A	1000:1	49.3Ohm	-	Through Hole	1.374" L x 0.563" W (34.90mm x 14.30mm)	1.374" (34.90mm)	PC Pin
CST-1020 CURR SENSE XFMR 20A T/H Triad Magnetics	1,304	-	RFQ Sell Excess Inventory	Datasheet	CST	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	20 A	1000:1	40Ohm	-	Through Hole	0.925" L x 0.472" W (23.50mm x 12.00mm)	0.976" (24.80mm)	PC Pin
CST206-1T CURR SENSE XFMR 110A T/H Triad Magnetics	1,435	-	RFQ Sell Excess Inventory	Datasheet	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	14 mH	2000VµS	-	110 A	100:1	580mOhm Max	-	Through Hole	1.075" L x 0.400" W (27.31mm x 10.16mm)	1.225" (31.12mm)	PC Pin
CT-1030 CURR SENSE XFMR 30A T/H Amgis, LLC	9,052	-	RFQ Sell Excess Inventory	Datasheet	CT	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	30 A	1000:1	48Ohm	-	Through Hole	1.189" L x 0.563" W (30.20mm x 14.30mm)	1.189" (30.20mm)	PC Pin
