| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Programmable | Number of Bits | Settling Time | Output Type | Differential Output | Number of D/A Converters | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Mounting Style | Architecture | Supplier Device Package | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9102BCPZRL7IC DAC 14BIT A-OUT 32LFCSP |
1,500 |
|
Datasheet |
TxDAC® | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 14 | 31.2ns (Typ) | Current - Unbuffered | Yes | 1 | SPI | External, Internal | 1.7V ~ 3.6V | 1.7V ~ 3.6V | ±2, ±1.4 | Surface Mount | Segmented DAC | 32-LFCSP (5x5) | -40°C ~ 85°C | - | - |
|
DAC7624UIC DAC 12BIT V-OUT 28SOIC |
245 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | 12 | 10µs | Voltage - Buffered | No | 4 | Parallel | External | ±5V | 5V | ±2 (Max), ±1 (Max) | Surface Mount | R-2R | 28-SOIC | -40°C ~ 85°C | - | - |
|
PM7226FPIC DAC 8BIT QUAD OUTPUT 20DIP |
4,618 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 20-PDIP | - | - | - |
|
|
PM7226HPZIC DAC 8BIT QUAD VOLT OUT 20DIP |
1,548 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 20-PDIP | - | - | - |
|
|
PM7226HPIC DAC 8BIT QUAD VOLT OUT 20-DIP |
666 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 20-PDIP | - | - | - |
|
MAX507BENG+IC DAC 12BIT V-OUT 24DIP |
1,518 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Bulk | Obsolete | Not Verified | 12 | 5µs | Voltage - Buffered | No | 1 | Parallel | Internal | ±11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | Through Hole | R-2R | 24-PDIP | -40°C ~ 85°C | - | - |
|
AD7245AAPIC DAC 12BIT V-OUT 28PLCC |
2,428 |
|
Datasheet |
DACPORT® | 28-LCC (J-Lead) | Tube | Obsolete | Not Verified | 12 | 7µs | Voltage - Buffered | No | 1 | Parallel | Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | Surface Mount | R-2R | 28-PLCC (11.51x11.51) | -40°C ~ 85°C | - | - |
|
HI5741BIB-TIC DAC 14BIT A-OUT 28SOIC |
1,600 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | Not Verified | 14 | 20ns (Typ) | Current - Unbuffered | Yes | 1 | Parallel | External, Internal | 5V | ±5V | ±1, ±0.5 | Surface Mount | Current Source, R-2R | 28-SOIC | -40°C ~ 85°C | - | - |
|
HI5741BIBS2503DAC, PARALLEL, WORD INPUT LOADI |
634 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AD7849ANZIC DAC 14BIT V-OUT 20DIP |
2,588 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 14 | 10µs (Typ) | Voltage - Buffered | No | 1 | SPI | External | ±14.25V ~ 15.75V | 5V | ±5 (Max), ±0.25 (Max) | Through Hole | String DAC | 20-PDIP | -40°C ~ 85°C | - | - |
|
DAC8562EPIC DAC 12BIT V-OUT 20DIP |
3,602 |
|
Datasheet |
DAC8562 | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 12 | 16µs (Typ) | Voltage - Buffered | No | 1 | Parallel | Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±0.5, ±1 | Through Hole | R-2R | 20-DIP | -40°C ~ 85°C | - | - |
|
ADV101KN80IC DAC 8BIT A-OUT 40DIP |
1,095 |
|
Datasheet |
ADV101 | 40-DIP (0.600", 15.24mm) | Bulk | Obsolete | Not Verified | 8 | - | Current - Unbuffered | No | 3 | Parallel | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±1 (Max), ±0.5 (Max) | Through Hole | Pipelined | 40-PDIP | 0°C ~ 70°C | - | - |
|
DAC100CCQ7IC DAC 10BIT A-OUT 16CERDIP |
1,025 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 10 | 375ns | Current - Unbuffered | No | 1 | - | External, Internal | ±6V ~ 18V | 4.5V, 4.75V ~ 18V | ±0.5 (Max) | Through Hole | - | 16-CERDIP | -55°C ~ 125°C | - | - |
|

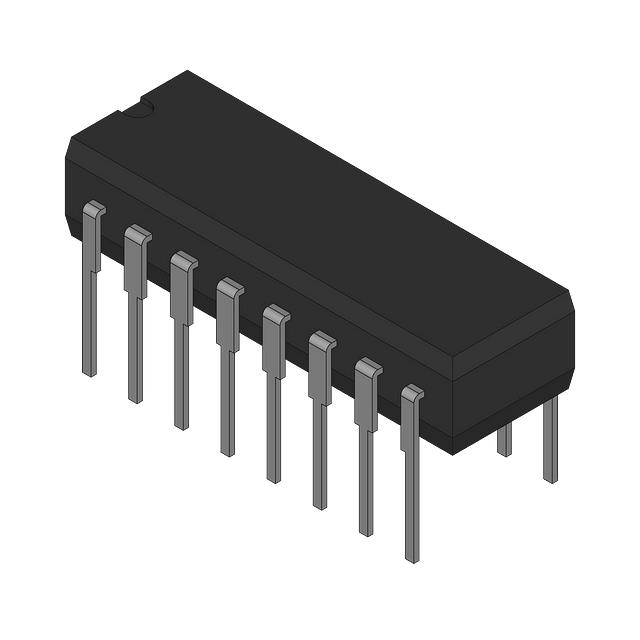

DAC100BIDDQ7IC DAC 10BIT A-OUT 16CERDIP |
412 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 10 | 375ns | Current - Unbuffered | No | 1 | - | External, Internal | ±6V ~ 18V | ±6V ~ 18V | ±0.5 (Max) | Through Hole | - | 16-CERDIP | -55°C ~ 125°C | - | - |
|
AD5678BRUZ-1REEL7IC DAC 12/16BIT V-OUT 14TSSOP |
4,656 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 12, 16 | 10µs | Voltage - Buffered | No | 8 | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | Surface Mount | String DAC | 14-TSSOP | -40°C ~ 105°C | - | - |
|
AD7845BRIC DAC 12BIT MULT LC2MOS 24-SOIC |
2,559 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 24-SOIC | - | - | - |
|
PM7524BRC/883CIC DAC 8BIT A-OUT 20CLCC |
984 |
|
Datasheet |
- | 20-CLCC | Bulk | Active | Not Verified | 8 | 350ns | Current - Unbuffered | Yes | 1 | Parallel | External | 5V, 15V | 5V, 15V | ±0.025 | Surface Mount | Multiplying DAC, R-2R | 20-CLCC (9x9) | -55°C ~ 125°C | - | - |
|
AD7243BQIC DAC 12BIT V-OUT 16CDIP |
2,518 |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 12 | 10µs | Voltage - Buffered | No | 1 | SPI | External, Internal | ±10.8V ~ 16.5V | - | ±0.5 (Max), ±0.9 (Max) | Through Hole | R-2R | 16-CERDIP | -40°C ~ 85°C | - | - |
|
|
AD7545LNIC DAC 12BIT A-OUT 20DIP |
1,622 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 2µs | Current - Unbuffered | No | 1 | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | Through Hole | R-2R | 20-PDIP | 0°C ~ 70°C | - | - |
|
DAC8218SPAGRIC DAC 14BIT V-OUT 64TQFP |
3,555 |
|
Datasheet |
- | 64-TQFP | Tape & Reel (TR) | Active | Not Verified | 14 | 15µs (Typ) | Voltage - Buffered | No | 8 | SPI | External | ±4.5V ~ 18V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | Surface Mount | String DAC | 64-TQFP (10x10) | -40°C ~ 105°C | - | - |
